8. Next are the (2-3) sets of bearing flange assemblies, one inner and two outer if equipped with the optional
Bearing Extension Kit.
A. If the Mudd-Ox is not equipped with relocated grease zerks: Move to step #9.
B. If the Mudd-Ox is equipped with relocated grease zerks: There will be (1) inner grease hose and (1-2) outers.

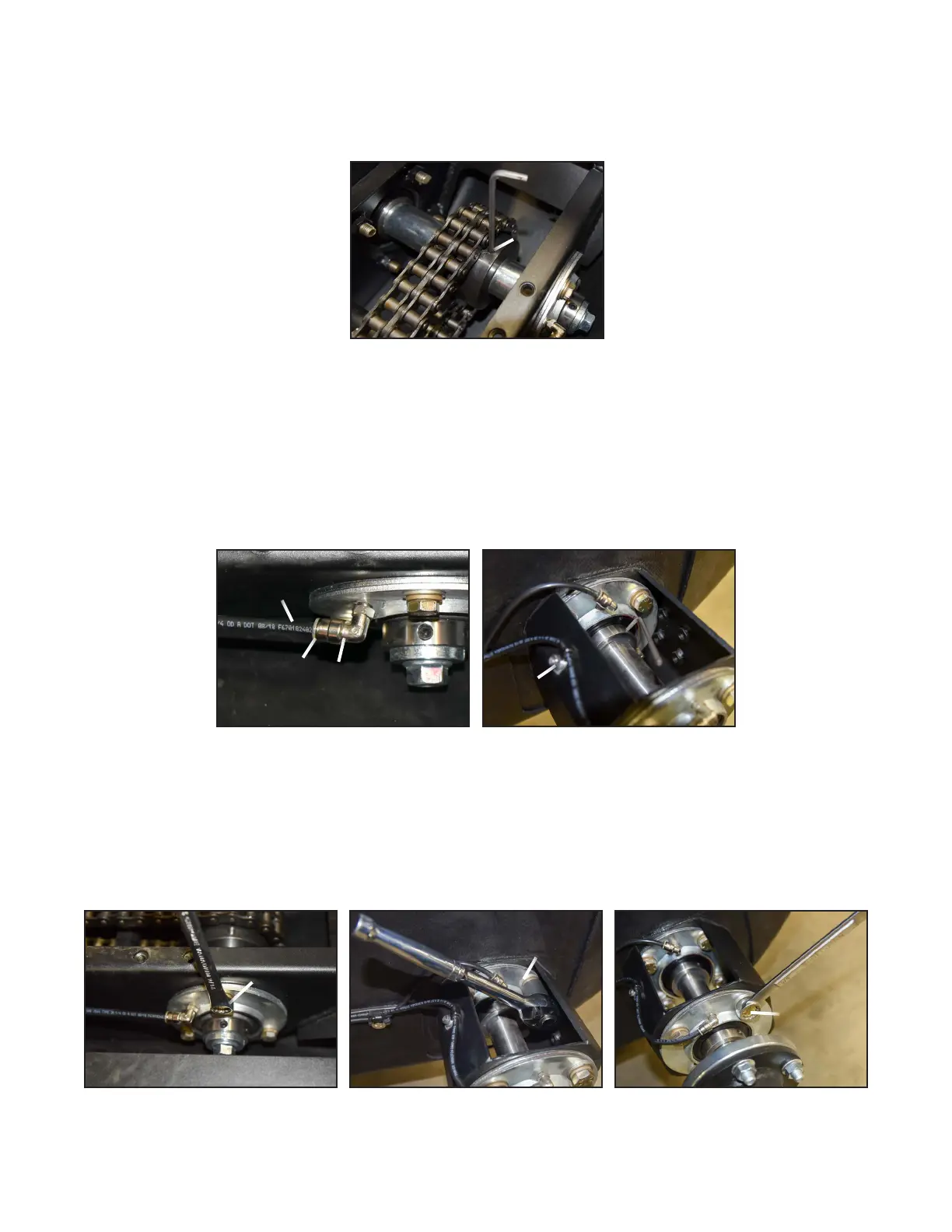

To remove, simply push on part “I” in Figure-10 into the elbow, “J”, to release grip on the hose “K”. Then pull
out the hose. If applicable, remove the bolt on the outer bearing box (L in Figure-11).
Axles Cont.
7. For each sprocket on the assembly, there are also (2) set screws each that must be loosened with a 3/16” Allen
wrench. (2-4) in total depending on the number of sprockets on the axle (H in Figure-9).
Figure-9
Sprocket Allen Screws
HH
Figure-11
Hose Bracket
Figure-10
Grease Hose
II
LL
9. The last remaining bolts are on the bearing flanges themselves. There are (3) bolts on the inner flange assembly
and (4) bolts per outer flange assembly. Use a 9/16” wrench or socket to remove the inner bolts (M in Figure-12)
and 3/4” for outer bolts (N in Figure-13, 14).
Figure-13
Outer Bearing
Figure-12
Inner Bearing Flange
Figure-14
Optional Bearing Extension
MM
NN
NN
JJ
KK
