Mudd-Ox XL - Page 53

53
GG
HH
II
JJ
Number Amp Rating Wire Color Function
1 * Pink/Black Aux
2 * Pink/Black Aux
3 * Brown Aux
4 * Grey Aux
5 3 Yellow/Black Dome Light
6 7.5 Brown/White Bilge Pump
7 30 Black/Blue 12V Power
8 5 Red/Purple Winch Contactor
Number Amp Rating Wire Color Function
1 3 Blue/Red USB
2 **10 Yellow/Blue Forward/Reverse
3 **10 Pink/Blue High/Low
4 * Pink/Black Aux
5 7.5 Yellow/Red Wiper
6 30 Red/White Dash Keyed Power
7 10 Purple Heater
8 10 Green/Black Headlight/Tail Light

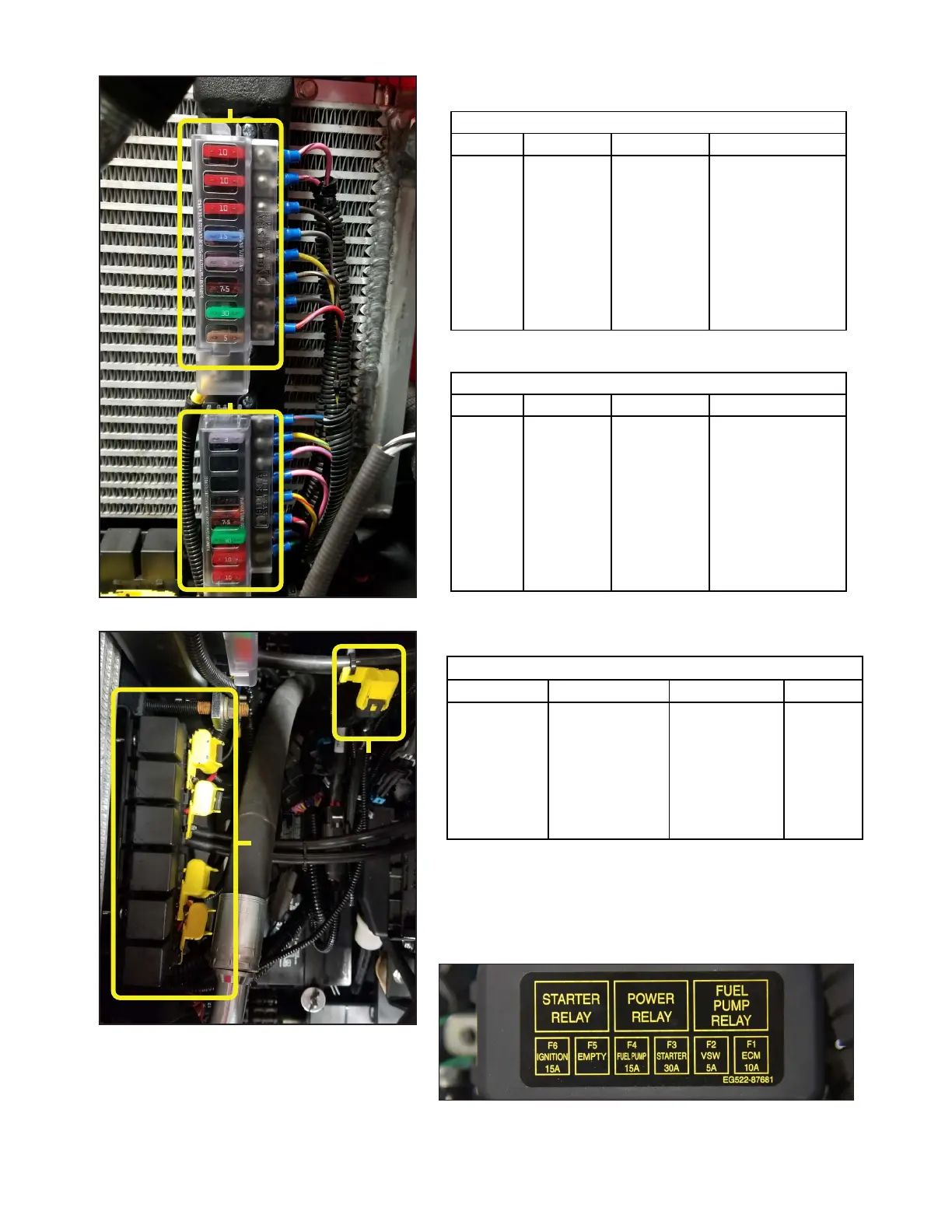

Fuse Block Upper
Fuse Block Lower
Number Relay Function Fuse Function Fuse Amp
1 Fuse Box Lower Fuse Box Lower 30
2 Fuse Box Upper Fuse Box Upper 30
3 Fan Left Fan Left 30
4 Fan Right Fan Right 30
5 Neutral Switch N/A N/A
6 Brake Switch N/A N/A
Inline Relay & Fuse Block
GG
HH
JJ
This individual fuse “D” is part of the Kubota engine har-
ness. The engine also has a fuse block on top.
Electrical Cont.
Number Amp Rating Wire Color Function
1 * Pink/Black Aux
2 * Pink/Black Aux
3 * Brown Aux
4 * Grey Aux
5 3 Yellow/Black Dome Light
6 7.5 Brown/White Bilge Pump
7 30 Black/Blue 12V Power
8 5 Red/Purple Winch Contactor
Number Amp Rating Wire Color Function
1 3 Blue/Red USB
2 **10 Yellow/Blue Forward/Reverse
3 **10 Pink/Blue High/Low
4 * Pink/Black Aux
5 7.5 Yellow/Red Wiper
6 30 Red/White Dash Keyed Power
7 10 Purple Heater
8 10 Green/Black Headlight/Tail Light
Fuse Block Upper
Fuse Block Lower
*Aux are used in conjunction with additional accessories that vary in amperage. Always replace fuses with the
same amp rating. If no accessory is installed, Aux will be left empty.
**Fuses only installed when equiped with a Steering Wheel. A standard Mudd-Ox will have no fuses or wiring to
these places.
