Relay and Fuse Location 1

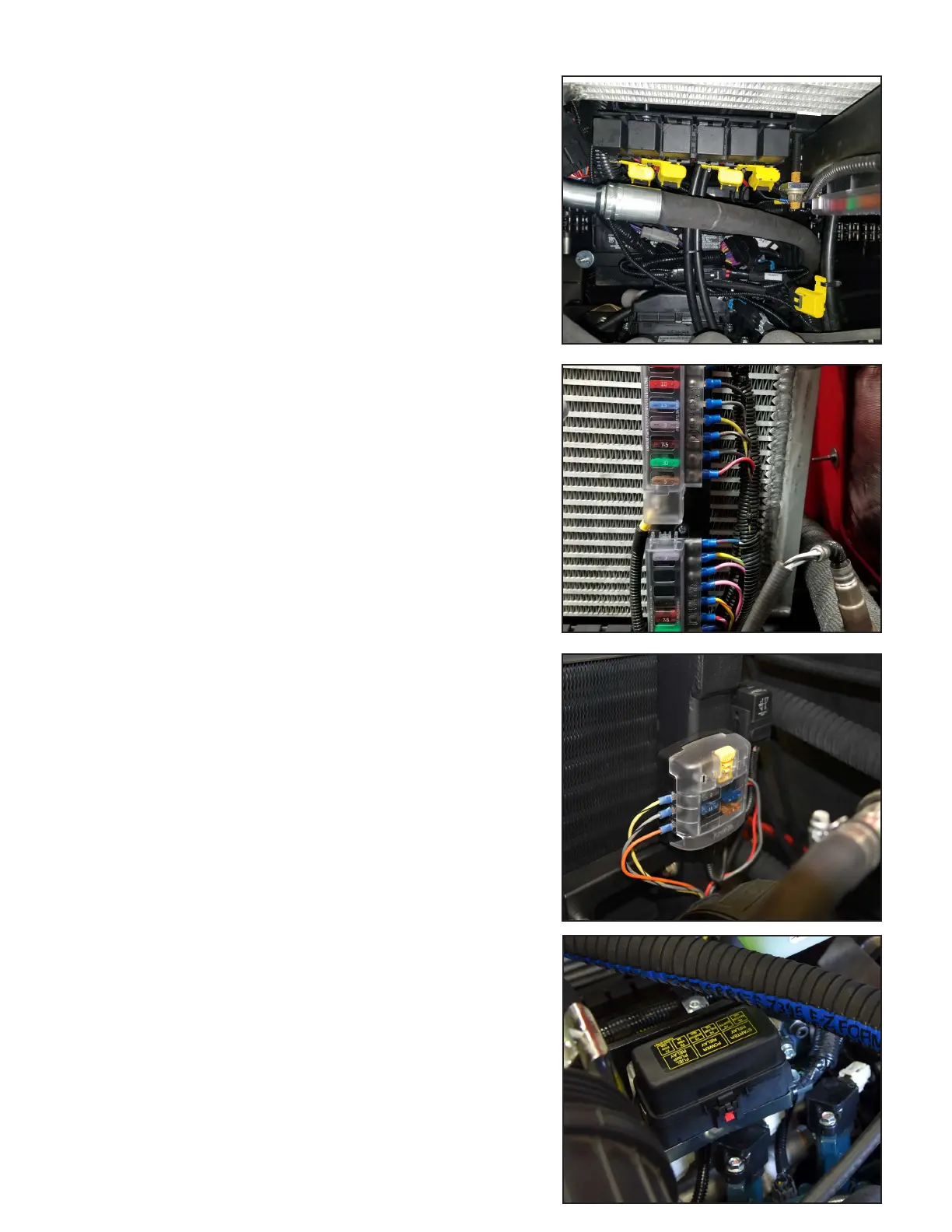

Located inside the engine compartment, next to the left side roll
bar, is a set of relays and accompaning fuses. Their respected
diagrams are on the previous page.
Location 4
On top of the Kubota engine is the engine manufacturer’s fuse
and relay box. See engine service manual for detailed informa-
tion.
Fuse & Relay Location 3 *Accessories Only
If the vehicle is equipped with accessories that require electric
power, there may be a fuse panel installed on the left side roll
bar support, near the fan. Relays may accompany the panel.
Fuse Location 2
Mounted on the left side roll bar is a set of fuse blocks. Their
respected diagrams are on the previous page.
Electrical Cont.
To Next Page
