56

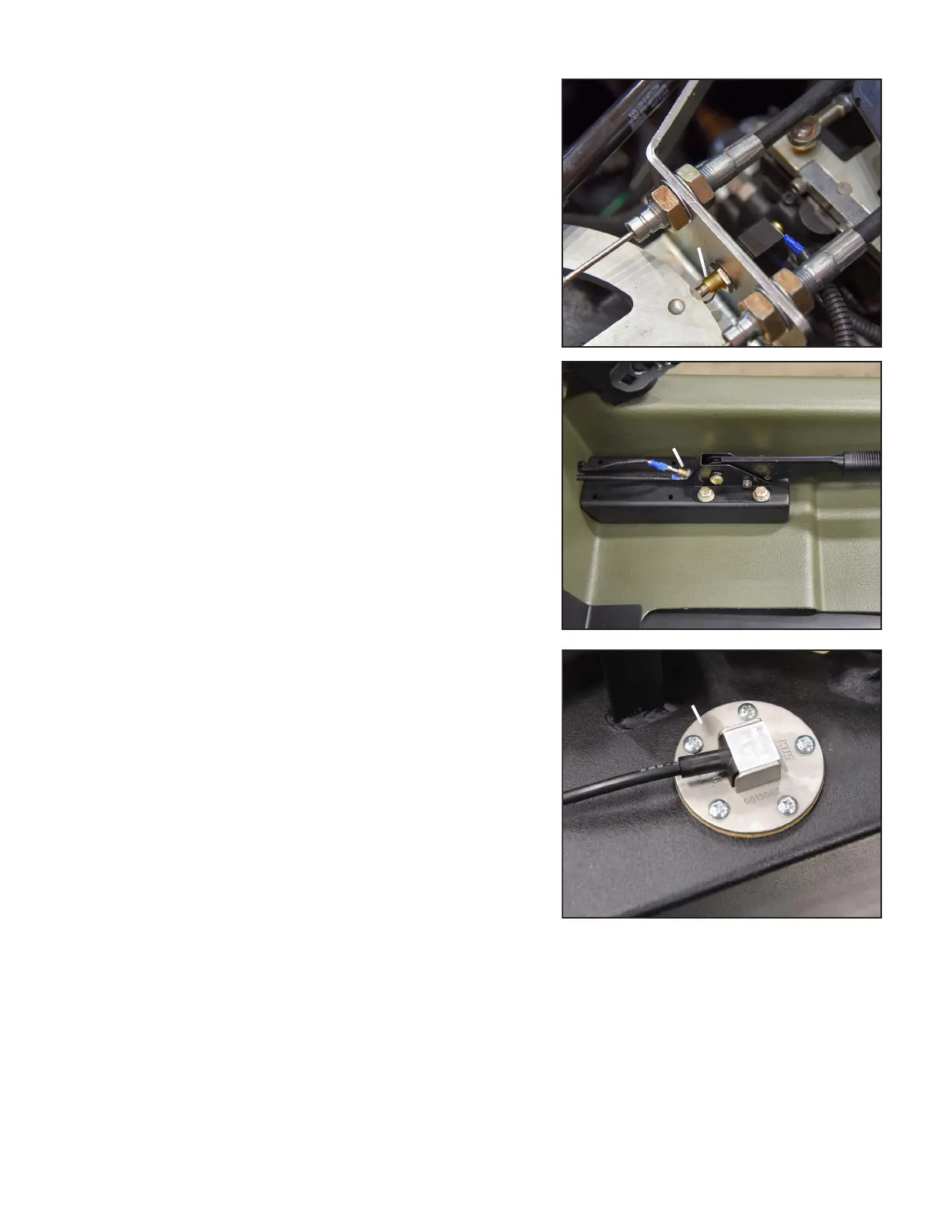

Neutral Safety Sensors
For each z-bar on the top of the hydrostatic pumps, there is a
neutral safety switch “N”. The frontmost one reads the right
control lever, and the rear reads the left.
Parking Brake Sensor
When the parking brake is engaged, the sensor “M” activates
the dash warning light. To gain access to this sensor, simply re-
move the parking brake cover.
MM
NN
Electrical Cont.
Fuel Level Sending Unit
Located directly on top of the fuel tank is the sending unit “O”.
This displays fuel level on the instrument panel.
OO
