MD-1000I / MD-2000I / MD-3000I Explanation of USB Function
3.1.1 LCD display (optional)
1 LCD display
2 LED input voltage
3 Programmable output 1 LED
4 Programmable output 2 LED
5 Bypass LED
6 UPS system fault LED
7 Select
8 Scroll up
9 Scroll down
10 Other functions
11 UPS off
12 UPS on; mute alarm

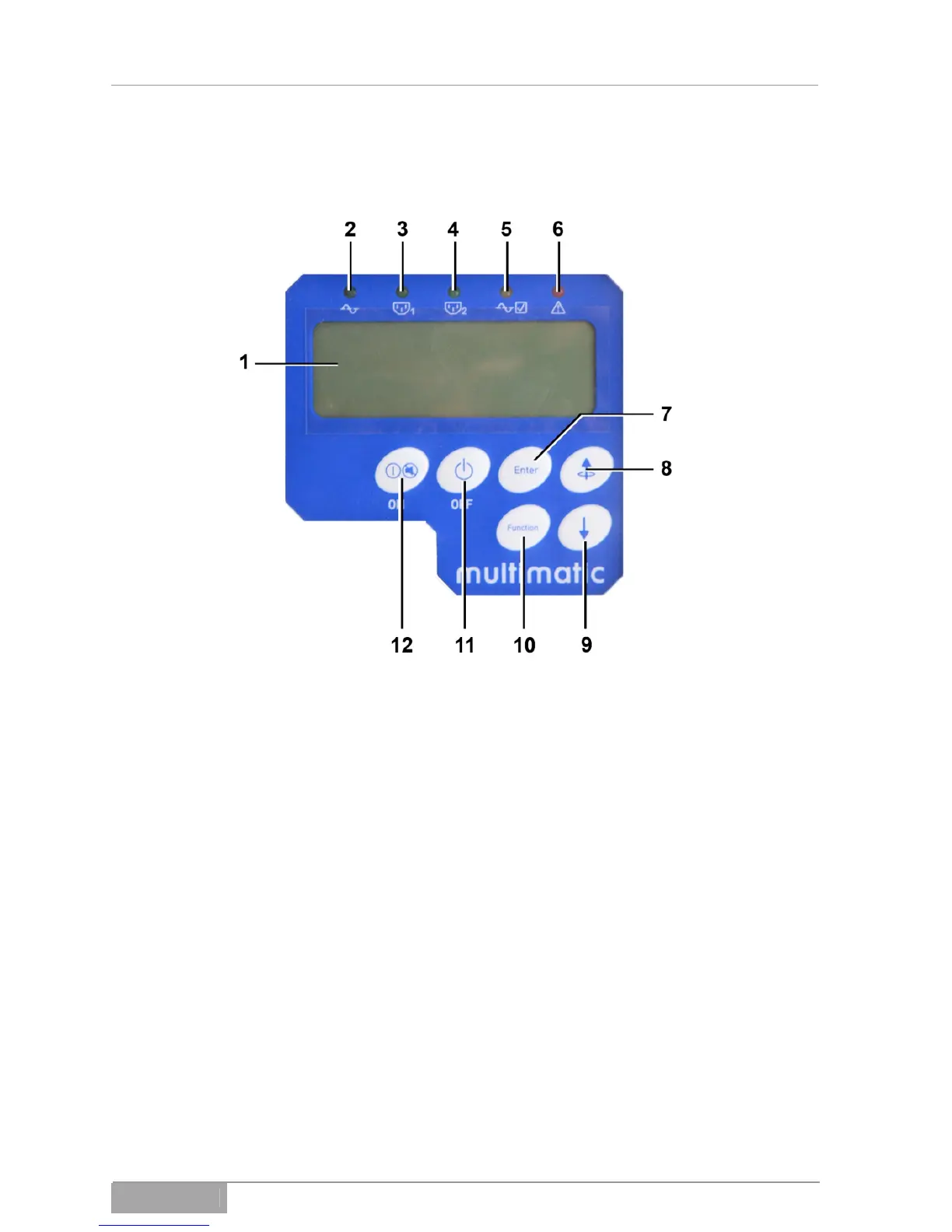

Fig 3-1 - 2 Front panel interfaces
