MD-1000I / MD-2000I / MD-3000I Explanation of USB Function
The shutdown function activates after +6~+25VDC between PIN 9 and Pin 10
is applied for 5 seconds.
Each relay contact has a load capacity of 40VDC/25mA.
Installation: random insert.
Flexible output for N.C. (normal closed) or N.O. (normal open)
Sets via the repositioning of Jumper Pin1-2 or Pin2-3 from JP1-5.
The shutdown function activates within a minute after the flow of current
ceases when Pin1-2 of both jumpers CN1 and CN6 are connected. The shut-
down function activates only from C3 via PIN9-10 when Pin2-3 of both CN1
and CN6 are closed.
3.2.7 SNMP cards (Web card)

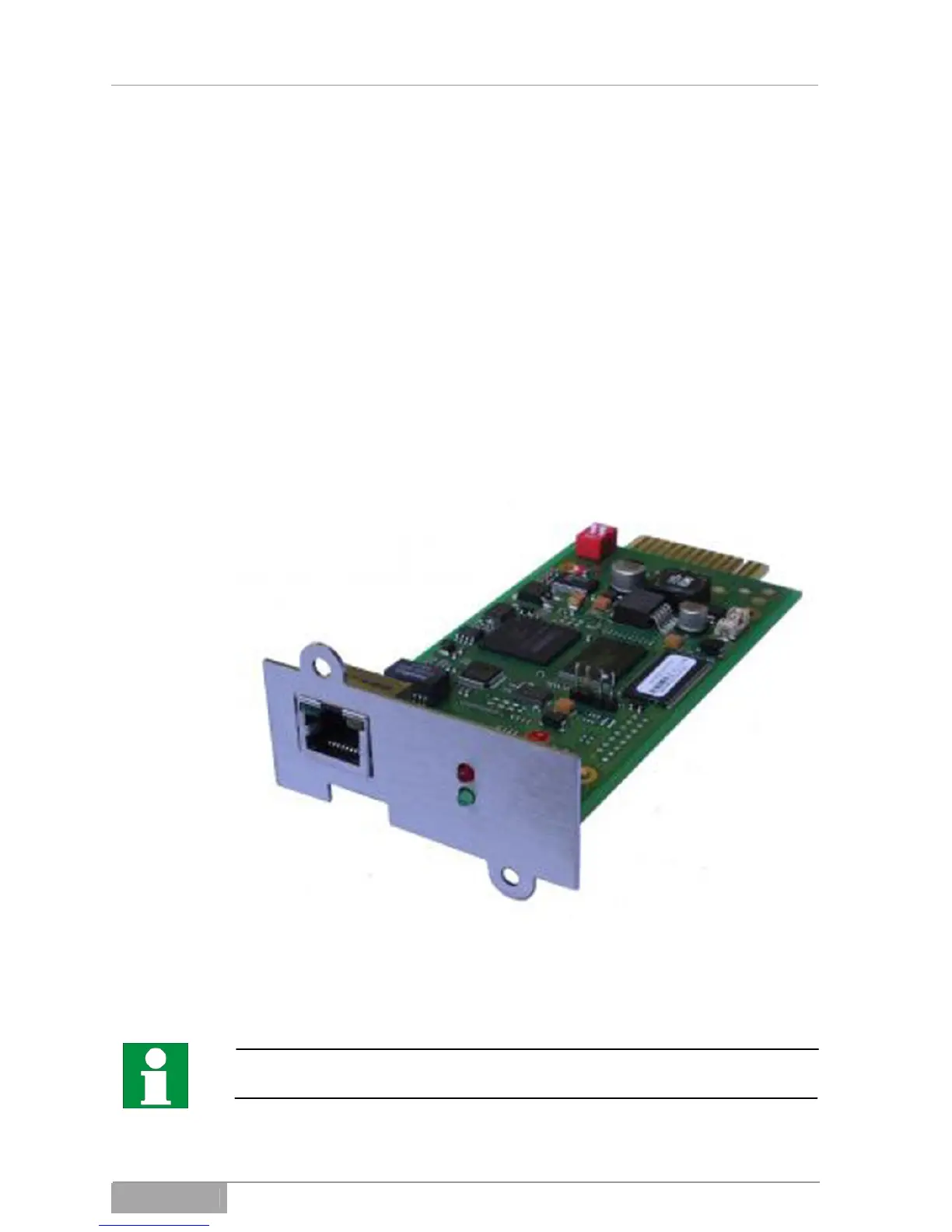

Fig. 3-2 - 7 SNMP cards (Web card)
For information about installing SNMP cards, please see the SNMP card man-
ual enclosed with the UPS documents.
3.2.8 USB port
The UPS port allows you to connect the UPS to a PC.
MD Series 37
