MD-1000I / MD-2000I / MD-3000I System Function
5.4 Inverter

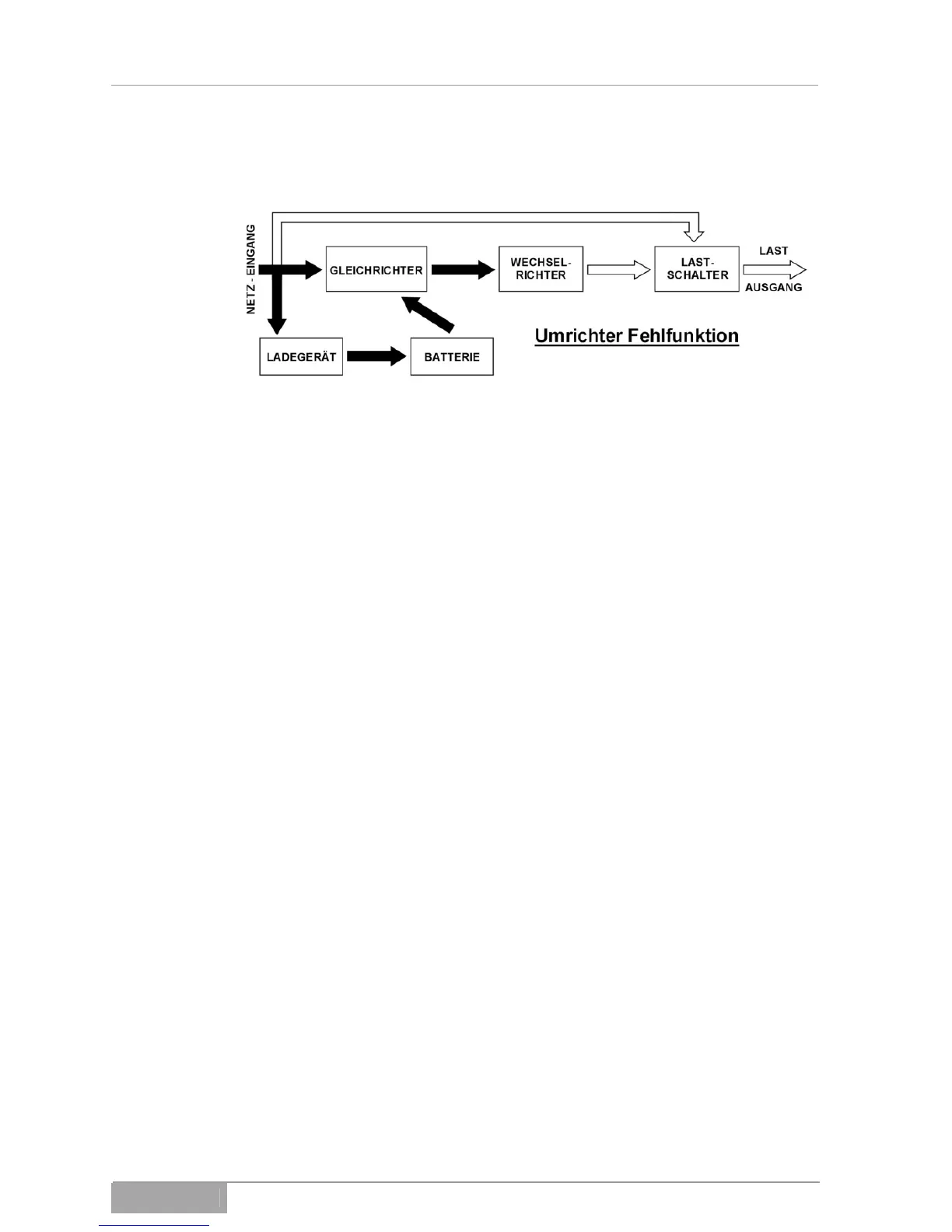

Fig. 5-4 - 1 Inverter malfunction
Output short circuit
If a short circuit occurs in the output while the connected equipment is receiv-
ing current from the inverter, the UPS automatically shuts down the inverter
and ceases supplying the equipment with power. LEDs indicate malfunction
and the audible alarm goes off. Once the short circuit has been remedied, the
UPS does not automatically start, but requires manual action to restart.
MD Series 57
