MD-1000I / MD-2000I / MD-3000I System Operation and Display

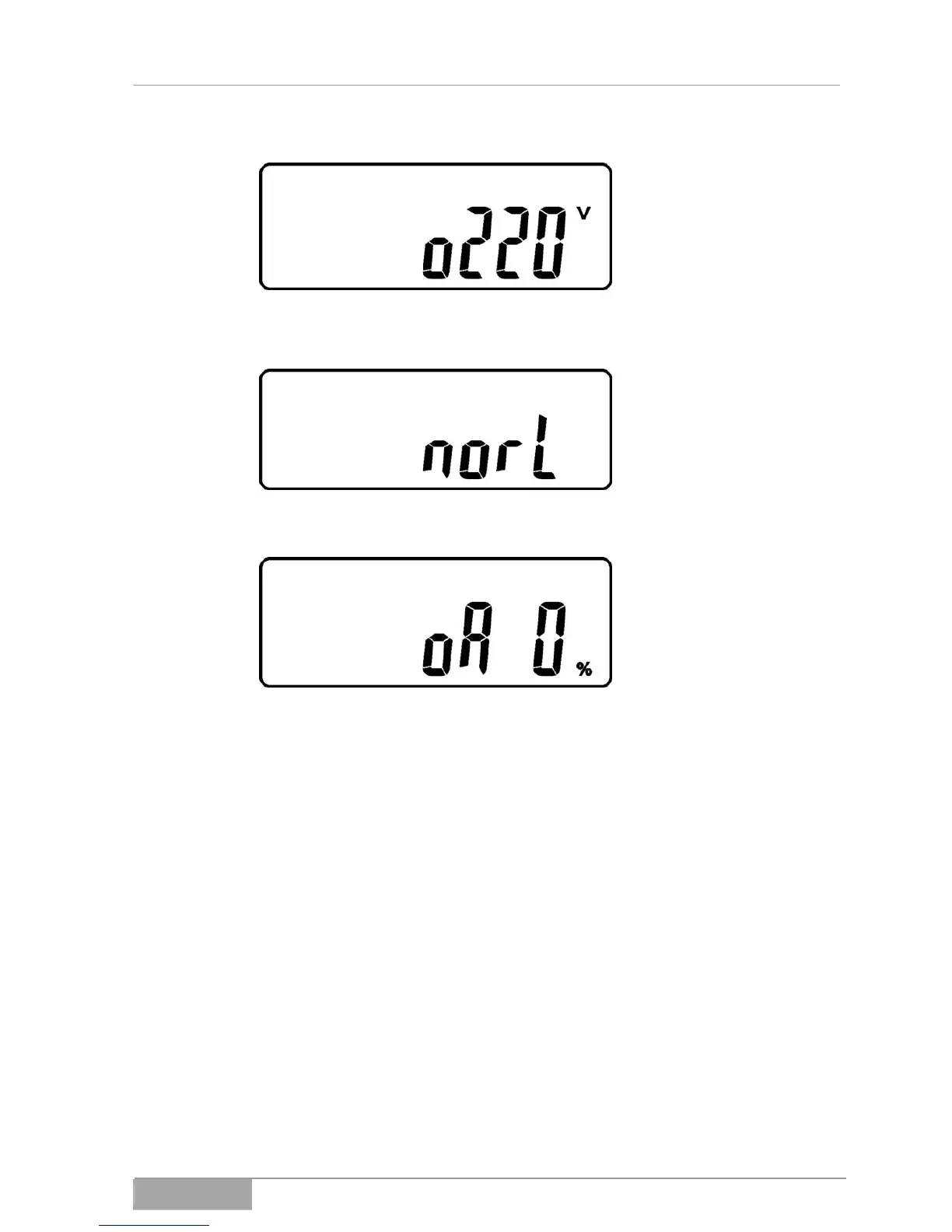

Fig. 7-3 - 12 Inverter output voltage
Fig. 7-3 - 13 UPS operating mode: Online, 50Hz or 60Hz at output
Fig. 7-3 - 14 Inverter output settings:
+1% -1%, +2% -2%, +3% -3%
MD Series 70
