Operation
Component Identication
General System Overview
The Blended Ice Machine is a self-contained dispensing
unit that allows the operator to make avor combinations
of blended ice drinks. It contains product avoring in a
reach-in enclosure, a refrigeration system and an ice
shaving machine.
The operator controls and accesses the unit using
a lighted touch screen. Icons on the Drink Selection
screen represent the primary avor combinations for
the blended ice drinks. A second screen provides drink
size options (S, M, L) and ingredient options, such as
“no yogurt.” Menu changes and additions are uploaded
using a USB mass storage device.
On-screen instructions also include operator procedures
for cleaning/sanitizing, checking inventory, replacing
product bags, selecting drink sizes and manually
preparing drinks. Managers and technicians have
access to menu/software updates, diagnostics and
other service screens.

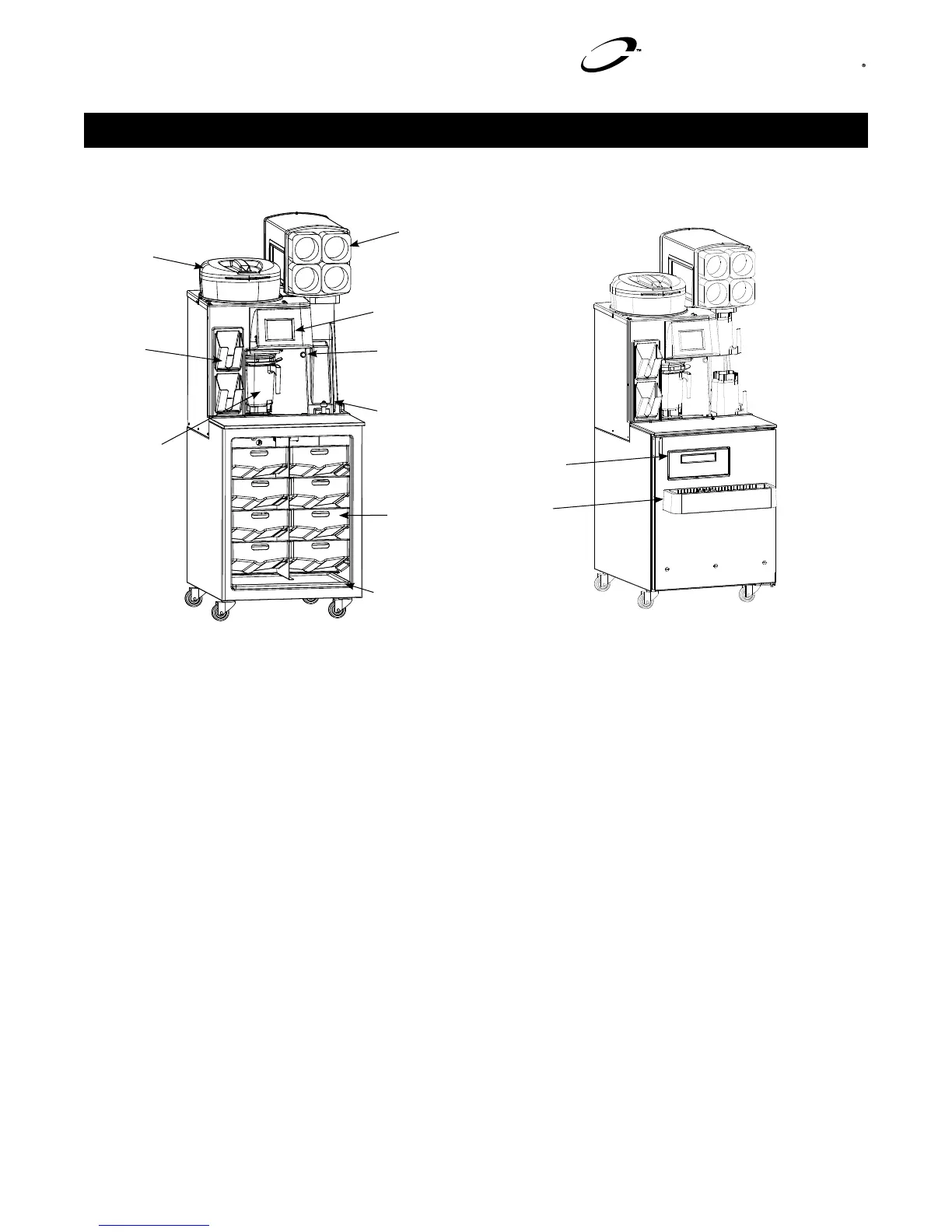

Cup
Dispenser
(1706175)
Touch
Screen
Manual Rinse
Button
Blender Rinse
Location
Product
Bins
(1706263)
Pull Out Tray
(076-CDZ-0000)
Blender Fill
Pitcher
Lid
Dispenser
(1706142)
Ice Bin Lid
(VMP00133)
Whipped
Cream Door
(000-187-0016)
Syrup Rail
(1706194)
Syrup Rail Divider
(1706195)
