Sequence of Operation
POWER-UP

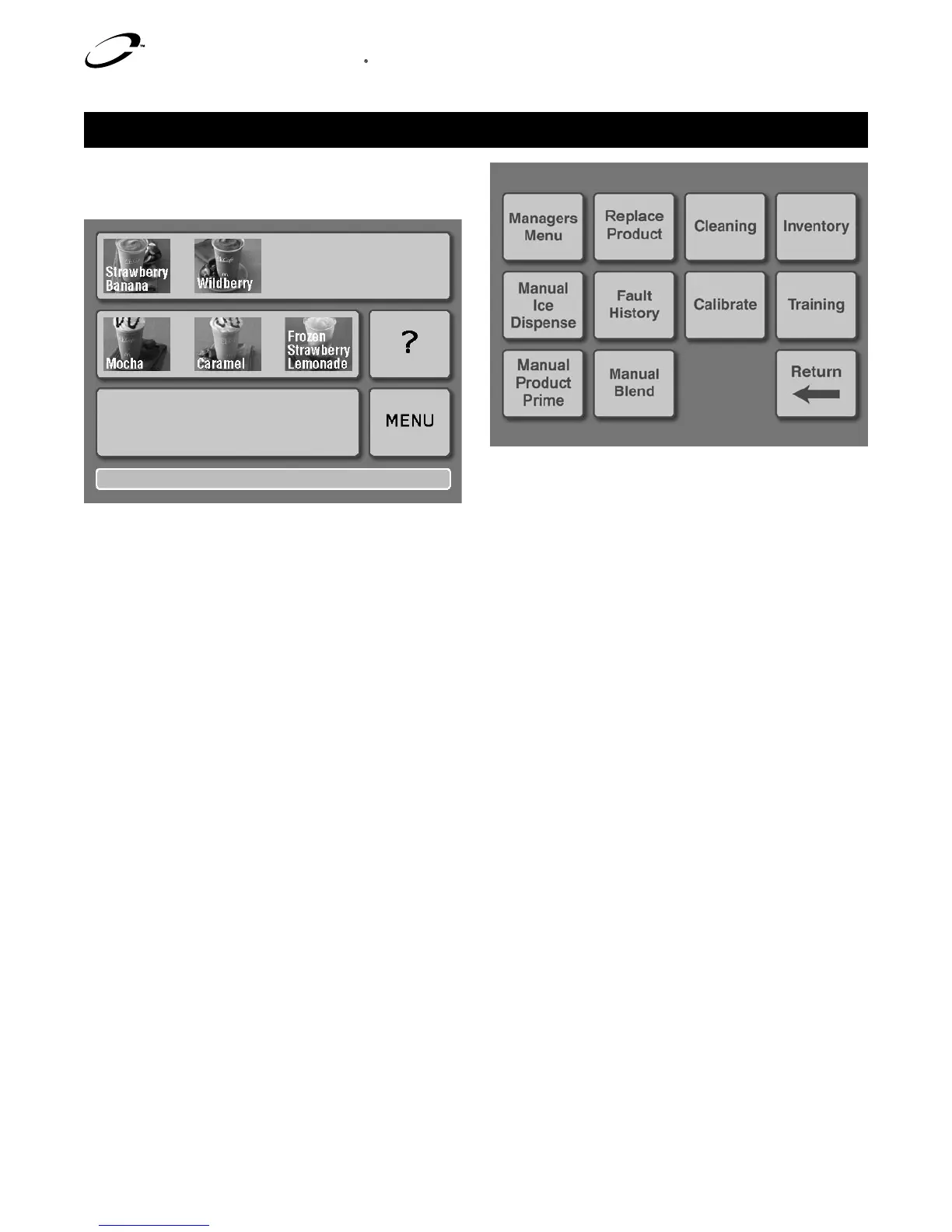

Drink Selection Touch Screen
The Drink Selection screen appears on power-up (except
where clean/sanitize limitations have been exceeded,
in which case the clean/sanitize screen appears).
Screen Icon Descriptions
Strawberry Banana, Wildberry. Mocha, etc. - Drink avor
selection buttons when chosen progress you to the Size and
Option Touch Screen
Flavor Button With A Yellow Border - If the avor uses
yogurt, yogurt has expired or the product expires in less than
24 hours or there is less than 15% left in the product bag
Flavor Button With A Red Border - Product expired, avor
selection unavailable
? - List of use and care instructions
MENU - Navigate to Menu Touch Screen
NORMAL OPERATION
After the operator presses one of the avor buttons
on the Drink Selection screen, avor and size options
appear. Subsequent to the operator selecting the avor,
a modier screen appears where the operator can elect
to modify the drink if necessary.
Next the drink preparation sequence commences. Here
the machine checks to make sure a container is in place,
measures the weight of each avoring ingredient, adds
the required shaved ice and blends the drink for the
correct time at the proper blender speed.
After the drink is poured, the operator places the blend
container in the rinse position to initiate an automatic
rinse. The Drink Selection screen re-appears.
Menu Touch Screen
All other procedures and adjustments are accessed
from the Menu screen.
Menu changes and additions are uploaded using a USB
mass storage device. Parameters include avors, drink
sizes, drink modiers and recipes.
Screen Icon Descriptions
Managers Menu - Password protected information for a
manager
Replace Product - Instructions to replace a product
Cleaning - Sanitize containers, daily and weekly cleaning
instructions
Inventory - Remaining percentage of product in each bag,
cabinet and product tubes temperature readings.
Manual Ice Dispense - Immediately ice is shaved and
dropped into the pitcher
Fault History - List of faults the machine has incurred
Calibrate - Scale adjustment instructions
Training - List of use and care instructions
Manual Product Prime - Instructions to pump product
through an individual line
Manual Blend - Immediately the blender runs, mixing the
contents of the pitcher
Return - Displays the Drink Selection Screen
Operation, continued
