PAGE 16 — MD105 RIDE-ON TROWEL • OPERATION MANUAL — REV. #0 (03/29/24)
LIFTING AND TRANSPORTING
Forklift Pockets
Another method for lifting the trowel is with the forklift
pockets. Insert forklift forks through the forklift pockets as
shown in Figure 4.

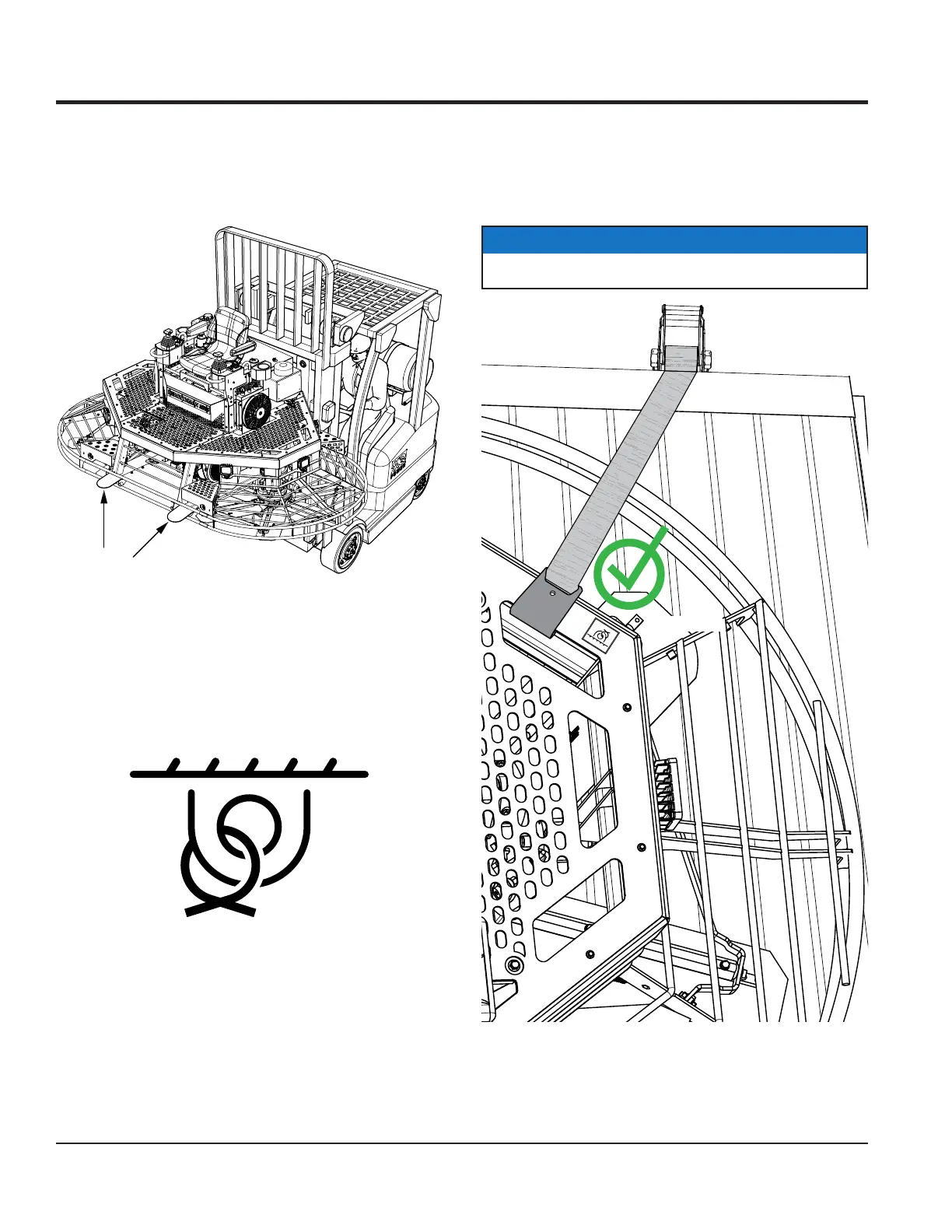

Figure 4. Lifting The Trowel (Forklift Pockets)
TRANSPORTING THE TROWEL
After the trowel has been lifted onto a atbed truck, do
the following:
1. Locate the tie-down symbols (Figure 5) on each side
of the trowel.
Figure 5. Tie-Down Symbol
FORKS
2. Attach suitable tie-down straps to the locations marked
by the tie-down symbols. Be sure to connect the
tie-down strap hooks directly to the trowel as shown
in Figure 6. DO NOT wrap the tie-downs around the
frame as shown in Figure 7.
Figure 6. Tie-Down Method (Correct)
NOTICE
Use tie-downs with at hooks or U-hooks only.
CORRECT
P/N 42971
To Next Page
