TROUBLESHOOTING
FAULTS
When a fault occurs, the trowel’s horn will begin a repeating
cycle of 5 beeps every 30 seconds. The amber LEDs on
the diagnostic display will turn ON (Figure 57), and the
Check Engine icon will be shown on the display. When
this happens:
1. Press the button on the right side of the display to view
the active fault code (Figure 58).

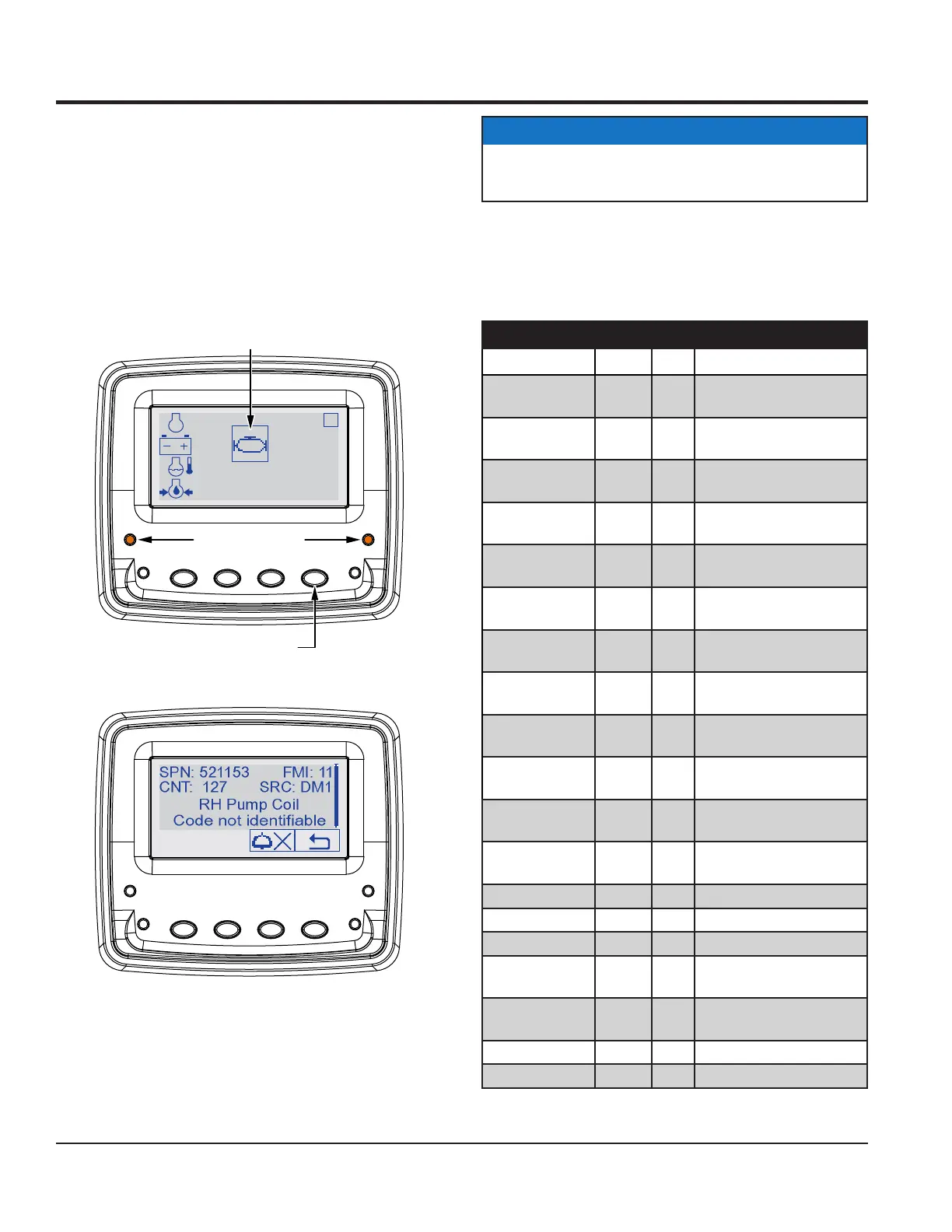

Figure 57. Diagnostic Display (Active Fault)
Figure 58. Diagnostic Display (Fault Code Screen)
2. Shut down the engines and correct the problem.
Until the fault has been cleared and machine power has
been restored, the horn’s beeping cycle will continue to
repeat while the engines are running or the ignition key is
in the ON position.
1730
12
45
0
RPM
V
3
°C
Kpa
AMBER LEDs
(ON)
CHECK ENGINE
ICON
RIGHT-SIDE
BUTTON
Fault codes shown on the diagnostic display are primarily
for machine faults. The only engine faults that are shown
on the display are related to engine oil temperature. For a
complete list of fault codes that are shown on the display,
see Table 10.
NOTICE
NEVER disable or disconnect the horn. Serious
damage to the trowel may occur as a result.
Table 10. Diagnostic Display Fault Codes
Name SPN FMI Description
LH Engine Oil
Temp. Warning
175 15 LH Block Temp
(SPN 110 > 120°C)
LH Engine Oil
Temp. Alarm
175 0 LH Block Temp
(SPN 110 > 125°C)
RH Engine Oil
Temp. Warning
1135 15 RH Block Temp
(SPN 110 > 120°C)
RH Engine Oil
Temp. Alarm
1135 0 RH Block Temp
(SPN 110 > 125°C)
LH Hyd. Pressure
Low Alarm
521110 1 LH Loop Pressure < 5 bar
LH Hyd. Pressure
Low Warning
521110 17 LH Loop Pressure < 15 bar
LH Hyd. Pressure
High Stage 1
521110 0 LH Loop Pressure > 400 bar
RH Hyd. Pressure
Low Alarm
521111 1 RH Loop Pressure < 5 bar
RH Hyd. Pressure
Low Warning
521111 17 RH Loop Pressure < 15 bar
RH Hyd. Pressure
High Stage 1
521111 0 RH Loop Pressure > 400 bar
LH Rotor Speed
Fault
521127 11 No Speed Detected
W\RH Speed > 30
RH Rotor Speed
Fault
521128 11 No Speed Detected
W\LH Speed > 30
Pedal A Fault 521131 11
LH Fan Fault 521139 11
RH Fan Fault 521140 11
LH Pump Coil
Fault
521152 11
RH Pump Coil
Fault
521153 11
Pedal B Fault 521156 11
Pedal Sync Fault 521237 11
