LIFTING AND TRANSPORTING
LIFTING AND TRANSPORTING THE TRACK BUGGY
The following procedure describes how to lift and transport
the track buggy.
WARNING
NEVER lift the track buggy with personnel standing
underneath the unit. ALWAYS clear the area of
bystanders. DO NOT lift to unnecessary heights or with
the tub loaded with material.
1. Place the tub/bucket in the dump position to gain
access to the two lifting points.
2. Attach a strap or chain of appropriate lifting capacity
to the lifting points as shown in Figure 2A.
3. Use a crane or forklift to hoist the track buggy onto a
flatbed truck for transporting.
4. Attach tie-down straps/chains to the tie-down points
on the track buggy as shown in Figure 2B.

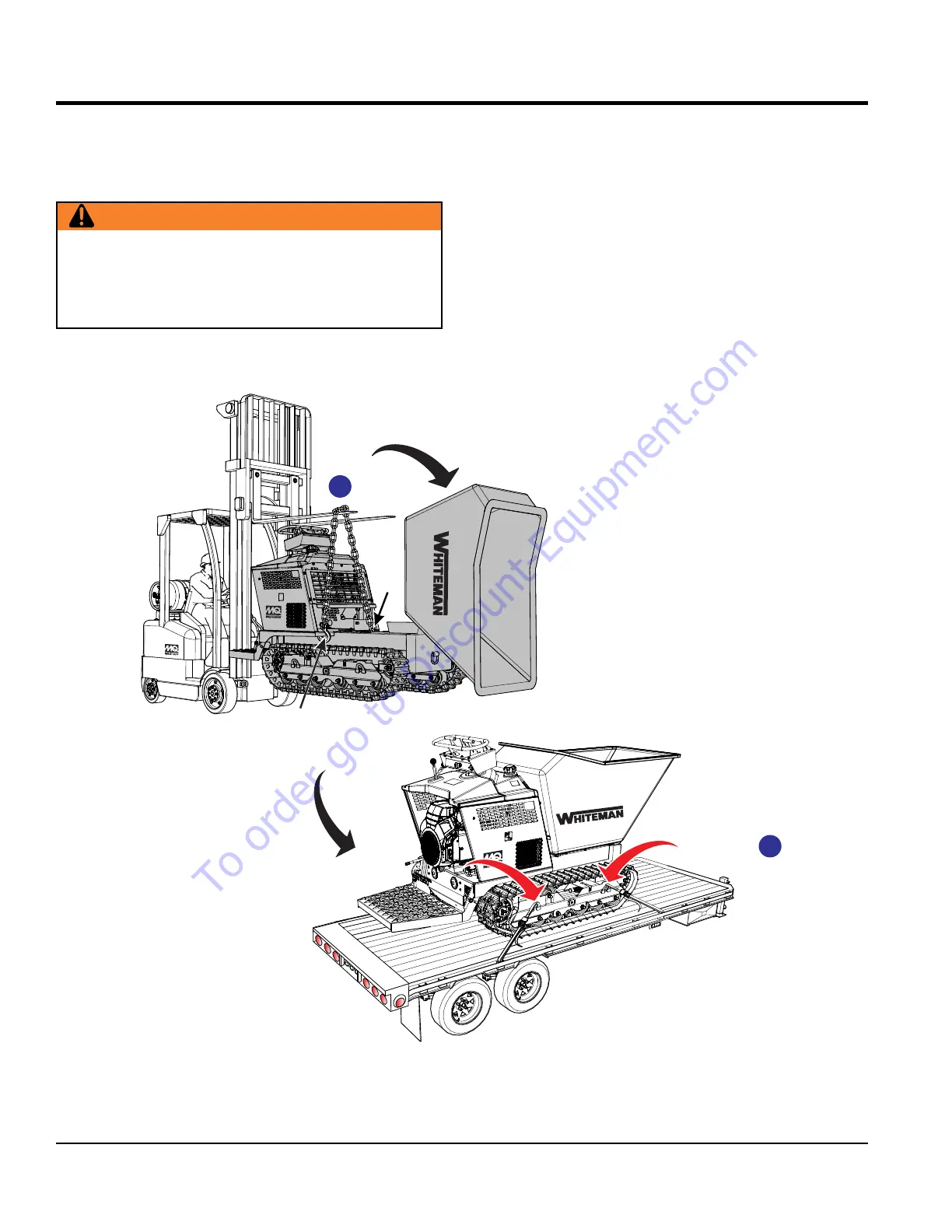

Figure 2. Lifting the Track Buggy
DUMP
POSITION
WTB16
LIFTING
POINT (2)
TIE-DOWN
POINT (4)
FLATBED
TRUCK
FORKLIFT
A
B
