INSPECTION
BEFORE STARTING
1. Read safety information at the beginning of the manual.
2. Clean the machine, removing dirt and dust—particularly
the engine cooling air inlet, carburetor and air cleaner.
3. Check the air filter for dirt and dust. If the air filter is
dirty, replace it with a new one.
4. Check the carburetor for external dirt and dust. Clean
with dry compressed air.
5. Check fastening nuts and bolts for tightness.
ENGINE OIL CHECK
1. To check the engine oil level, place the buggy on
secure, level ground with the engine stopped.
2. Remove the dipstick from its holder (Figure 6) and
wipe it clean.

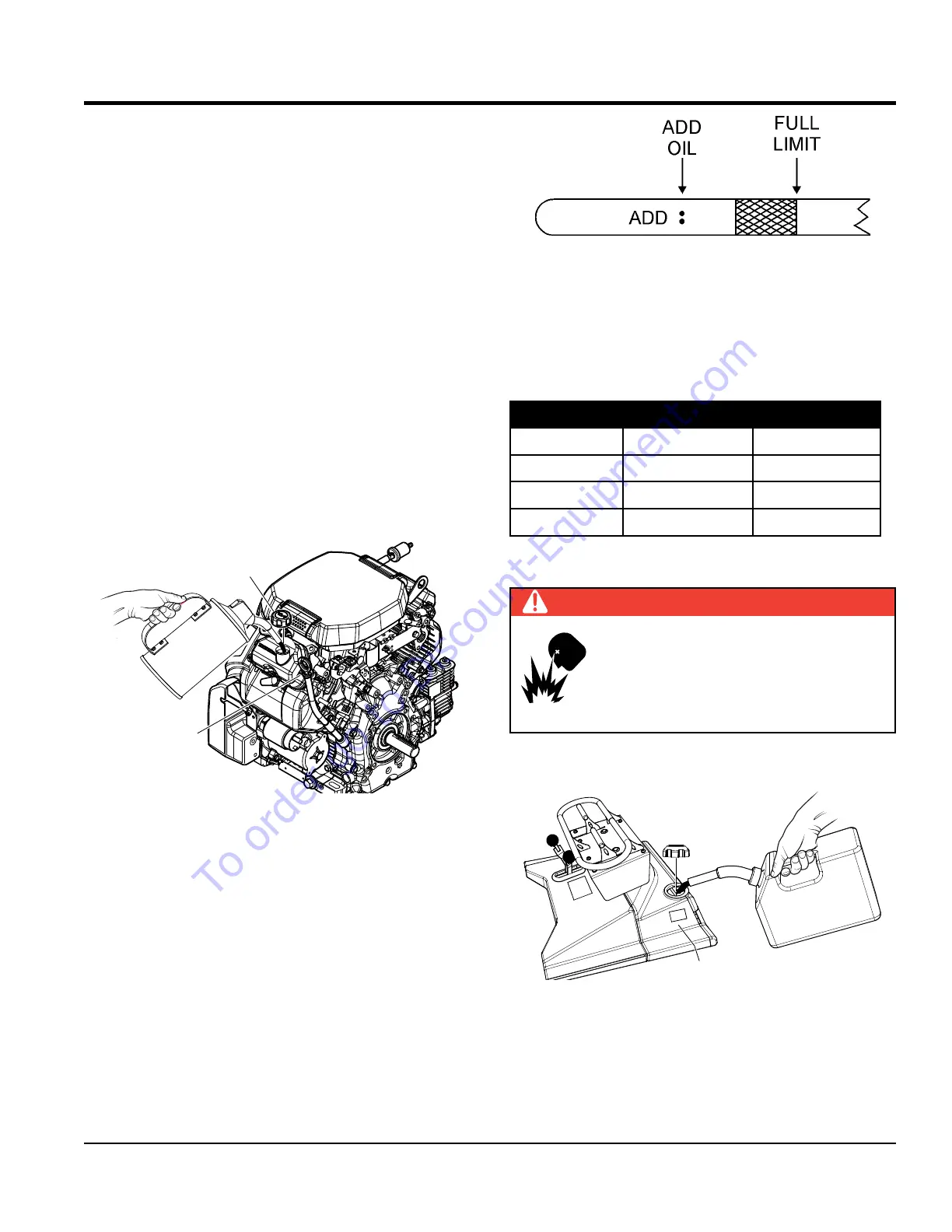

Figure 6. Engine Oil Dipstick Removal
3. Reinsert the dipstick back into its holder, then remove
it again. Check the oil level shown on the dipstick.
4. If the oil level is low, remove the oil fill cap (Figure 6)
and fill the engine crankcase with lubricating oil through
the oil filler hole. DO NOT overfill.
5. Make sure the buggy is level and verify that the oil level
is maintained between the two notches (Figure 7) as
shown on the dipstick. Reference Table 5 for proper
selection of engine oil.
DIPSTICK
OIL FILL
CAP
MOTOR OIL
Figure 7. Engine Oil Level
6. When checking the engine oil, be sure to check if the oil
is clean. If the oil is not clean, drain the oil by removing
the oil drain plug, and refill with the specified amount
of oil as outlined in the Maintenance section of this
manual. Oil should be warm before draining.
GASOLINE CHECK
1. Remove the fuel cap (Figure 8) located on top of the
fuel tank.
Figure 8. Fuel Tank
2. Visually inspect to see if the fuel level is low. If the fuel
level is low, replenish with unleaded fuel.
3. When refueling, be sure to use a strainer for filtration.
DO NOT top off fuel. Wipe up any spilled fuel
immediately. Tighten the fuel cap until it clicks.
Table 5. Oil Type
Season Temperature Oil Type
Summer 25°C or Higher SAE 10W-30
Spring/Fall 25°C~10°C SAE 10W-30/20
Winter 0°C or Lower SAE 10W-10
DANGER
Motor fuels are highly flammable and can
be dangerous if mishandled. DO NOT
smoke while refueling. DO NOT attempt
to refuel the buggy if the engine is hot
or running.
FUEL TANK
FUEL CAP
UNLEADED
GASOLINE
