PAGE 26 — WTB-16PD TRACK-DRIVE POWER BUGGY • OPERATION MANUAL — REV. #0 (08/31/20)
OPERATION

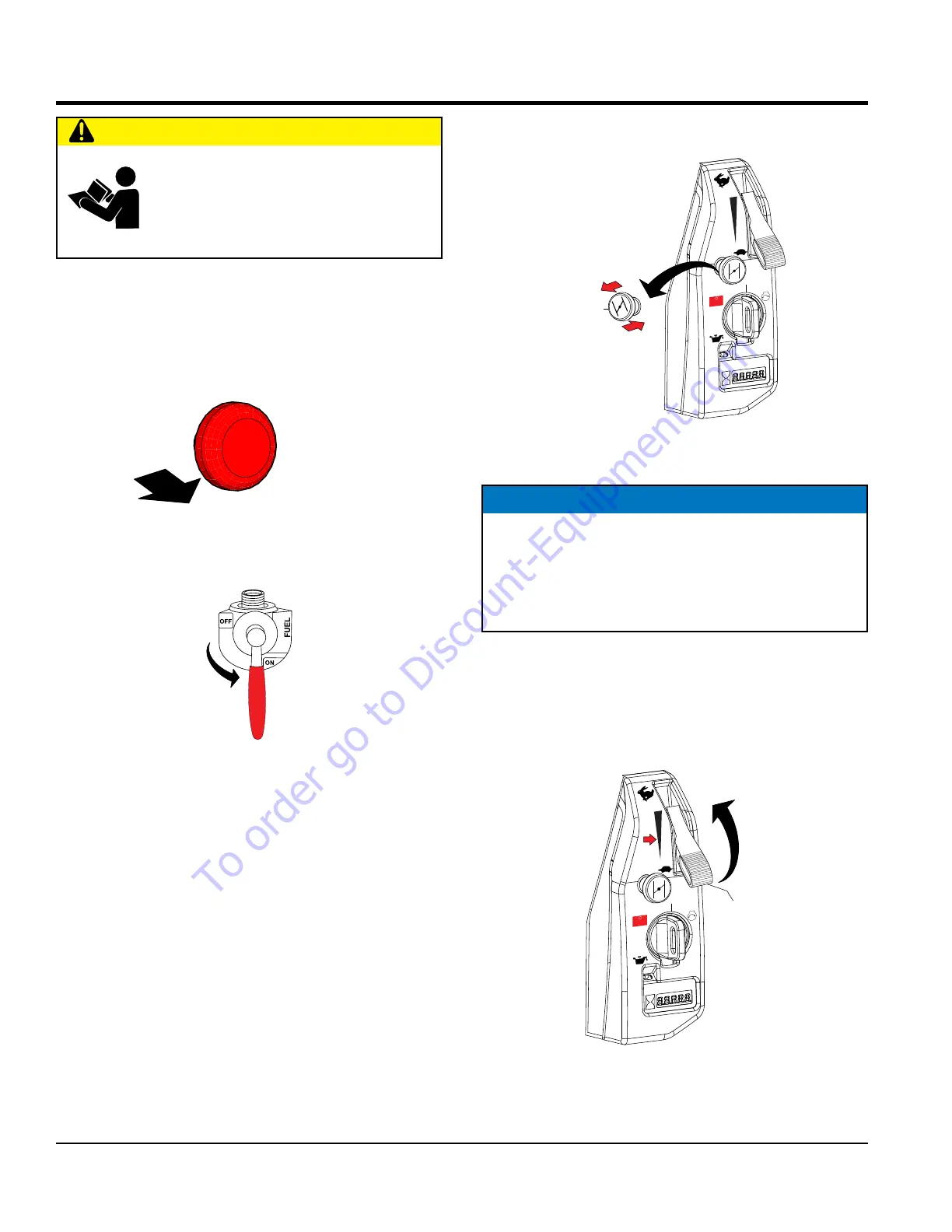

1. Before attempting to start the power buggy, make
sure that the emergency stop switch (Figure 12)
is not pushed in. The power buggy will not start with
the emergency stop switch engaged. Pull the switch
outward when starting the engine.
Figure 12. Kill Switch (OFF)
2. Place the fuel tank ON/OFF valve (Figure 13) in the ON
position.
Figure 13. Fuel Tank ON/OFF Valve (ON)
3. If starting a cold engine, pull the choke lever outward
(Figure 14) to the CLOSED position.
CAUTION
DO NOT attempt to operate the power
buggy until the Safety Information,
General Information, and Inspection
sections of this manual have been read
and thoroughly understood.
EMERGENCY
STOP
SWITCH
PULL
(ST
ART)
Figure 14. Engine Choke Lever
4. If starting a warm engine or the temperature is warm,
push the choke lever inward (Figure 14) to the OPEN
position.
5. Move the throttle lever halfway between the MIN. and
MAX. position (Figure 15) for starting.
Figure 15. Throttle Lever
HOUR
CHOKE
ENG
OFF
START
ON
MIN.
MAX.
1/10
CHOKE
KNOB
CLOSED
(PULL)
OPEN
(PUSH)
NOTICE
The CLOSED position of the choke lever enriches
the fuel mixture for starting a cold engine. The OPEN
position provides the correct fuel mixture for normal
operation after starting, and for restarting a warm
engine.
HOUR
CHOKE
ENG
OFF
START
ON
MIN.
MAX.
1/10
THROTTLE
LEVER
