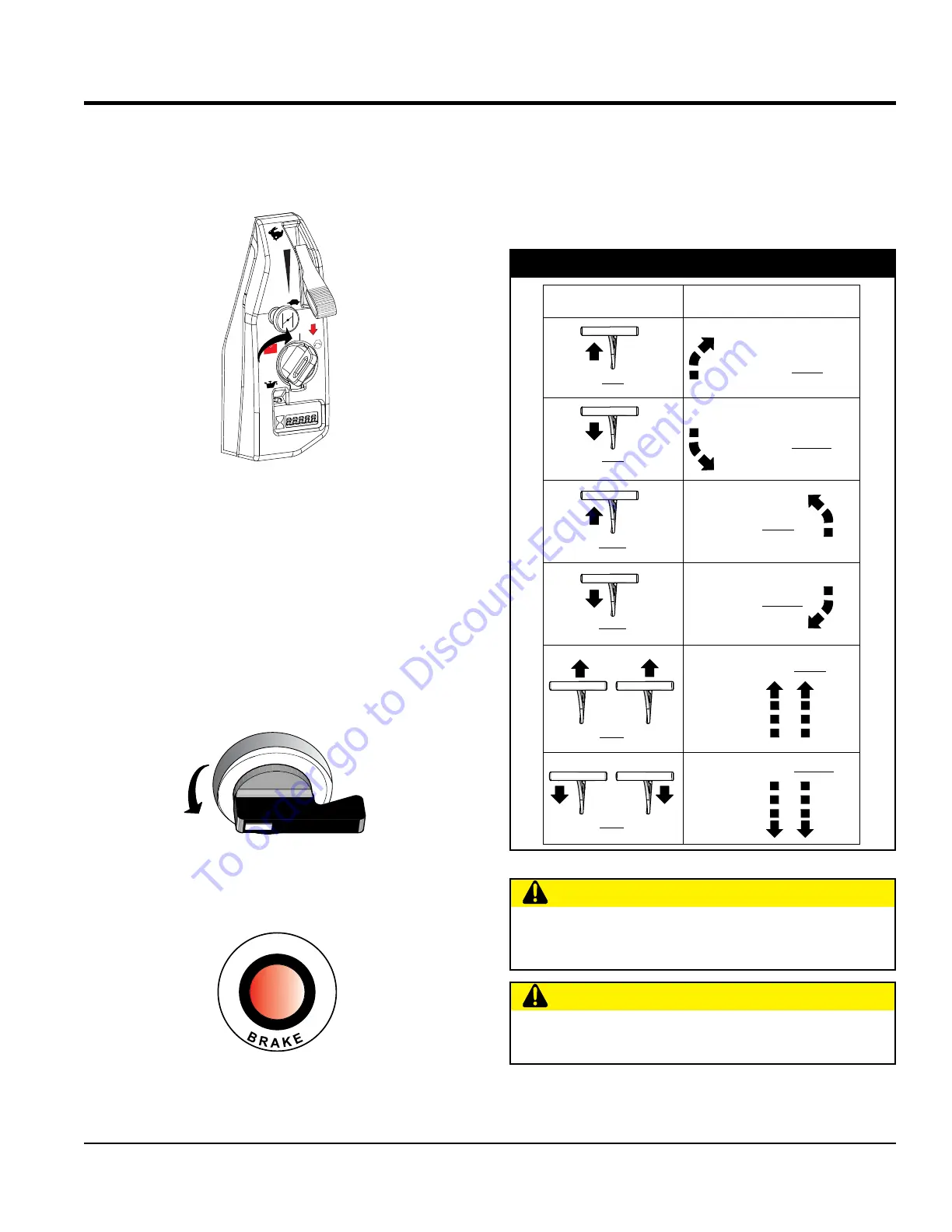

WTB-16PD TRACK-DRIVE POWER BUGGY • OPERATION MANUAL — REV. #0 (08/31/20) — PAGE 27
OPERATION
6. Place the ignition key (Figure 16 ) in the START position
and hold it until the engine starts. When the engine
starts, release the key, allowing it to return back to the
ON position.
Figure 16. Engine ON/OFF Switch (Start)
7. Run the engine for several minutes. Check for fuel
leaks and noises that could be associated with a loose
guard or cover.
8. Before operating, place the choke lever (Figure 14) in
the OPEN position.
TRAVELING
1. With the engine running, place the parking brake knob
(Figure 17) in the OFF position.
Figure 17. Brake Knob (Off Position)
2. Verify that the parking brake release lamp is OFF.
Figure 18. Parking Brake Lamp (OFF)
3. Place the throttle lever (Figure 15) in the MAX. position.
HOUR
CHOKE
ENG
OFF
START
ON
MIN.
MAX.
1/10
OFF
ON
P
A
R
K
I
N
G
4. Push both the left and right track levers forward slowly.
Notice that the track buggy begins to move in a forward
direction.
5. Practice maneuvering the track buggy using the
information listed in Table 6.
Table 6. Directional Positioning
Move LEFT Track
Lever Backward
TRACK LEVER
DIRECTION
Causes only the left-side of
the buggy to move forward.
RESULTS
Move LEFT Track
Lever Forward
Causes only the left-side of
the buggy to move backward.
Move RIGHT Track
Lever Backward
Causes only the right-side of
the buggy to move forward.
Move RIGHT Track
Lever Forward
Causes only the right-side of
the buggy to move backward.
Move BOTH Track
Levers Forward
Move BOTH Track
Levers Backward
Causes the buggy to move forward in a
straight line.
Causes the buggy to move backward in a
straight line.
CAUTION
DO NOT steer the buggy left or right when traveling up
or down on a grade. Travel in a straight path.
CAUTION
Avoid sudden or quick turns. ALWAYS face the controls
when traveling.
