PAGE 28 — WTB-16PD TRACK-DRIVE POWER BUGGY • OPERATION MANUAL — REV. #0 (08/31/20)
NOTICE
When going up or down a slope, always travel in the
forward direction (Figure 20).
When traveling on a slope, it is necessary to determine
the grade of the path. The WTB-16 can travel up or down
a maximum grade of 20% (12°). DO NOT travel on steeper
slopes.

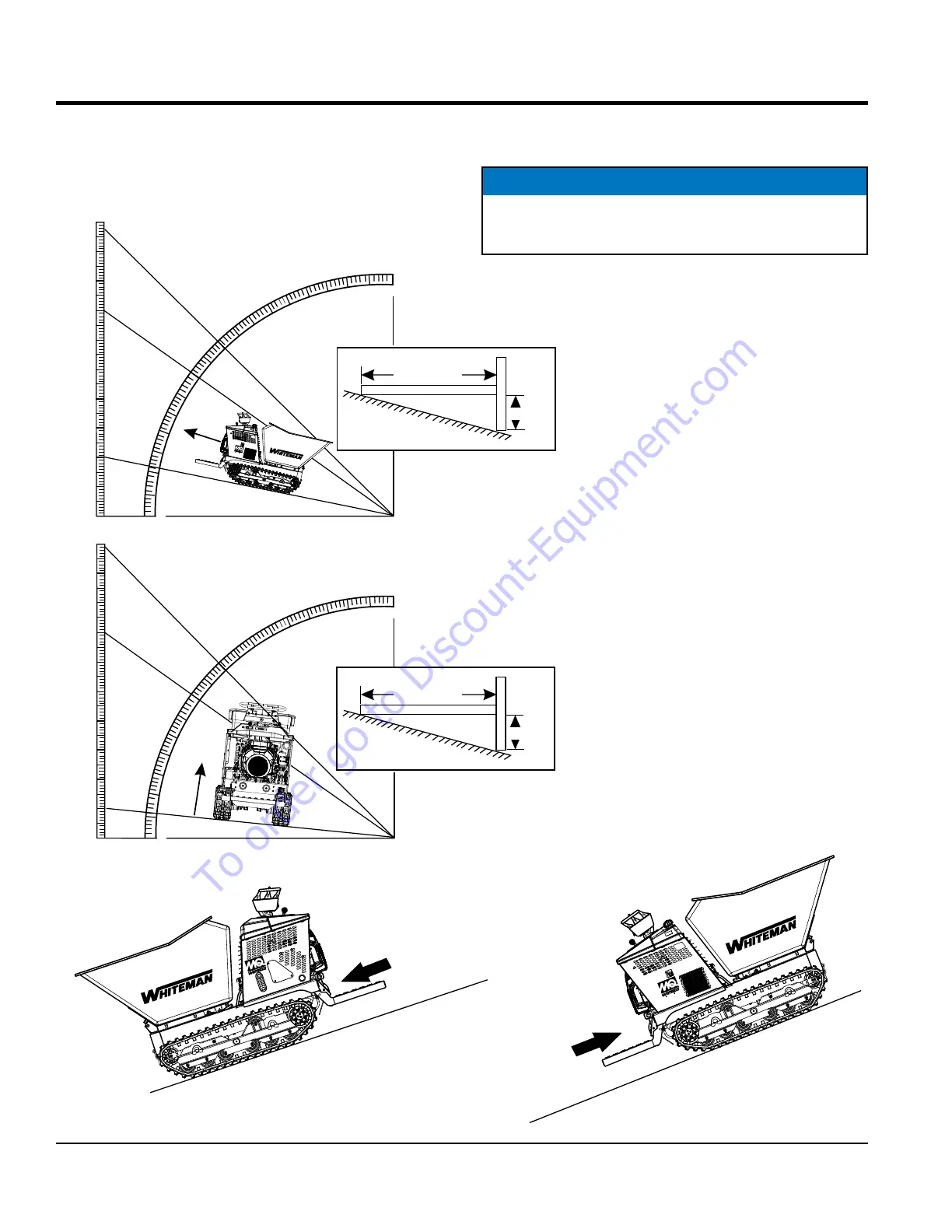

To determine the % grade of your path of travel, use the
formula and graphs as shown in Figure 19.
OPERATION
5
0
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
90
85
80
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
20%
12°
GRADE (DEGREES)
PERCENT GRADE
70%
35°
100%
45°
0
LEVEL BASE LINE
DISTANCE (D)
% GRADE = 100 (H¸D)
HEIGHT (H)
DIRECTION
OF TRAVEL
WTB16
DISTANCE (D)
% GRADE = 100 (H¸D)
HEIGHT (H)
5
0
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
90
85
80
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
10%
6°
GRADE (DEGREES)
PERCENT GRADE
70%
35°
100%
45°
0
LEVEL BASE LINE
DIRECTION
OF TRAVEL
CORRECT
DIRECTION
FOR TRAVELING
DOWN A SLOPE
WTB16
CORRECT
DIRECTION
FOR TRAVELING
UP A SLOPE
WTB16
Figure 19. Determining Grade of Slope
Figure 20. Slope Travel Direction
