WTB-16PD TRACK-DRIVE POWER BUGGY • OPERATION MANUAL — REV. #0 (08/31/20) — PAGE 29
TUB (BUCKET) DUMPING
WARNING
DO NOT activate the dump mechanism (tub/bucket) if
the buggy is facing downhill. The possibility exists of
the buggy tipping over causing equipment damage and
severe bodily harm.
NOTICE
Releasing either one (dump control lever or pedal)
before dump is completed will cause the tub to return
to the horizontal position.
OPERATION
The hydraulic dump can be controlled by the hand dump
control lever or foot dump pedal.
1. To place the tub in the vertical position, press down
on the dump pedal (Figure 21A) or move the dump
control lever forward (Figure 21B). The tub will move to
the vertical position as long as pressure is continuously
applied to the dump pedal or the dump control lever is
held in the forward position.
2. To return the tub to the horizontal position, simply place
your foot underneath the dump pedal (Figure 21C) and
lift or pull back on the dump control lever (Figure 21D).

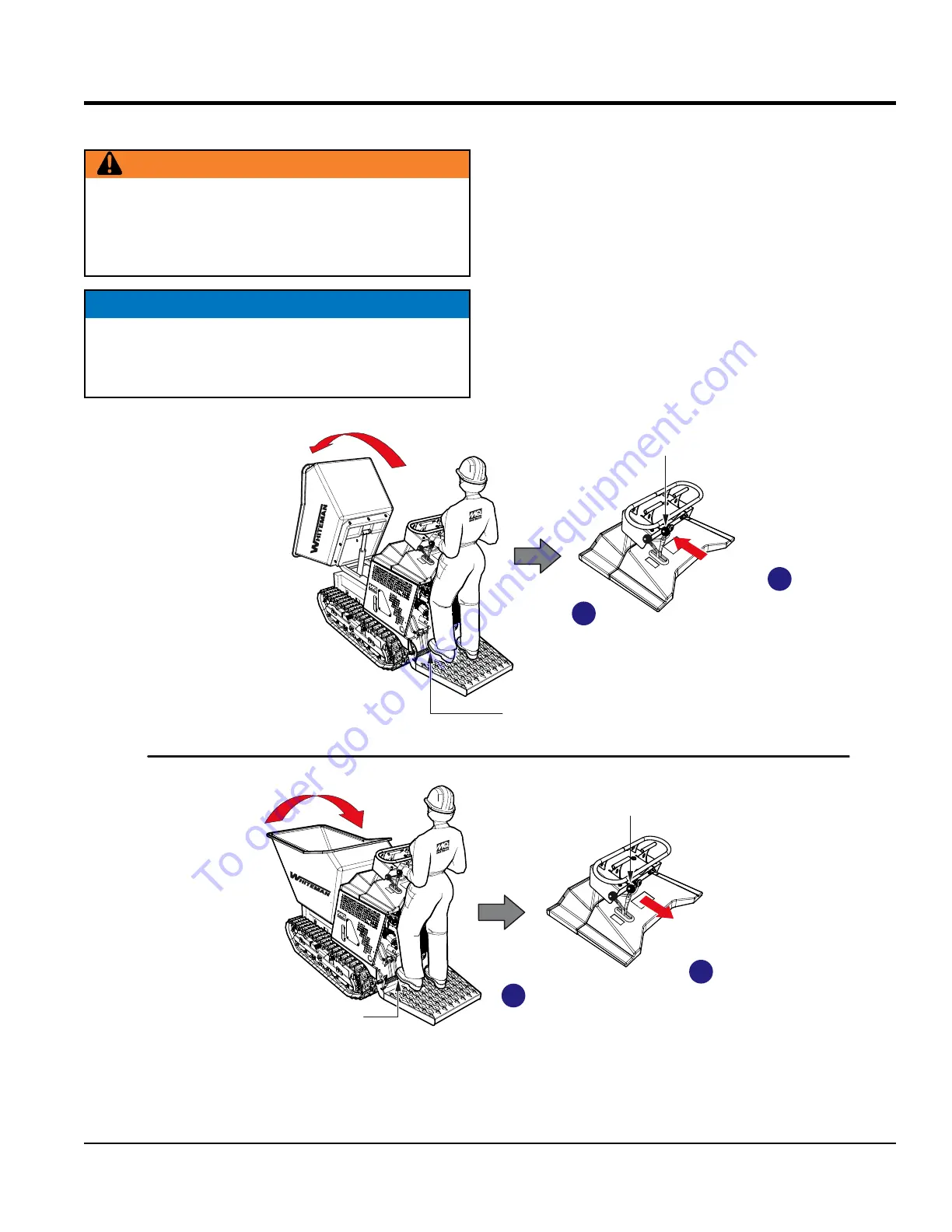

Figure 21. Tub Dumping
B
D
TUB DUMP
METHOD 1
A
TUB (BUCKET)
DUMP PEDAL
LIFT UP TO
TO PLACE TUB IN
HORIZONTAL POSITION
TUB RETURN
METHOD 1
C
TUB (BUCKET)
WTB16
WTB16
DUMP CONTROL LEVER
PUSH FORWARD TO DUMP
TUB DUMP
METHOD 2
TUB RETURN
METHOD 2
DUMP CONTROL LEVER
PULL BACKWARDS TO PLACE
TUB IN HORIZONTAL POSITION
DUMP PEDAL
PRESS DOWN
TO DUMP
