4.0. Maintenance
4.1. Fine Tuning the Adjustable Screw

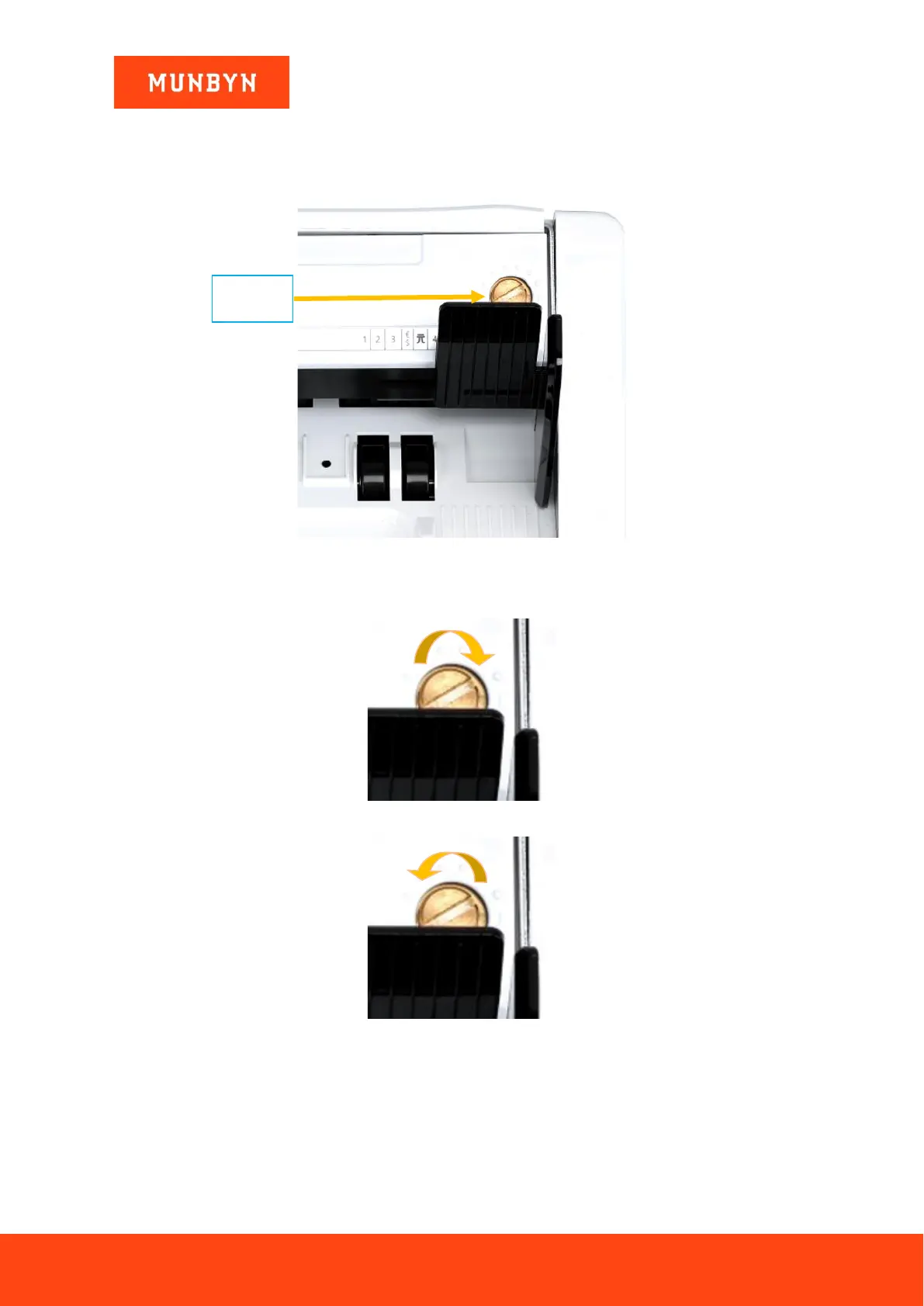

Figure 4-1 The Adjustable Screw
The screw is used to control the width of the banknote entrance. The width will become smaller by rotating the
screw toward the smallest dot, otherwise, it will become bigger.
Figure 4-2 Rotate the Screw to Increase the Width of Banknote Entrance
Figure 4-3 Rotate the Screw to Decrease the Width of Banknote Entrance
In order to fine tune the screw, please stop the auto counting first, and insert one banknote to the gap between
the rollers to check if the banknote can be inserted smoothly, as shown in the following.
