Muncie ADVANTAGE + - Open Center to Closed Center Conversion

16
HYDRAULIC
CONFIGURING SYSTEM FROM OPEN TO CLOSED CENTER
Instructions:

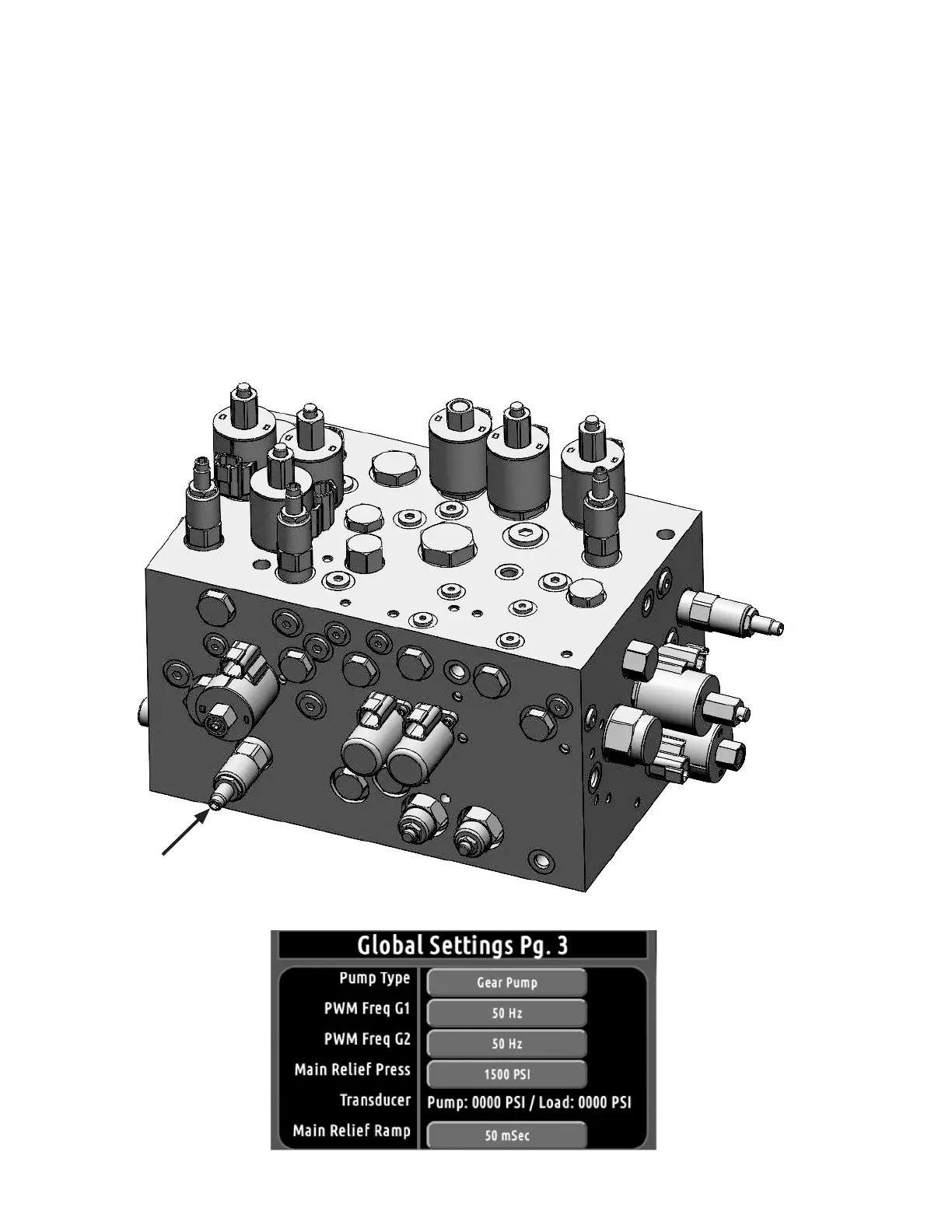

1. Locate the RV1 cavity and remove (Hydraforce P/N: RV08-20A-0-NC-05-02)
2. Replace with NXCP08-20-N
3. Within the control panel conguration menu:
a. Locate the Pump Type Selection in the Global Settings Menu
b. Toggle the box and change from gear to piston pump
RV1
