Muncie ADVANTAGE + - Port Designations

5

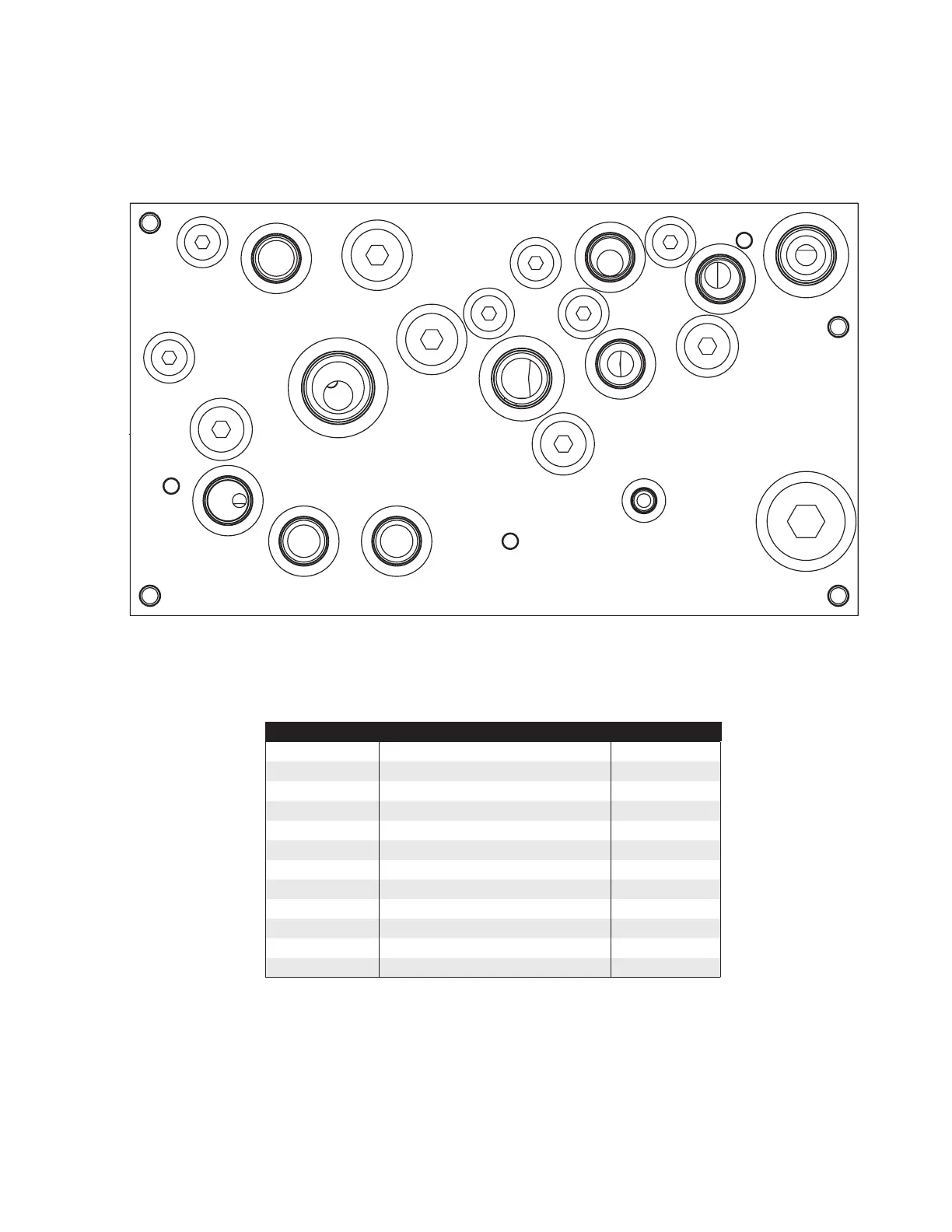

HYDRAULIC PORT DESIGNATIONS
DESIGNATION FUNCTION SIZE (SAE)
PLA Plow Up
10
PLB Plow Down
10
P Pump
16
PAA
Plow Left
10
PAB
Plow Right
10
HB
Hoist Down
12
A Auger
10
B Auger Reverse / Spreader Return
10
LS
Load Sense
4
S
Spinner
10
HA
Hoist Up
12
Z*
Route to Tank / Return Port*
16
*If manifold is congured for a SA telescopic hoist cylinder, connect this port directly to an open port on the reservoir. If manifold is
congured for a DA hoist cylinder, this port can be used as a return port.
PLA
A
S
HA
B
HB
P
LS
Z
PAB
PAA
PLB
