19

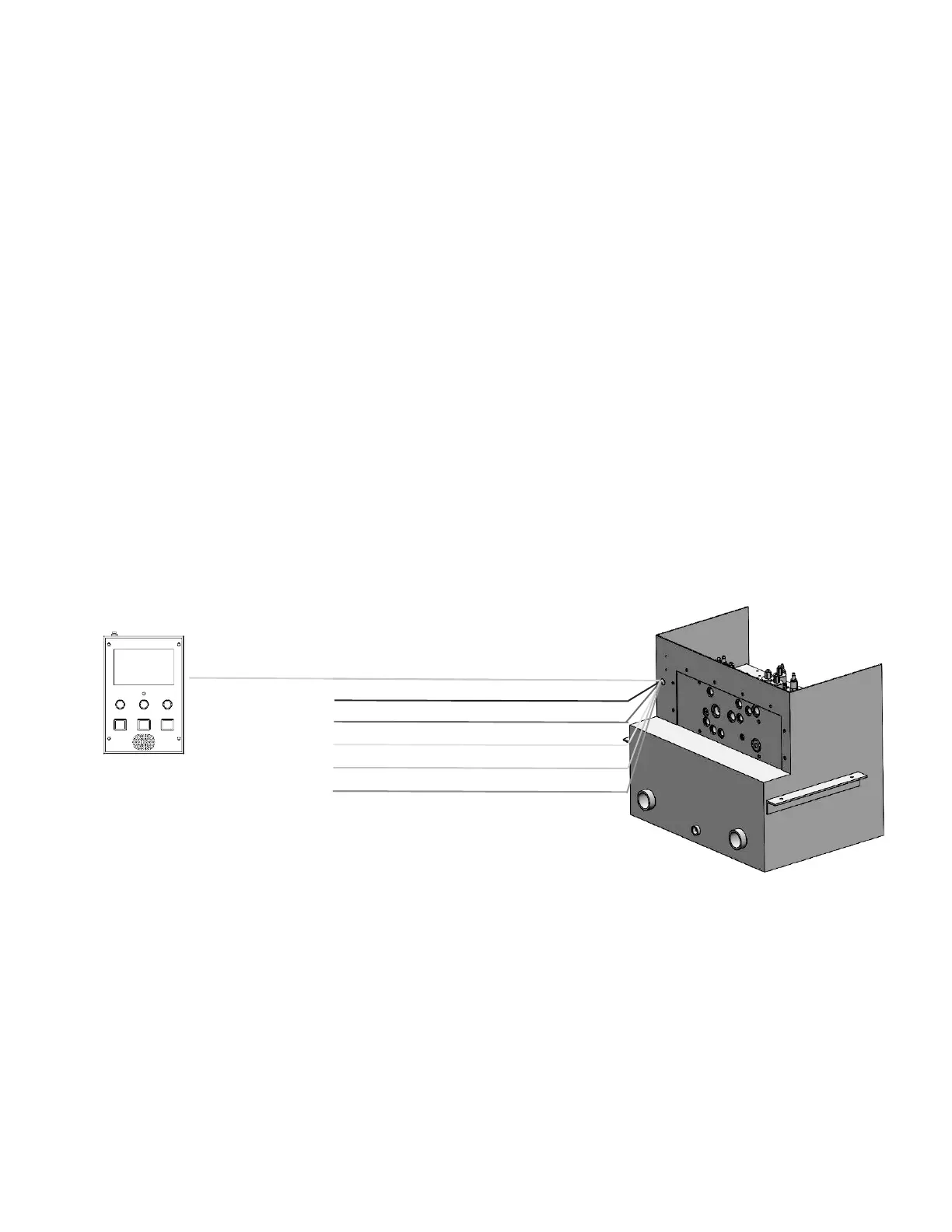

Power / CAN - Gray Harness - Route into Cab
Black - Connect to Battery Ground
Red - Connect to 12VDC Battery
Yellow - Connect to 12VDC Ignition
Pink - Connect to Speedometer Input
Orange - Connect to Pre-Wet
ELECTRICAL GUIDE
WIRING ASSIGNMENTS
Gray Jacketed Cable – This cable supplies the controller with power, ground, and CAN connection.
Red Wire – Connect to 12VDC (Battery) with a 20A fused connection.
Yellow Wire – Ignition Power: Connect to a fused ignition power source.
Black Wire – Connect to Battery Ground
Pink Wire: – Connect to Speedometer Input
Orange Wire (When applicable): – Connect to pre-wet valve or pump (Source Current)
