Muncie ADVANTAGE + - Master; Slave Harness

23
ELECTRICAL GUIDE

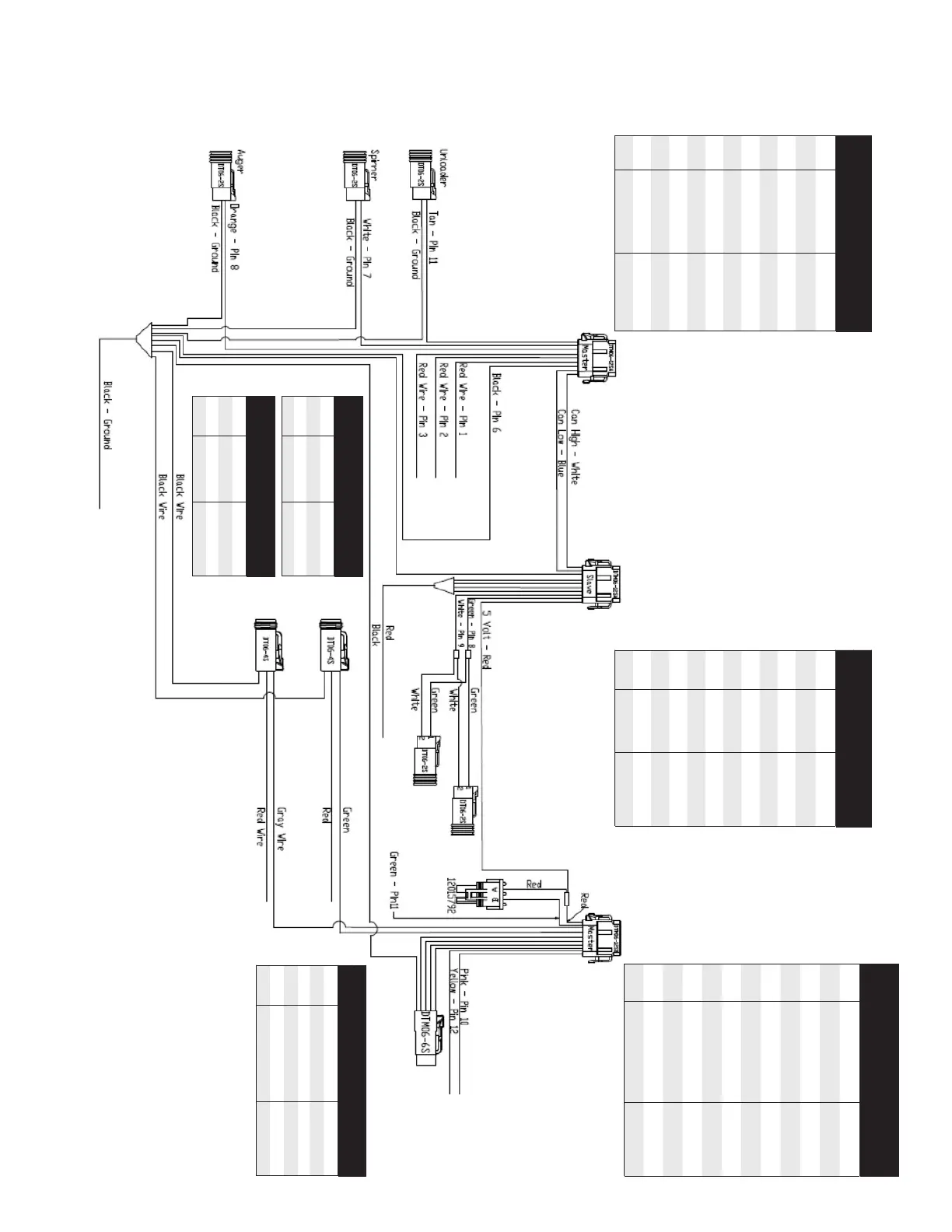

MASTER / SLAVE HARNESS - APWH5A
MASTER 12 POS. PLUG
PIN FUNCTION WIRE COLOR
A.1 Battery Power Red A.2 To Power Stud Red A.3 Relay Control Red A.4 Can High White A.5 Can Low Blue A.6 Ground Black A.7 Spinner White A.8 Auger Orange A.9 — Plug
A.10 — Plug A.11 Unloader Tan A.12 — Plug
SLAVE 12 POS. PLUG
PIN FUNCTION WIRE COLOR
A.1 Power Red A.2 Power Red A.3 Power Red A.4 Can High White A.5 Can Low Blue A.6 Ground Black A.7 Power Red A.8 Can High Green A.9 Can Low White
A.10 — Plug A.11 — Plug A.12 5 Volt Input Red
MASTER 12 POS. PLUG
PIN FUNCTION WIRE COLOR
B.1 Hot Oil
White
B.2 Cold Oil
Green
B.3 Low
Red
B.4
Body Sensor
Brown
B.5
5 Volt Output
Red
B.6
Pump Pressure
Gray
B.7 Load Pressure
Green
B.8 B.9
B.10
Ground Speed
Pink
B.11
Temperature Sensor
Green
B.12
Ignition
Yellow
LOAD PRESSURE 4 POS. PLUG
PIN FUNCTION WIRE COLOR
1 Ground Black 2 Input Voltage Red 3 — Plug 4 Output Voltage Green
PUMP PRESSURE 4 POS. PLUG
PIN FUNCTION WIRE COLOR
1 Ground Black 2 Input Voltage Red 3 — Plug 4 Output Voltage Gray
DIGITAL INPUT 6 POS. PLUG
PIN FUNCTION WIRE COLOR
1 Hot Oil (Digital 1) White 2 Cold Oil (Digital 2) Green 3 Low Oil (Digital 3) Red 4 Body Sensor (Digital 4) Brown 5 Ground Black 6 — Plug
