18
QUICK DISCONNECT ANGLE RT
QUICK DISCONNECT ANGLE LT PAA - ANGLE LT
PAB - ANGLE RT
TANK
HYDRAULIC

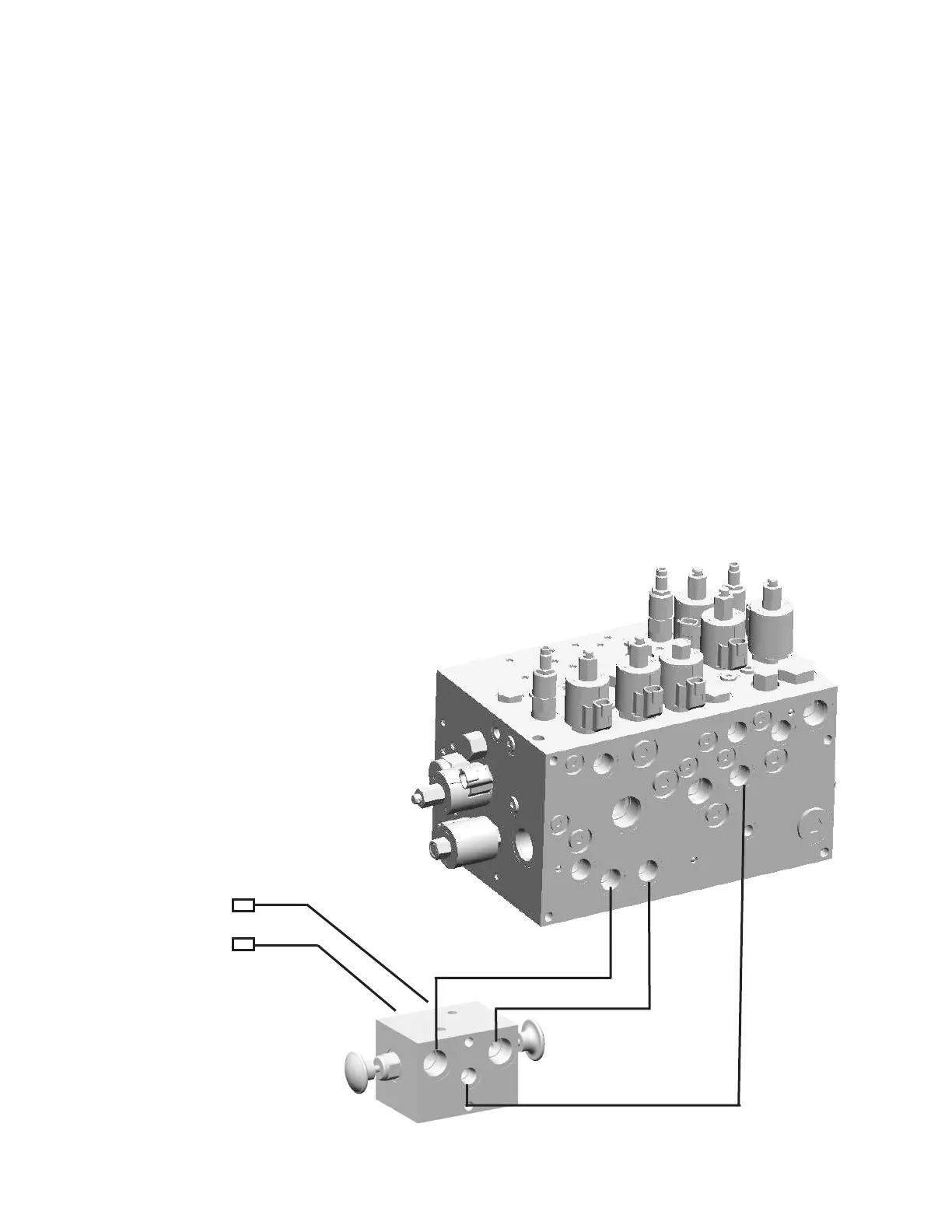

PLOW PRESSURE RELEASE MANIFOLD INSTALLATION
Purpose: This manifold is intended to relieve pressure within the plow angle lines. It allows easier connection
between quick disconnect ttings.
Operation Instruction: Pull actuators to relieve pressure within the plow angle circuit
Installation Instructions:
1. Locate the T Port – Route back to tank
2. Locate the PAA Port – Route to the PAA port on the Main Hydraulic Manifold
3. Locate the PAB Port – Route to the PAB port on the Main Hydraulic Manifold
4. Locate the PAA1 Port – Route to the plow left cylinder
5. Locate the PAB1 Port – Route to the plow right cylinder
