Appendix: Unit Specific Information 25
DryCool HD Operator and Maintenance Manual P00960167-1
Munters DryCool HD drier testing and analysis for measurement taken on react side of system. Available
external Sp measured at 60Hz, 81 deg F Tro.
Munters Drycool HD React Side
React
Airflow
Available Ext Sp
"wg
ACFM at fan 60 Hz measured
294.0 0.24
294.1 0.24
278.8 0.3
278.8 0.3
249.2 0.43
249.2 0.43
228.3 0.5
228.2 0.5
200.7 0.59
200.7 0.59
183.1 0.65
183.1 0.65

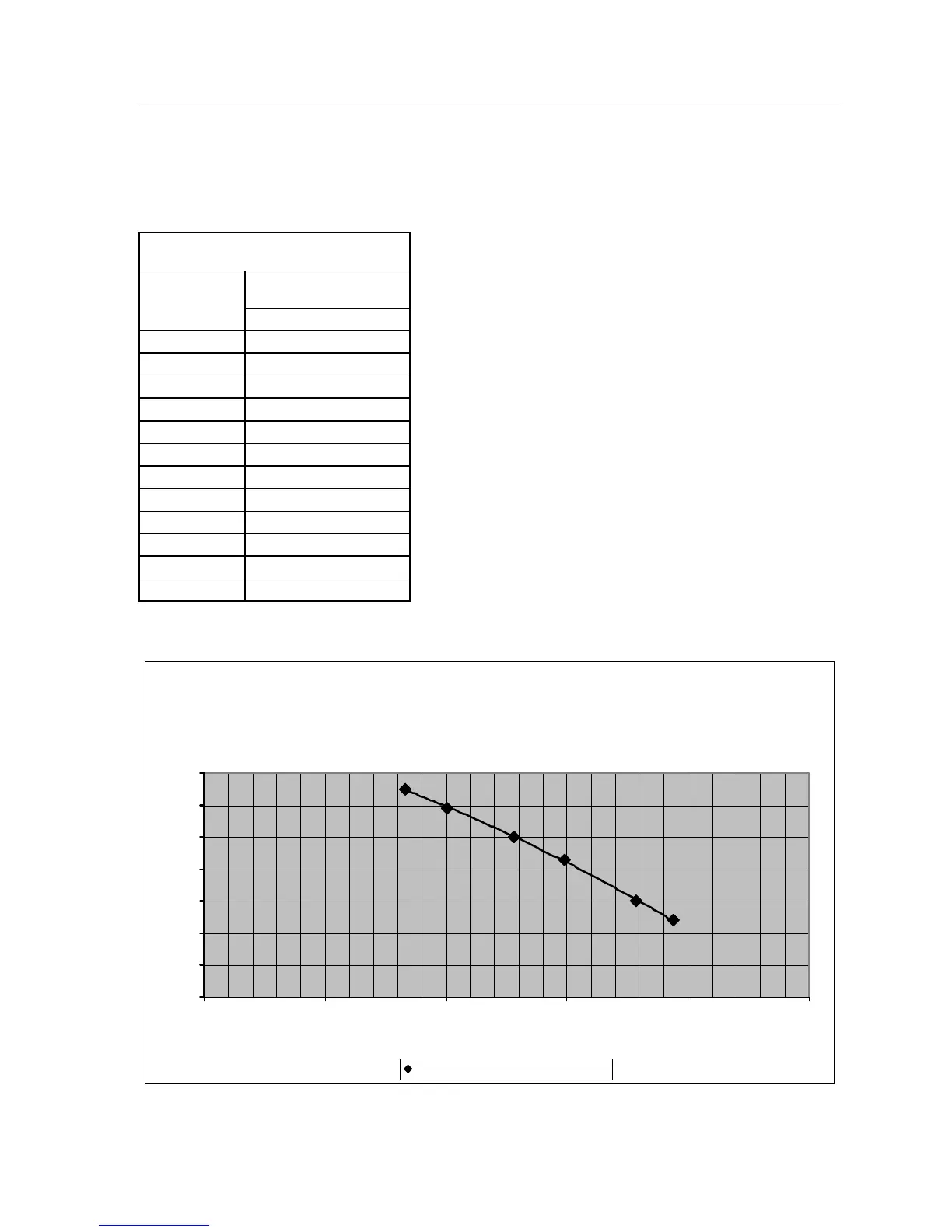

Munters Drycool HD Avail Ext Sp measured at 60 Hz.
React Side, (flow is in ACFM).
Actual air density at fan for 60 Hz tests was 0.074 lbs/ft3.
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
100.0 150.0 200.0 250.0 300.0 350.0
React Flow ACFM
Avail Ext Sp React Side "w
g
Measured React Avail Ext Sp at 60 Hz
