Munters MCS300 User Manual

MCS300
3.10.2Humidistatconnectionkit
Followtheinstructionsbelowtoassembleandconnectthehumidistatconnectionkit.
1.Connecttheleadstopins1and2,andthescreentotheearthpin.
1
3
2
A
B

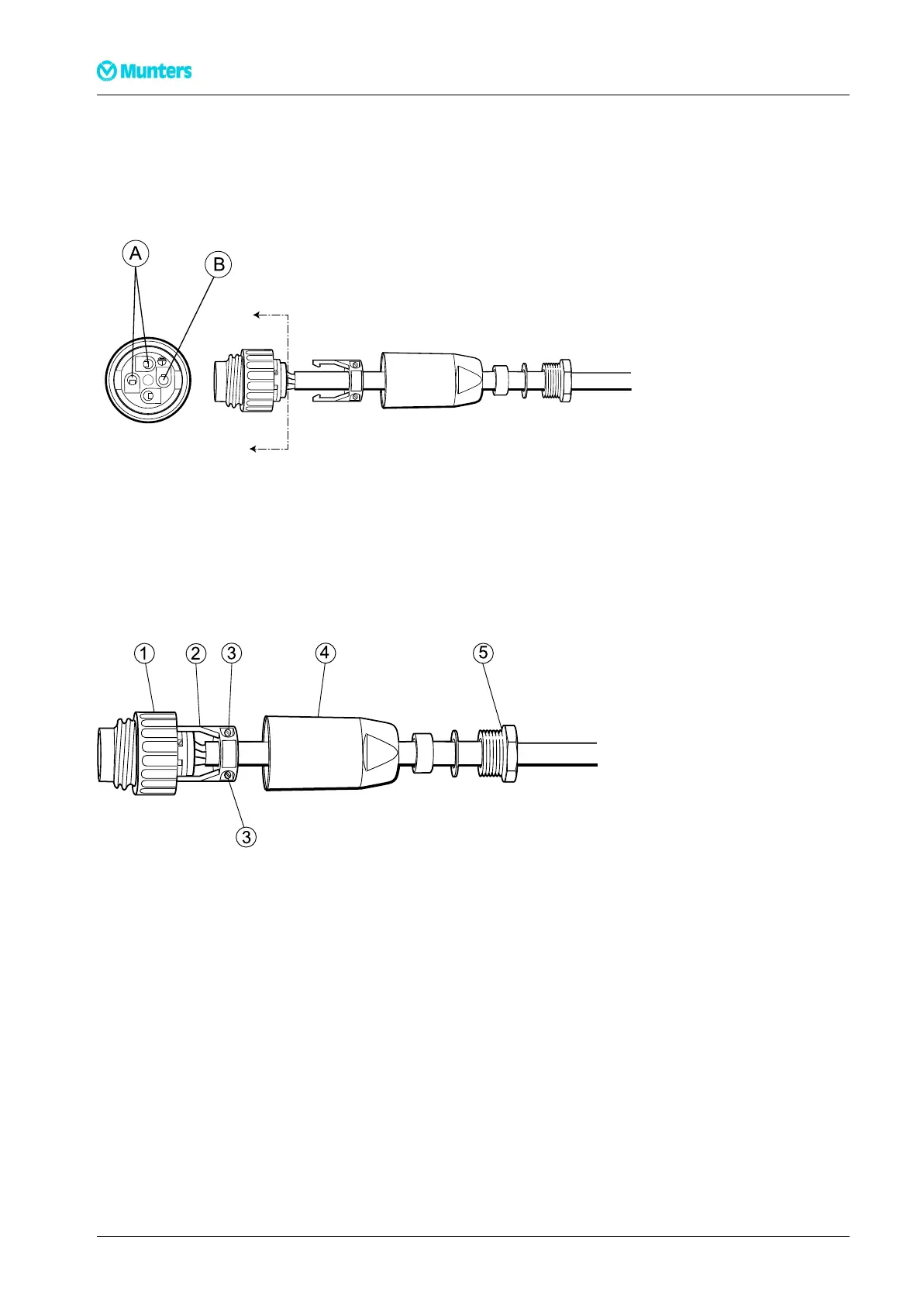

Figure3.5Connectionofleads
A.LeadconnectionsB.Screenconnections
2.Afxtheterminal(2)totheplug(1).
3.Tightentheterminalscrews(3).
4.Afxthecover(4)totheplug(1).
5.Afxtheange(5)tothecover(4).
1
2
3
4
5
3
Figure3.6Humidistatconnectionkitassembly
11Installation190TEN-1027-F1404
