4Operation
4.1General
Thedehumidierhasthreeoperatingmodes,seeFigure4.1.
Man:Thedehumidier’sfans,rotorandreactivationheateroperatecontinuously.
Auto1:Thedehumidier’sfans,rotorandreactivationheaterarestarted/stoppedbythehumidistat.
Auto2:Thedehumidier’sfansandrotoroperatecontinuously.Thereactivationheaterisstartedand
stoppedbythehumidistatonly.Thismodeofoperationisusedtomaintainaircirculation.Ifrelative
humidityrisestothehumidistatssetpoint,thereactivationheaterstarts.Thereactivationheaterstopswhen
relativehumiditydropsbelowthesetpoint.
NOTE!ForthedehumidiertofunctioninAuto1and2,asinglestagehumidistatmustbeconnectedtotheunit.
Seesection3.10,Connectingthehumidistat.
NOTE!Inhumidistatoperationmode,thereisabuilt-infunctionthatdelaysre-startofthedehumidierfor2
minutes.Seesection4.3.3,Automaticoperation.
Man
Auto 1
Auto 2
KWH
Temp
C
D
0 1
F
G
H
E
A
B

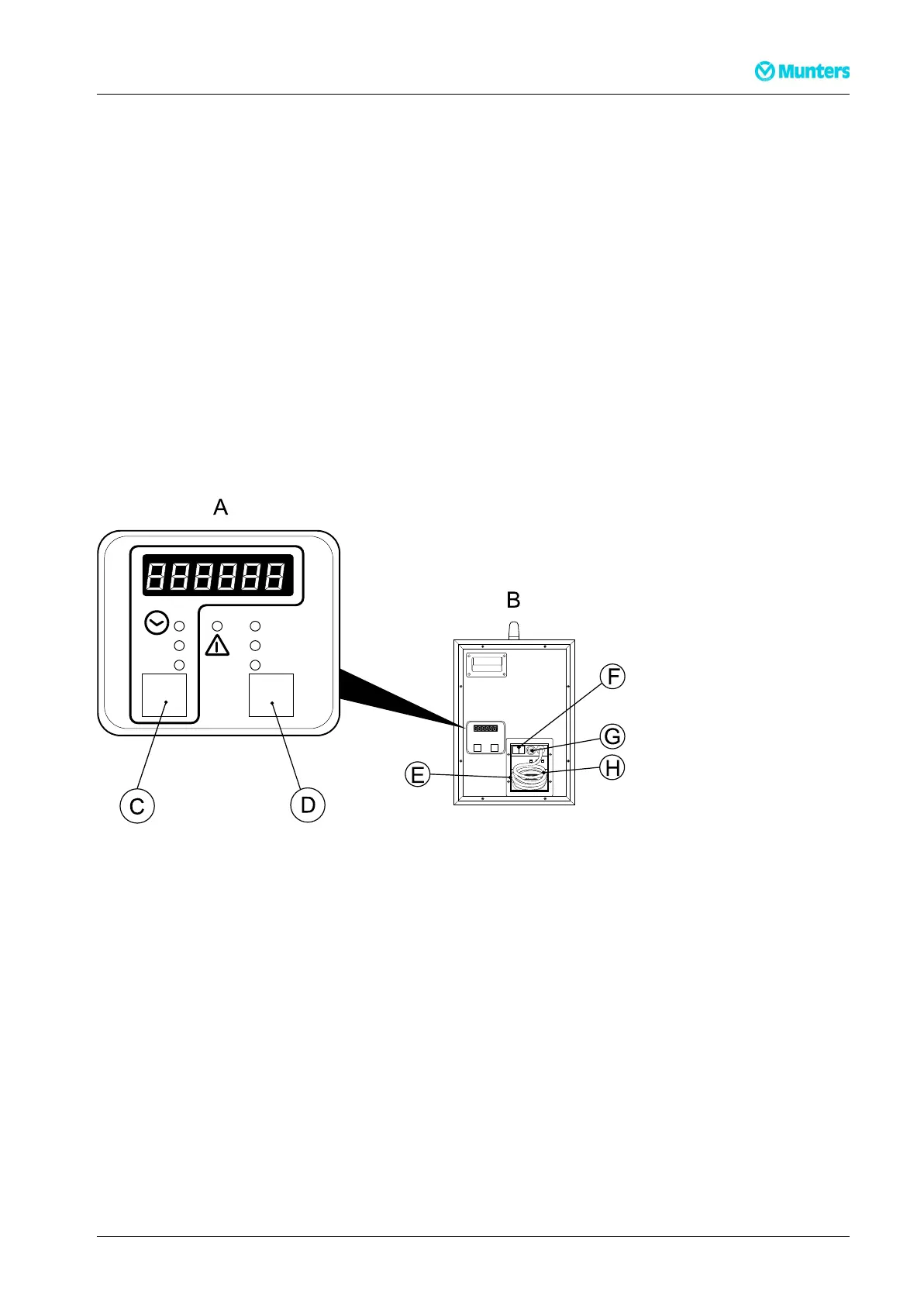

Figure4.1Controlpanel,on-offswitchandhumidistatsocket
A.ControlpanelE.Storagecompartment
B.DehumidierF.On-offswitch
C.MeasurementselectorG.Humidistatsocket
D.OperatingmodeselectorH.Powercable
4.2Quickstop
Stoptheunitwiththeon-offswitchatthefrontoftheunit,orpullouttheplugfromthewalloutlet.
190TEN-1027-F1404Operation12
