8.4 RFS-6 Broiler Container Components and Assembly
The RFS-6 Broiler container is composed of the following:
•
Scale Container
•
Valve Motor and Load
•
Scale Valve
Refer to Figure 7.

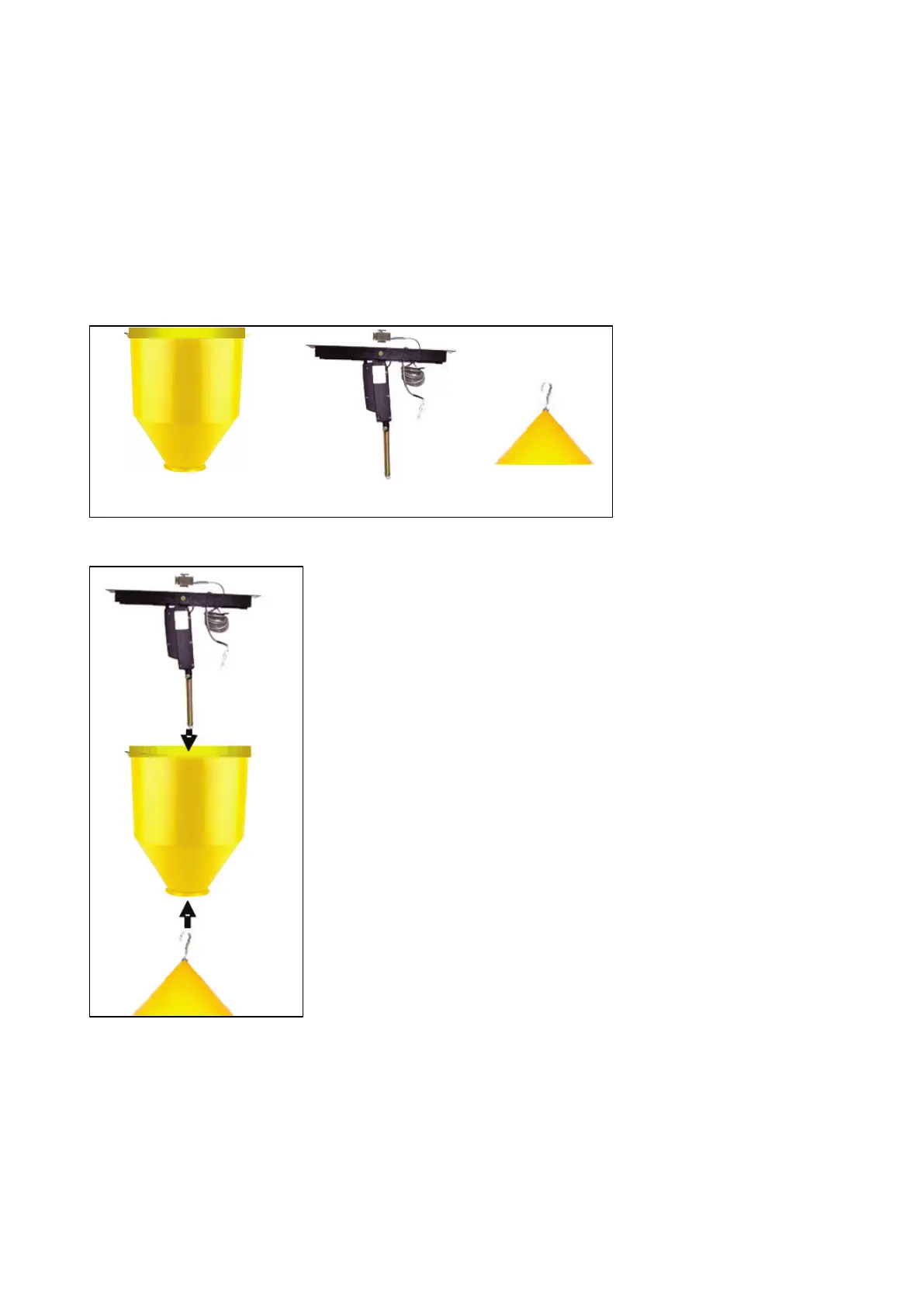

Figure 7: RFS-6 Broiler Container Components
Figure 8: Assembled RFS-6 Broiler
To assemble the RFS-6 Broiler:
1. Insert the Valve Motor and Load Cell component into the top of the Feed Container and screw it
to the container.
2. Insert the Scale Valve component at the bottom of the Scale Container and hook it onto the
Valve Motor.
Scale Container
Scale Valve
Valve Motor+Load Cell
