5-53

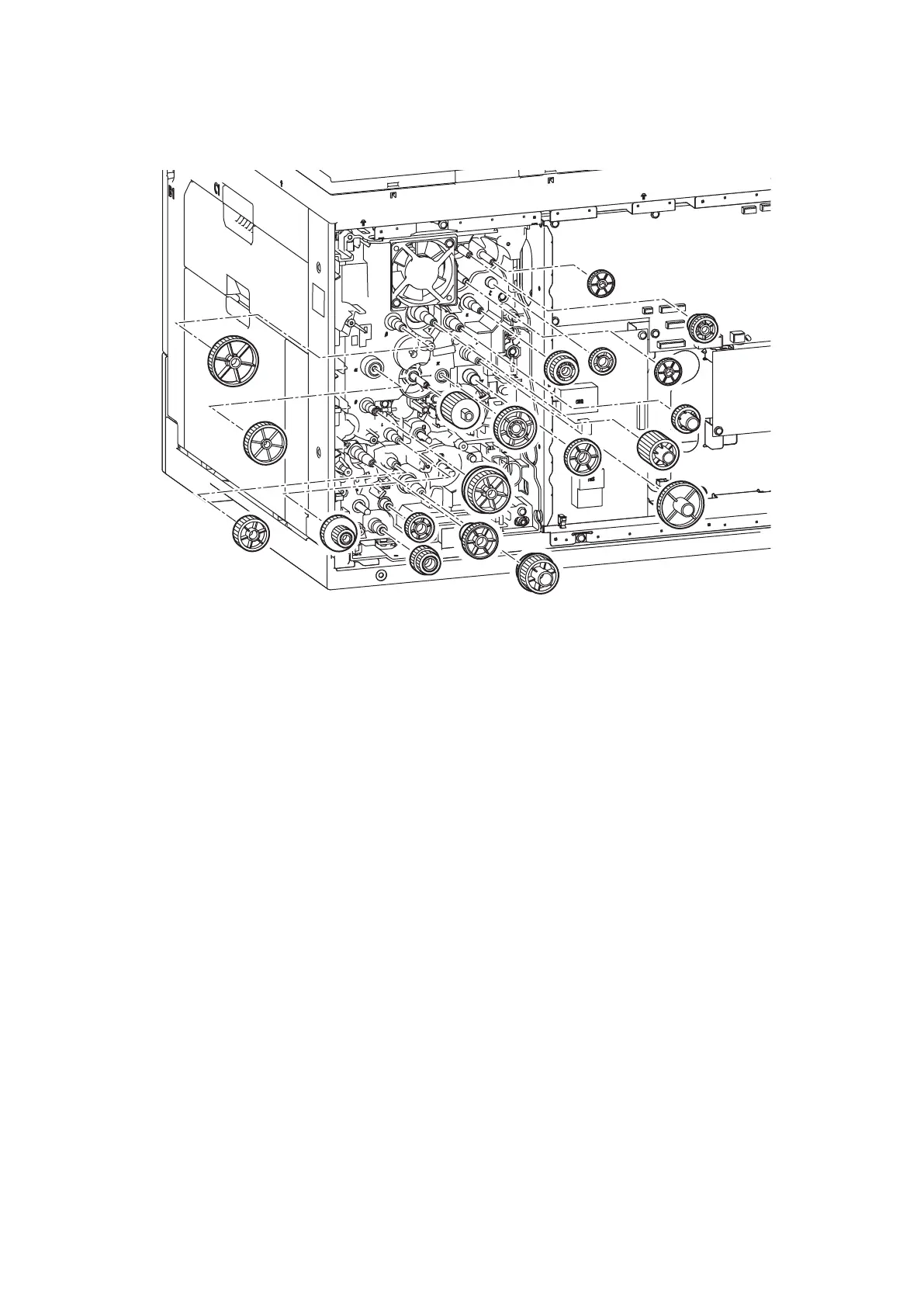

GEARS
1. Remove the Cover back. (See “PCB MAIN” on page 5-36.)
2. Remove the Clutch. (See “CLUTCH” on page 5-51.)
3. Remove the Frame drive A. (See “FRAME DRIVE A” on page 5-52.)
