Introduction1-4

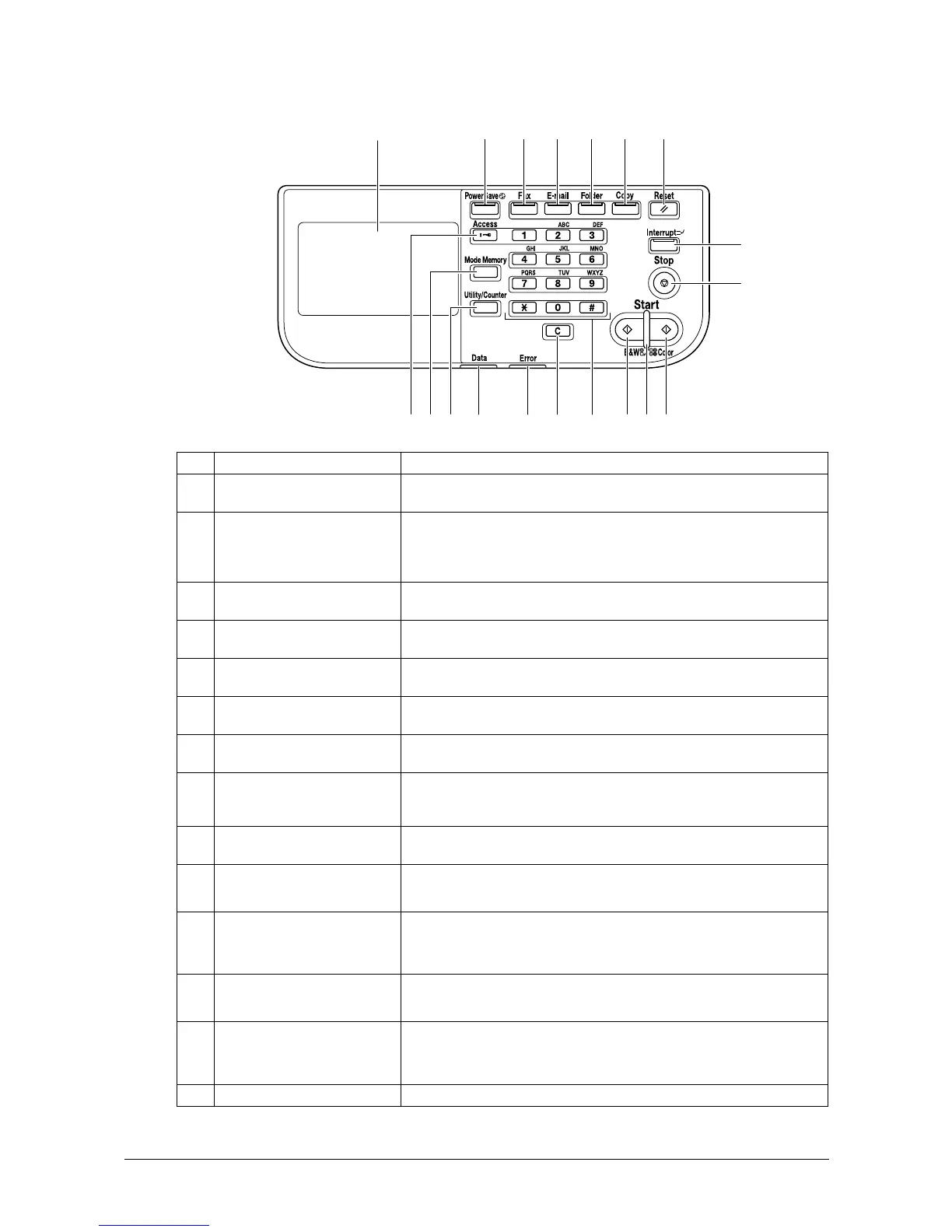

Control panel
No. Name Function
1 Touch panel Displays various screens and messages. Specify the various settings by
directly touching the panel.
2 [Power Save] key/indicator Press to enter Power Save mode. While the machine is in Power Save
mode, the indicator on the [Power Save] key lights up in green and the
touch panel goes off. To cancel Power Save mode, press the [Power
Save] key again.
3 [Fax] key/indicator Press to enter Fax mode. While the machine is in Fax mode, the indica-
tor on the [Fax] key lights up in green.
4 [E-mail] key/indicator Press to enter Scan to E-mail mode. While the machine is in Scan to
E-mail mode, the indicator on the [E-mail] key lights up in green.
5 [Folder] key/indicator Press to enter Scan to Folder mode. While the machine is in Scan to
Folder mode, the indicator on the [Folder] key lights up in green.
6 [Copy] key/indicator Press to enter Copy mode. While the machine is in Copy mode, the indi-
cator on the [Copy] key lights up in green.
7 [Reset] key Press to clear the settings (except programmed settings) of all displayed
functions.
8 [Interrupt] key/indicator Press to enter Interrupt mode. While the machine is in Interrupt mode,
the indicator on the [Interrupt] key lights up in green. To cancel Interrupt
mode, press the [Interrupt] key again.
9 [Stop] key Pressing the [Stop] key while copying, scanning or printing temporarily
stops the operation.
10 [Start (Color)] key Press to start color copying, scanning or faxing.
Press to continue interrupted printing.
11 [Start] indicator Lights up in blue when copying, scanning or faxing can be performed.
Lights up in orange when copying, scanning or faxing cannot be per-
formed.
12 [Start (B&W)] key Press to start black-and-white copying, scanning or faxing.
Press to continue interrupted printing.
13 Keypad Use to enter the number of copies, a fax number, an e-mail address or a
name.
Use to type in the various settings.
14 [C] (clear) key Press to erase numbers or text.
1 2 3 4 5 6 7
8
9
11
12 101819 17
1516 14 13
