Section 78 00-02-0732
2016-02-26 - 13 -

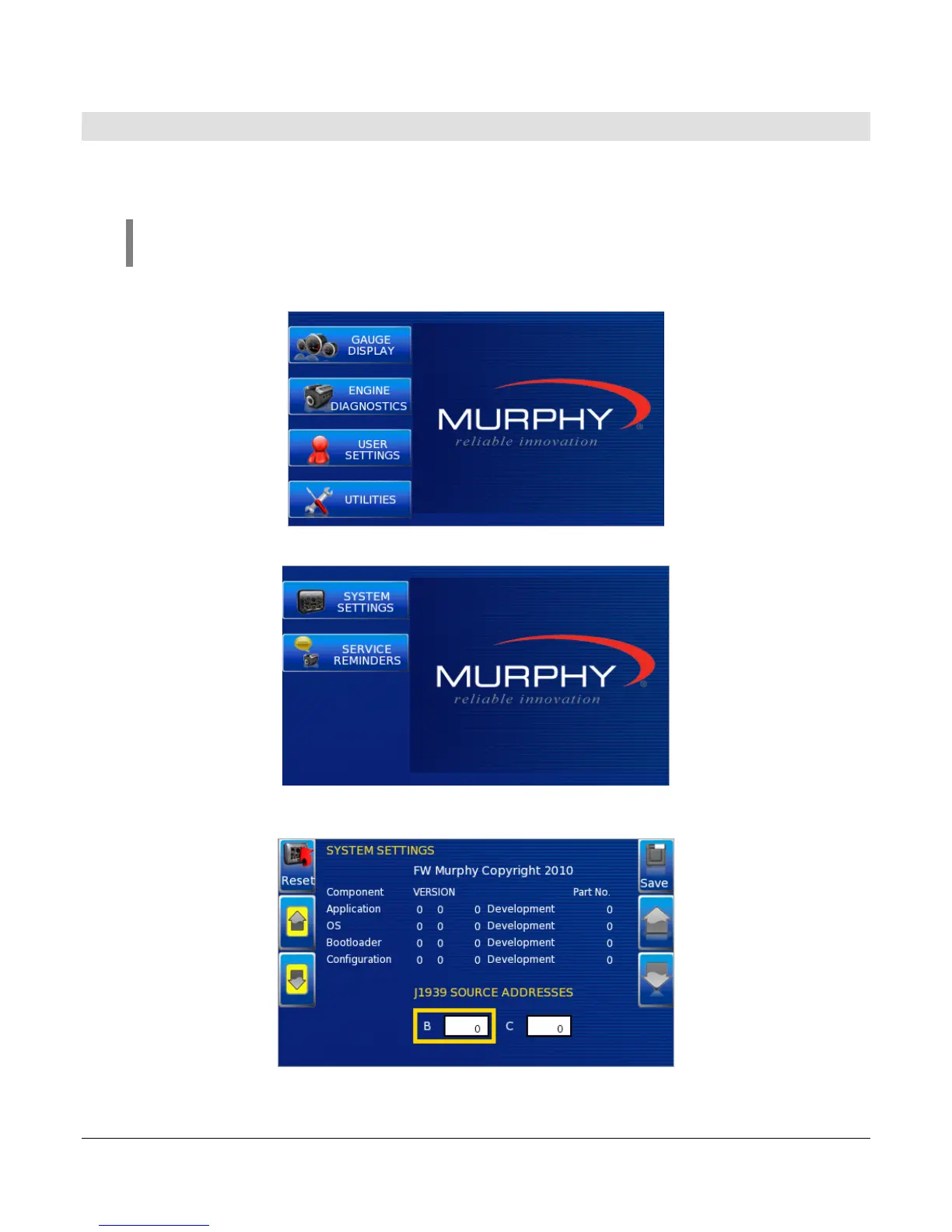

Setting Up your PV450 Display for the First Time
The guidelines presented below are intended for setting up the PV450 display for the first time.
Once the configuration is set up, there is no need to revisit or change any of the settings.
NOTE: If you require assistance during the set up process, contact FW Murphy
customer support at +1(918) 317-4100.
1. At the main menu, press the soft key to the left of ‘Utilities’.
2. The Utilities sub-menu is displayed.
3. From the ‘Utilities’ sub-menu, select ‘System Settings’. The following screen is
displayed.
4. With the cursor highlighting the J1939 source addresses, use the left side soft keys to
scroll through the ports and the right side soft keys to change the address. Press the
To Next Page
