Section 78 00-02-0732
2016-02-26 - 23 -

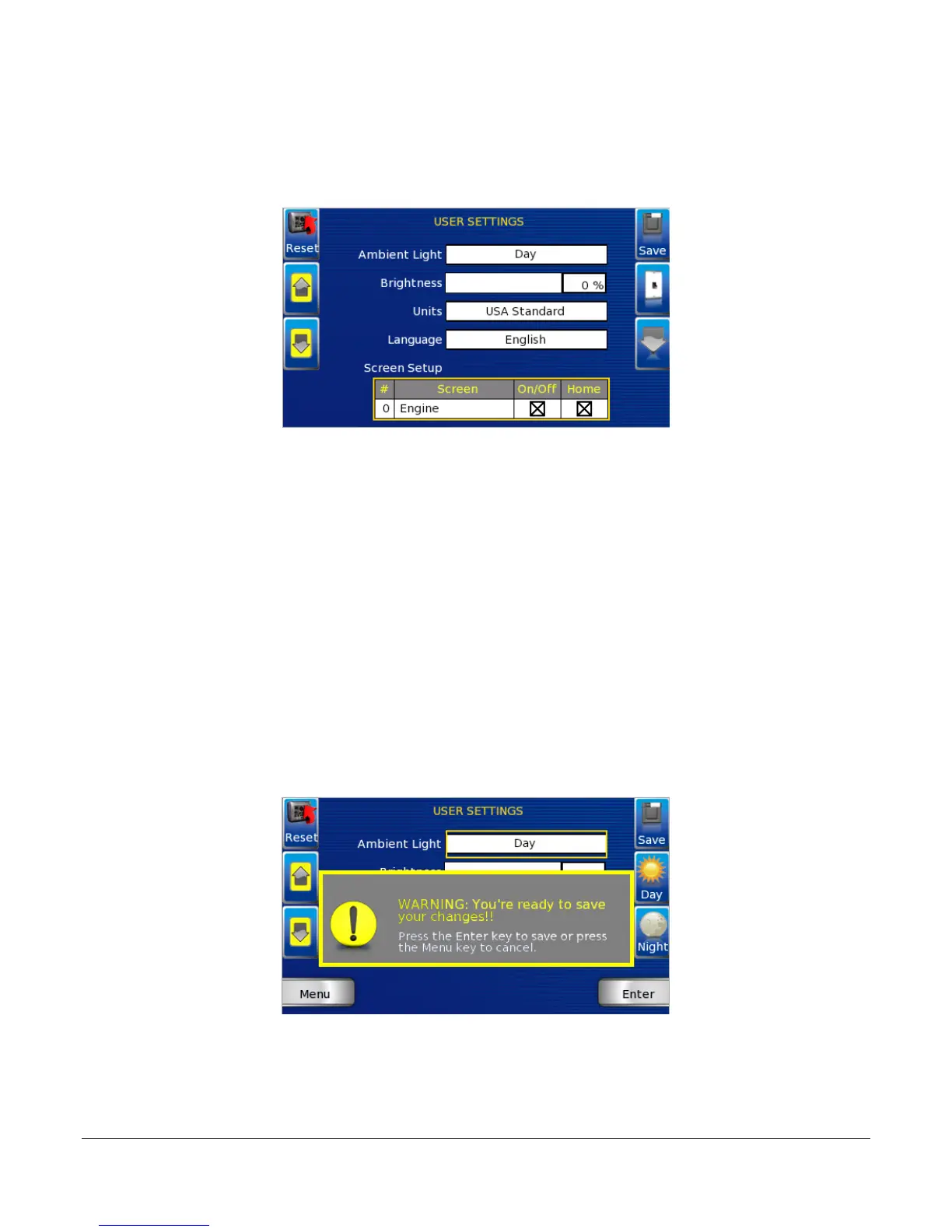

The Screen Setup screen also provides the user the ability to turn the screens ON or OFF by
pressing the Enable/Disable soft key. If a screen is turned OFF, it will not show up when
Gauge Display is activated.
Home Screen
The Home Screen will be the first screen shown when Gauge Display is selected from the
User Setting menu. The Home Screen is set to Engine by default and can be changed using
the Screen Setup options on the User Settings screen.
Video (Optional)
By default, the Video screen is on or ‘Enabled’. To ‘Disable’ video, change Video option to
‘Off’ in the screen setup dialog box using the Enable/Disable key in the top right corner. An
updated image showing video screen highlighted / off will be displayed.
Save
Once all changes have been made, press Save. The following confirmation screen is
displayed.
