Gauge Display
The Gauge Display screen consists of several predefined layouts that contain combinations of
analog gauges, straight bar gauges, or digital (text) readouts. These screens are displayed
upon startup.
To scroll through the various gauge screens, press the Prev and Next soft keys. This can be
repeated until all screens have been viewed. The currently displayed screen will stay active
until another key is pressed.
Soft Key Commands

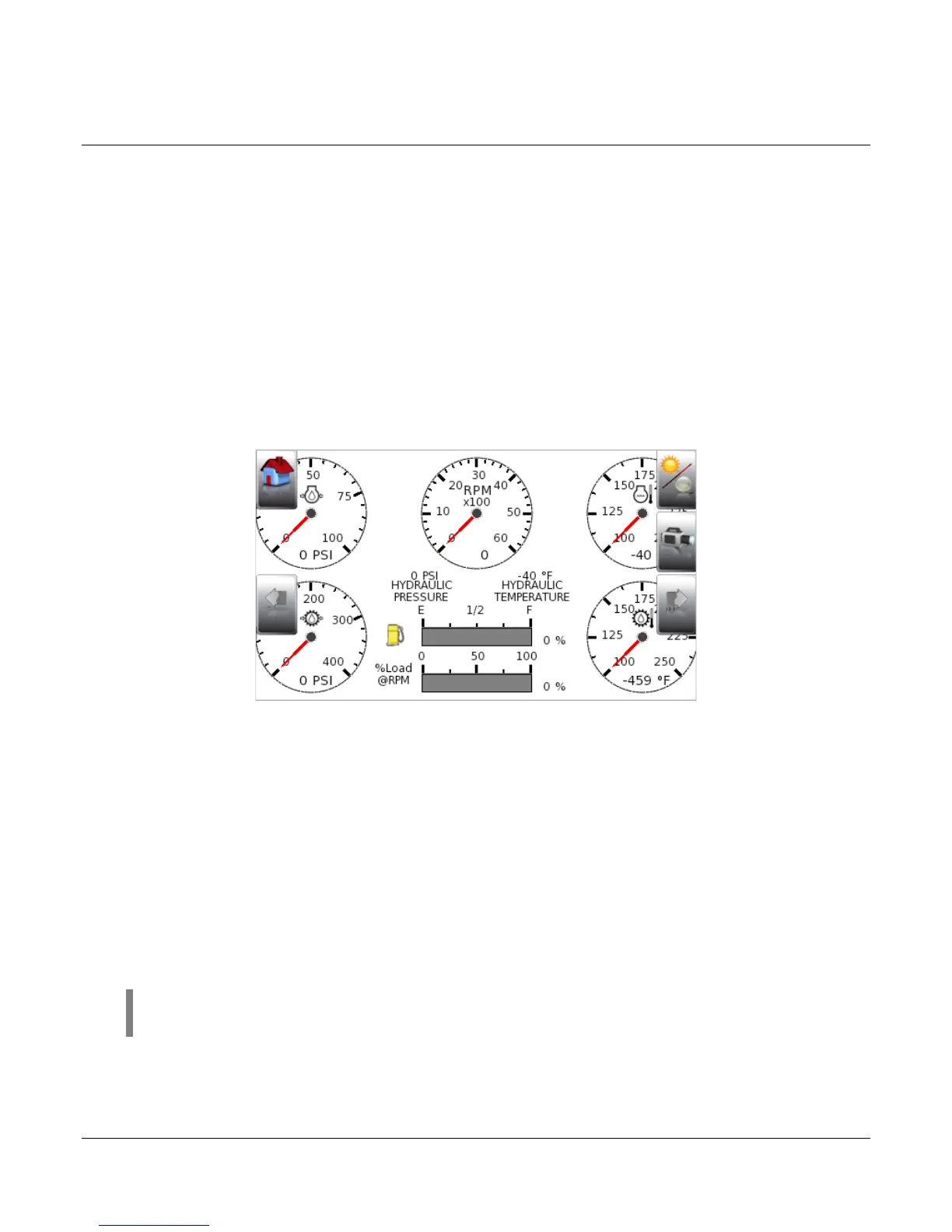

When a Gauge Display screen is active, pressing the Enter key will display soft key
commands, as shown below. Continuing to press Enter will toggle through any additional soft
keys, and will eventually remove the soft key commands from the screen.
Soft Key commands provide quick navigation and access to the following features:
• Home
• Prev
• Day/Night
• Video (optional)
• Next
Home - This one-touch navigation feature allows a pre-defined Home screen to be accessed
from the available Gauge Display screens. Once selected, the Home screen will be displayed
anytime the Home key is pressed.
NOTE: For instructions on how to setup the Home screen, refer to the “User
Settings” section of this manual.
