Maintenance Manual – SC Cutting Plotter
110 AP-74030, Rev / B

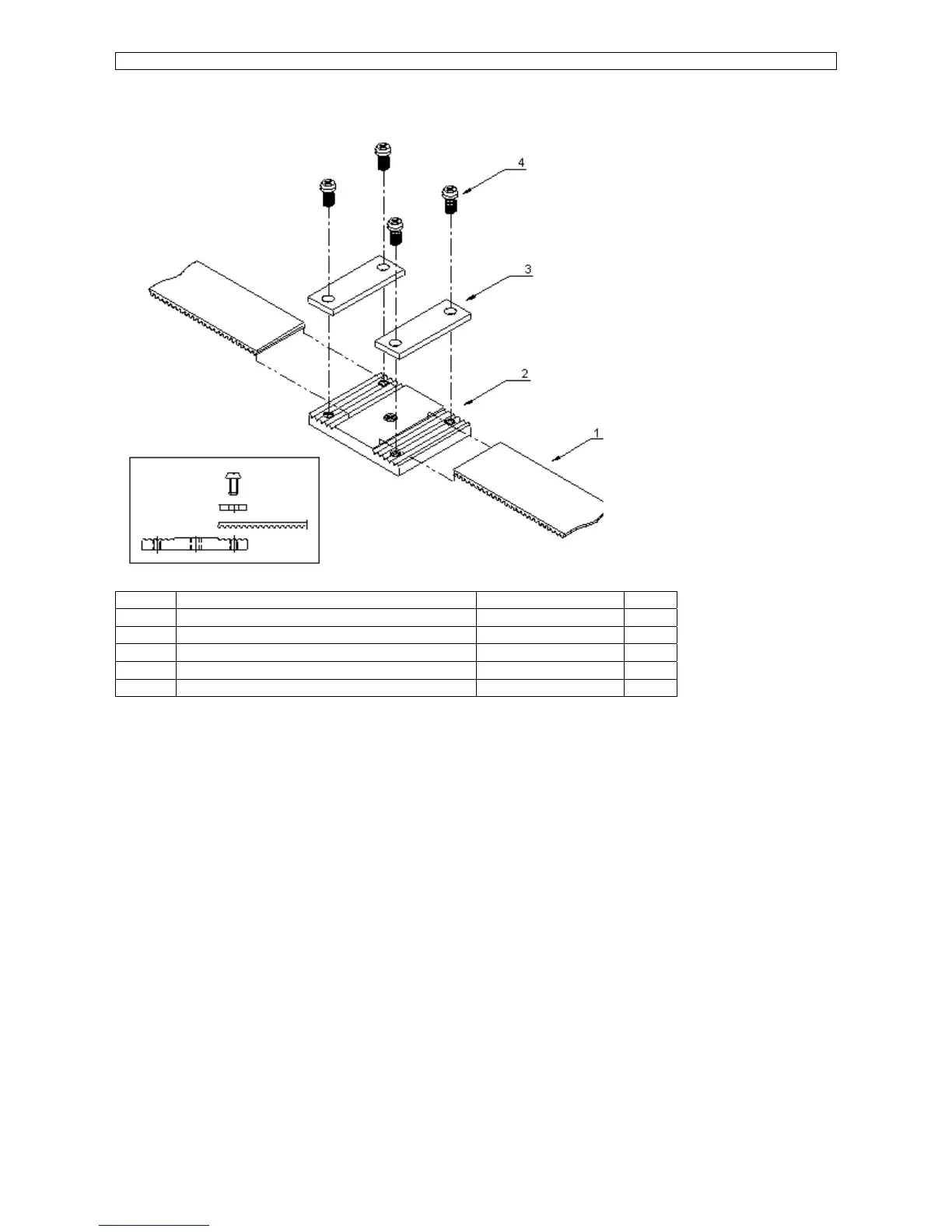

9.9. Y-axis drive belt assy SC-550.
Ref. Description Partnumber Qty
# Y-drive belt assy MY-20561 1
1 Y-drive belt SC-550 ME-20561 1
2 Belt connection plate ME-10107 1
3 Pressure plate ME-10108 2
4 Screw M3x6 DR-6210-303006 4
