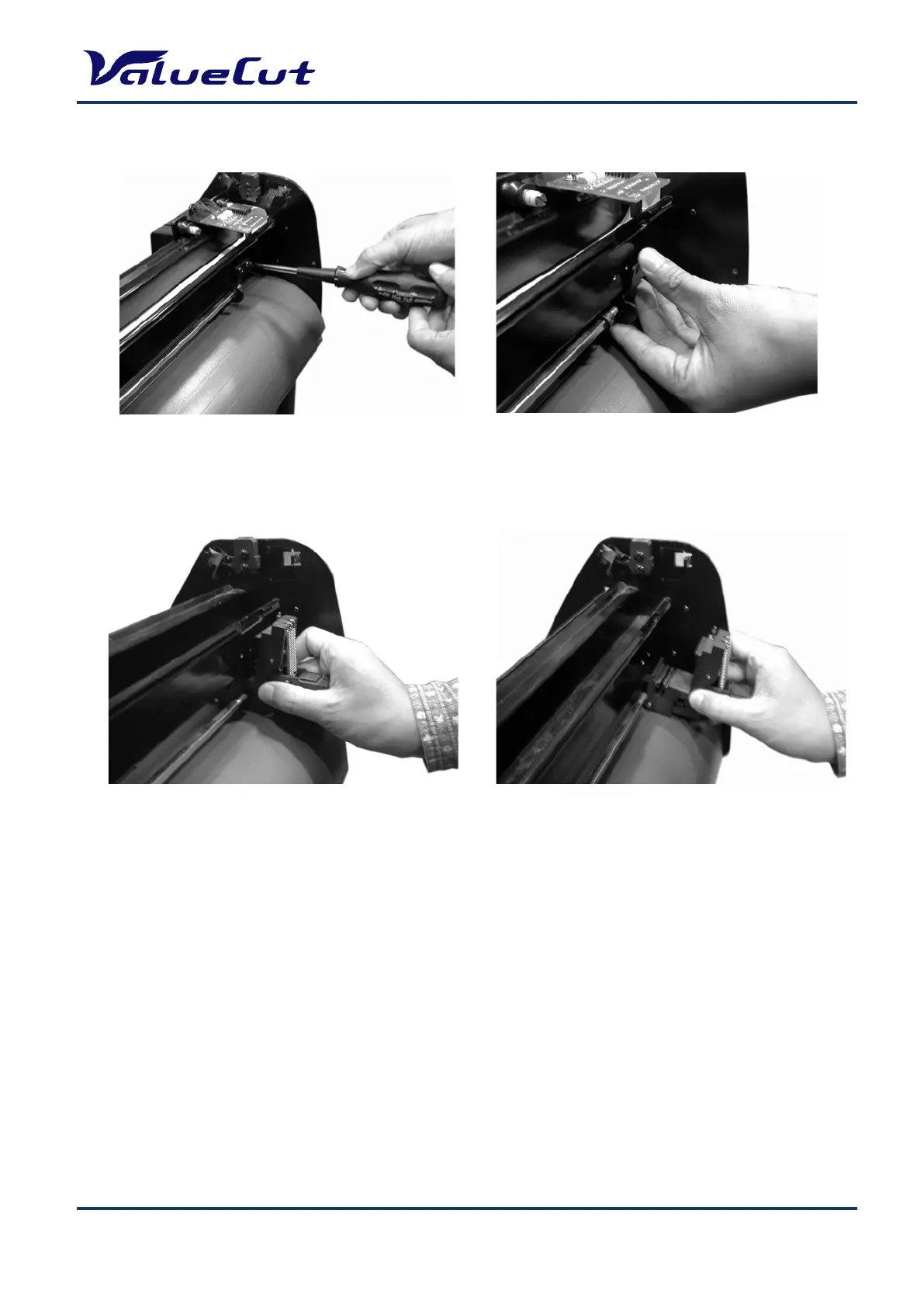

To Remove the Square Bar Holding Bracket:
To Remove the Pinch Roller Sets:
1. Unscrew the 2 bracket screws.
2. Remove the bracket and washer.
1. Slide the pinch roller to the notch at the
right end of the Square Bar.
2. Remove the pinch roller set through the
notch.
