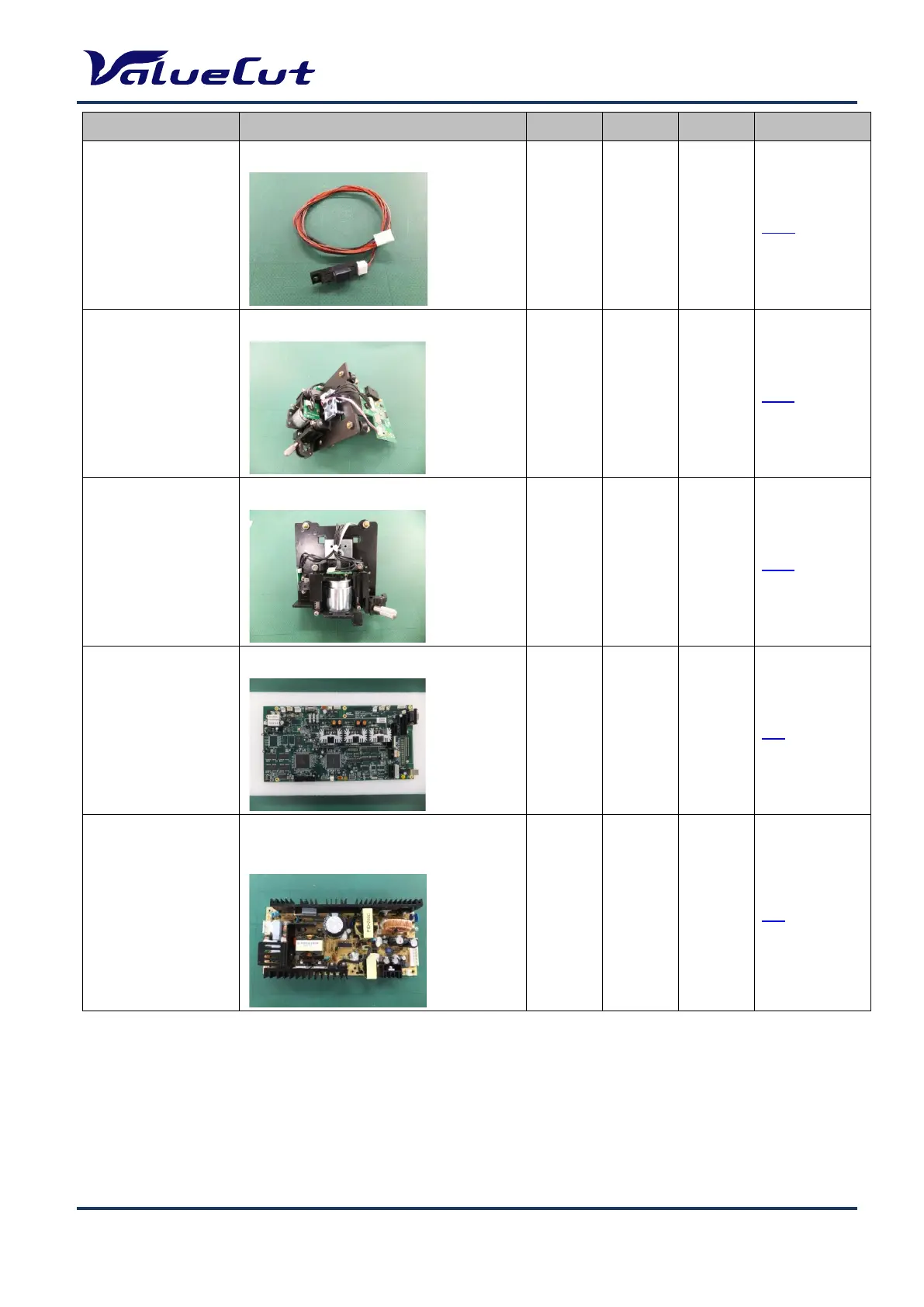

Part no. Part name VC-600 VC-1300 VC-1800 Location
ME-G29004856G-00
Paper Sensor Assembly VC18
V
H-15
ME-G29004680G-00
Carriage assembly VC6/VC13
V V A-36
ME-G29005316G-00
Carriage assembly VC18
V
A-36
ME-G29005378G-00
2 in 1 Cutter main board
V V V B-5
ME-G24500083G-00
250W Isolated Dual Output with PFC
Function(PID-250C)
V V V B-3
