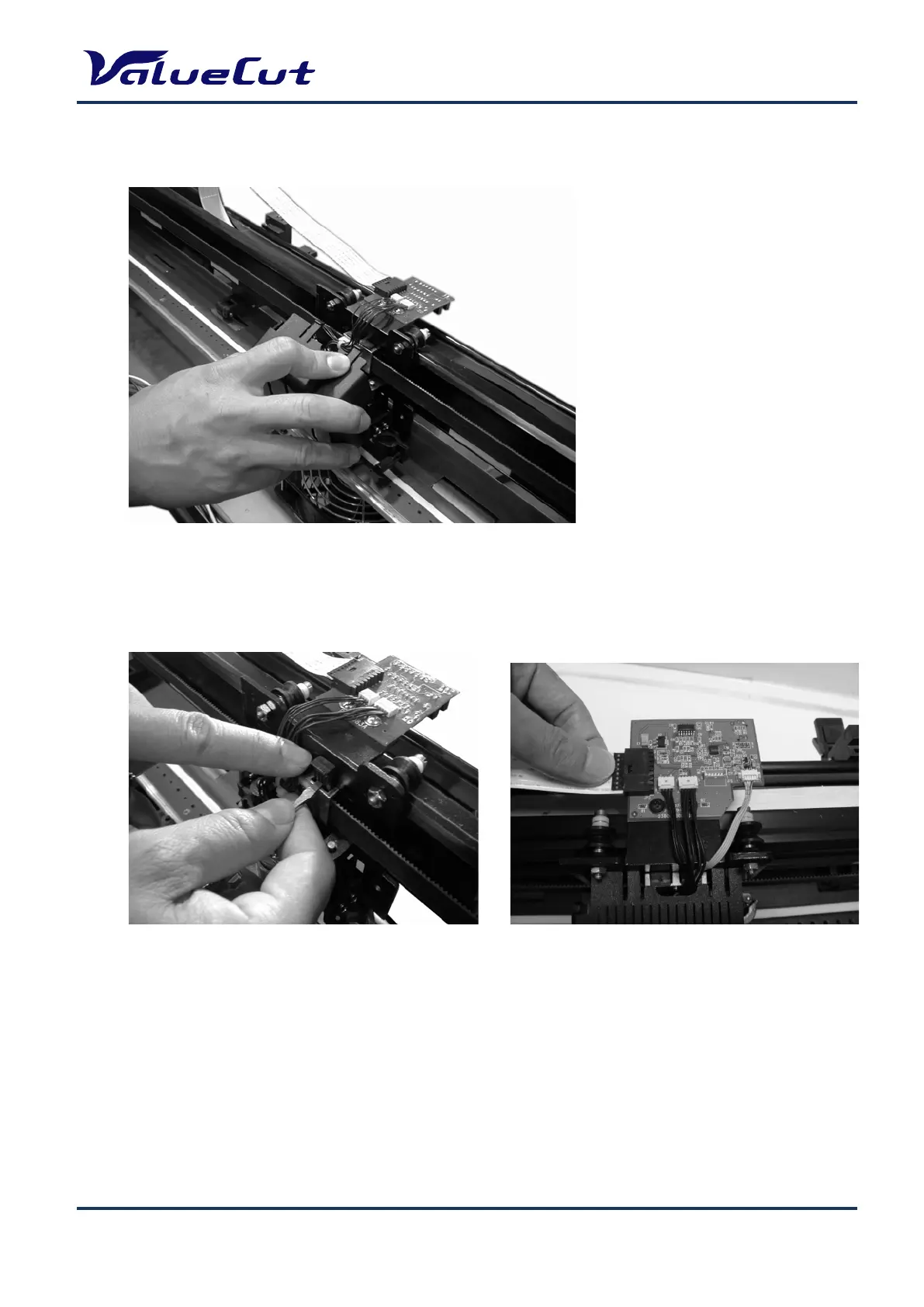

To Remove the Tool Carriage cover:
To Prepare the Tool Carriage for Removal:
1. Depress the two locking clips at the top of the Tool Carriage Cover and pull the Cover
away.
1. Pop up the plastic locking pins using a
flathead screwdriver.
2. Disconnect the Flat Sensor Cable.
