MAINTENANCE MANUAL
VCE-MM-02
26
Note1: To install a new Tool Carriage or replace the original Tool Carriage simply reverse the steps
for Tool Carriage removal.
Note2: Remember to separate the Sprung Washer/Rollers, and then place them on the Carriage track
before you swing the Tool Carriage back into place

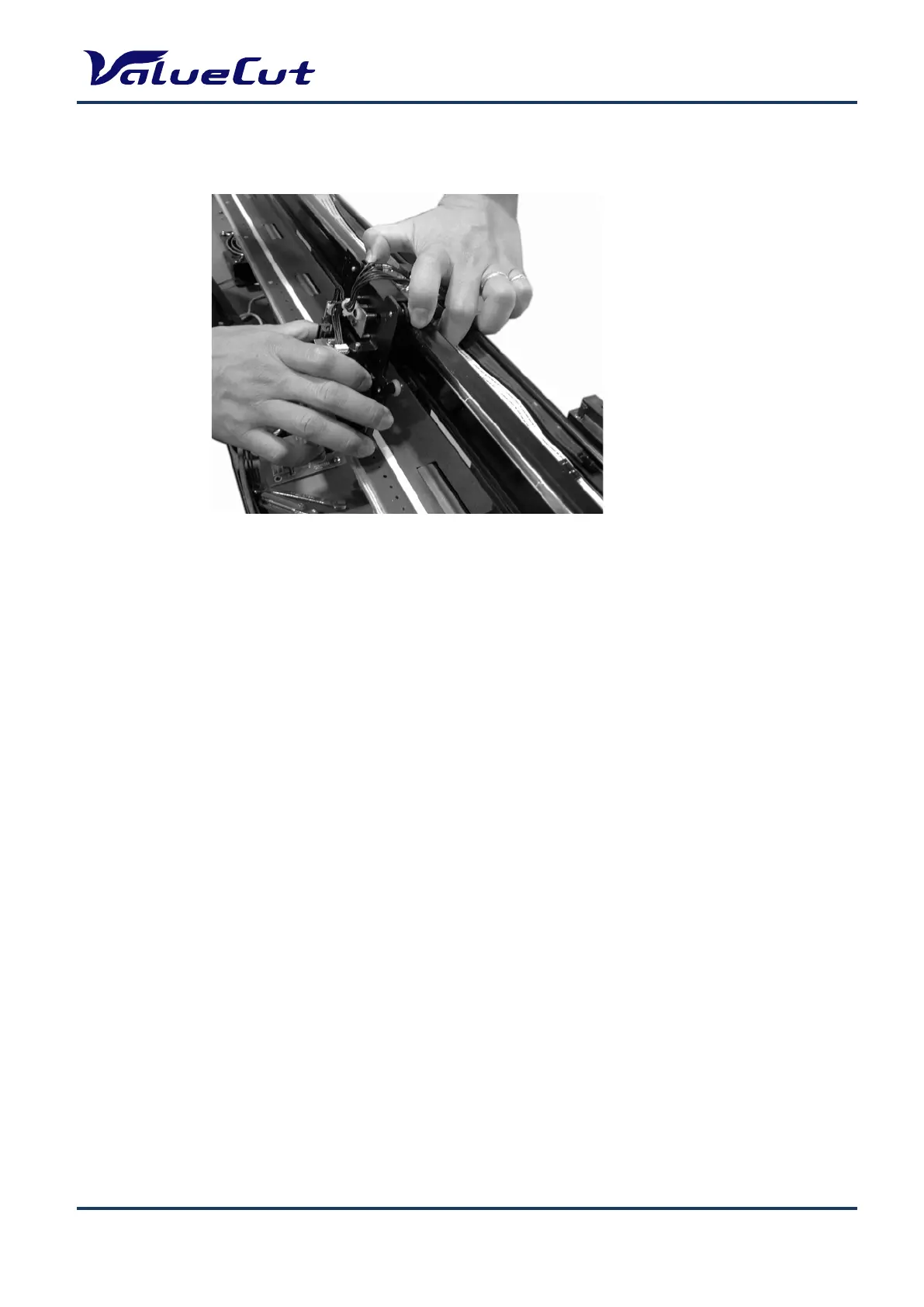

2. Swing the Tool Carriage down and out while keeping the
Sprung Washer/Rollers apart.
