MWE LAB EMPEROR XT - FRONT PLATE

MWE LAB – EMPEROR XT USER MANUAL - January 2017v1
EMPEROR XT - USER MANUAL
17
14.1

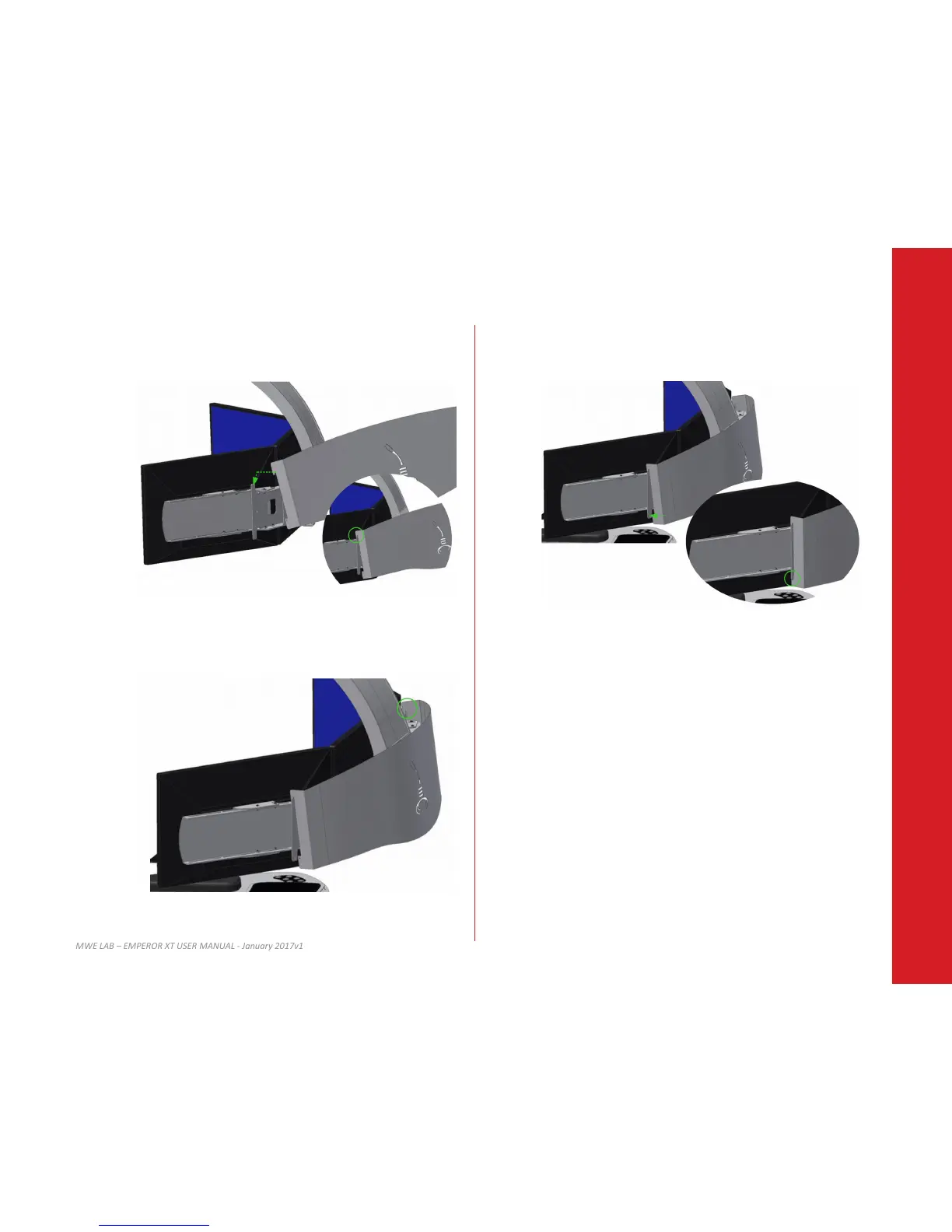

Align, and insert the top le front plate hook into the top le monitor mount indent as
shown below.
14.3
Slide boom plate into boom monitor mount indent on both sides.
14.2
Bend gently the front plate in order to align and insert the other front plate hook in the
right monitor mount indent.
14 FRONT PLATE
LEDs connecons
