mycom 1612LSC series - Outer Dimensions and Lifting Position; Separating High-stage and Low-stage Blocks

2202L5JE-DA-C5-N_2015.05.
2 Compressor Specifications and Structure
Compound 2-stage Screw Compressor 2.3 Compressor Specifications
1612LSC Speed Increaser Type
2-4
2.3.3 Outer Dimensions

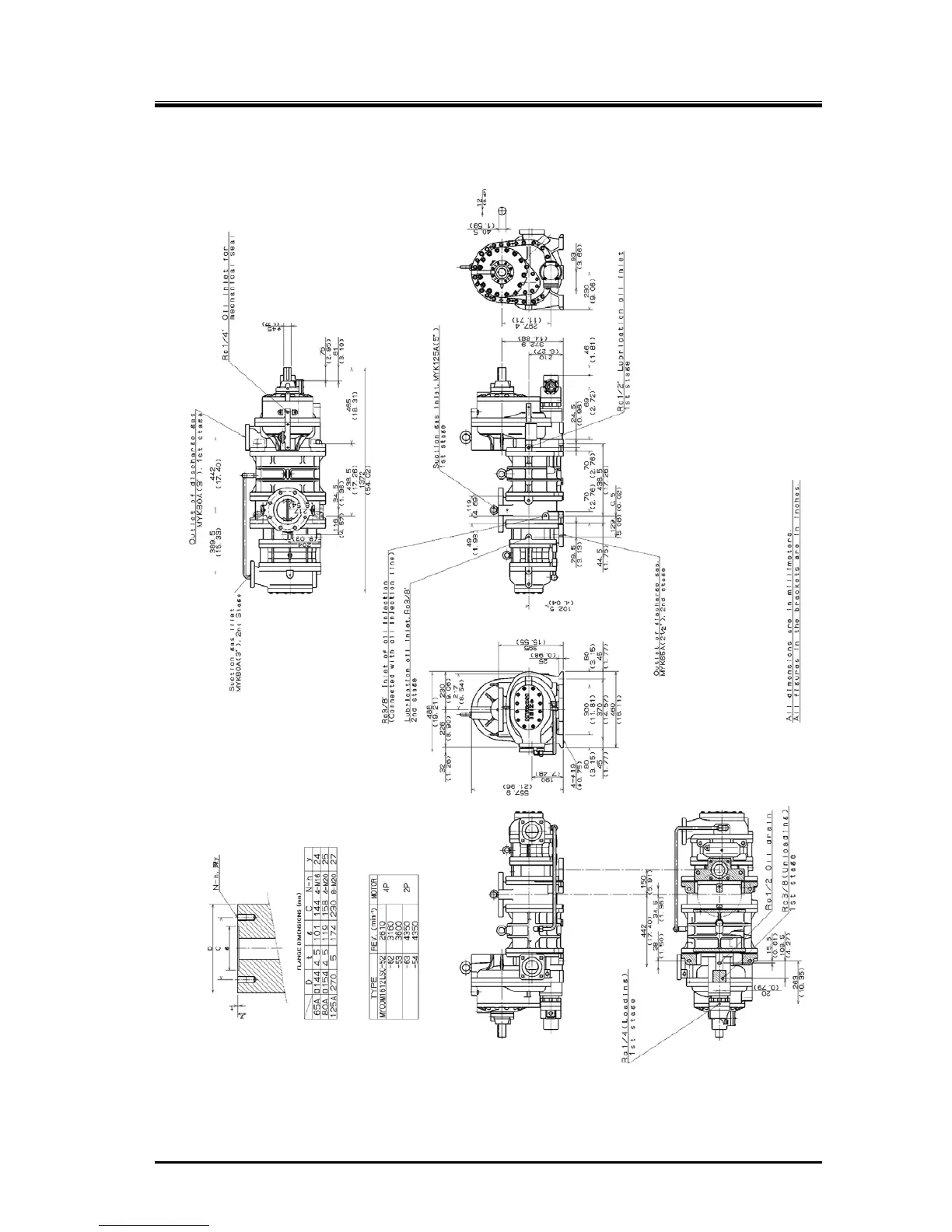

Figure 2-1 1612LSC Speed Increaser Type Outer Dimensions
