Nabco 710 - Mounting Magnetic Switch Assembly

Model 710 Swing Door System
NABCO
ENTRANCES INC 877-622-2694 www.nabcoentrances.com - 9 -
R/L
Mounting Magnetic Switch subassy
5/16-18 x 3/4" Hex Washer Head, Type F P/N 24-4941-19
Door
Closed Switch
Back
Check
Switch
For
RIGHT HAND
Units
For
LEFT HAND
Units
Door
Closed
Switch
Back
Check Switch
3
4 2 1124
3
Magnetic Switch Right Hand P/N 21-9941-01
Magnetic Switch Left Hand P/N 21-9941-02
DN0038

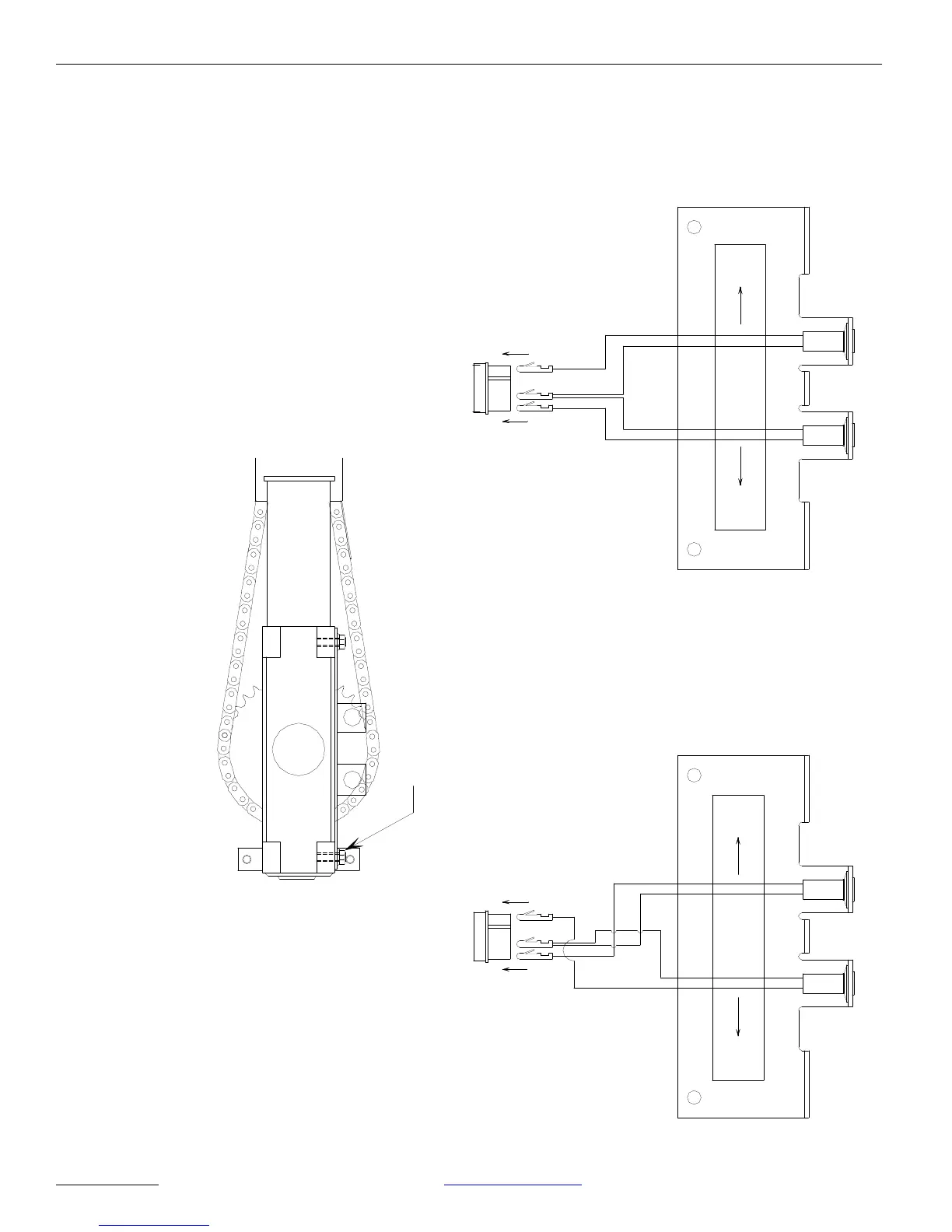

Figure 4 – Magnetic Switch assembly
