40.

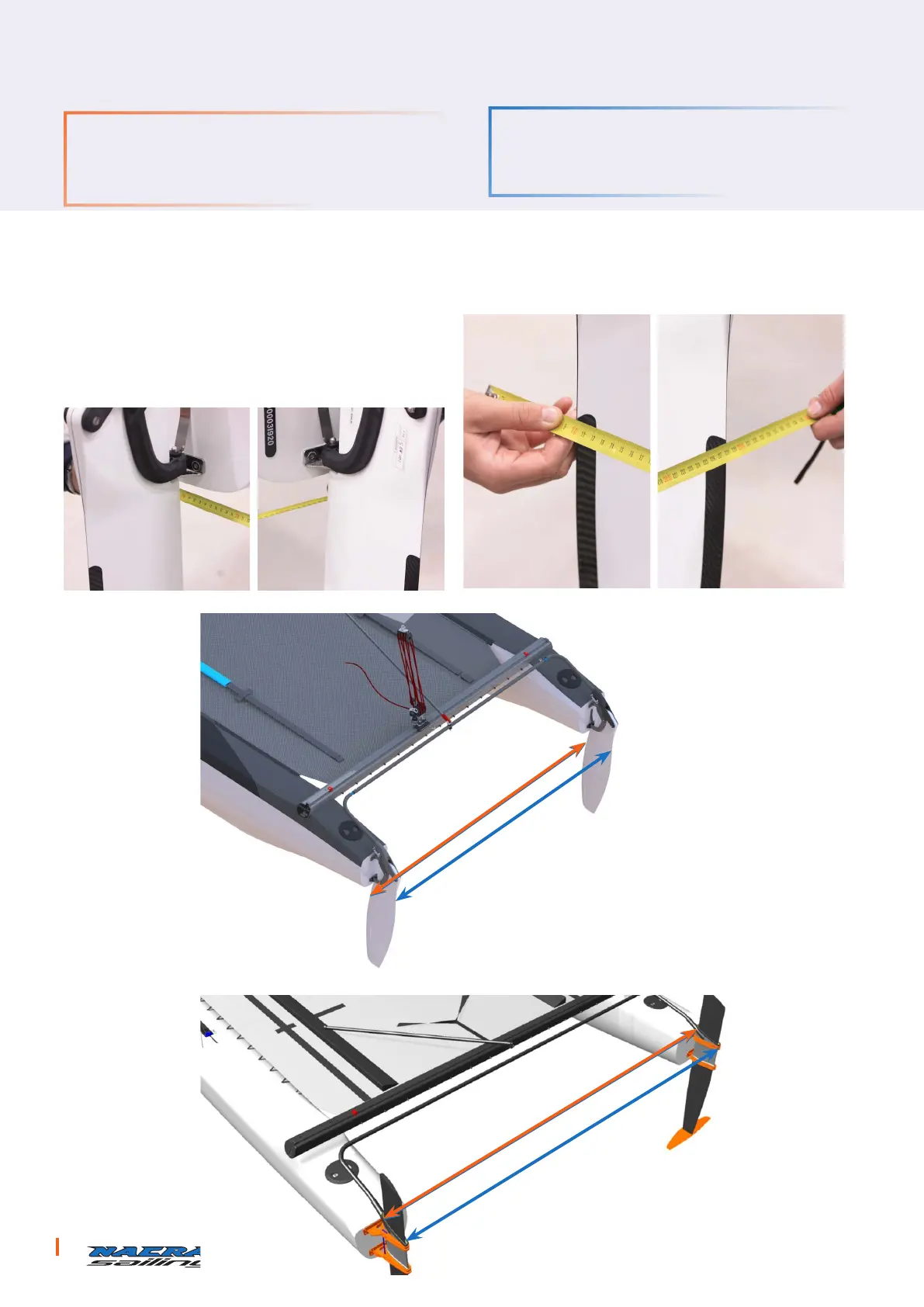

1. Measure the distance between the leading edges of the
rudder blade (see A in the illustration below) and compare
this length with the distance between the trailing edges
(see measurement B).
2. For correct alignment, the distances must be equal to
each other, or the trailing edge (measurement B) distance
should be 0 to 2mm longer than the leading edge
measurement A.
Port Stbd
A A
A
B +2mm
Port Stbd
B B
Tools needed:
- Phillips head screwdriver
- Measurement tape
- 3mm drill
5.3. Rudder alignment
Rudder alignment determines the majority of how
your boat feels on the water.
Alignment does require milimeter precision! Take
the time to do this right or ask your dealer for help.
A
B +2mm
