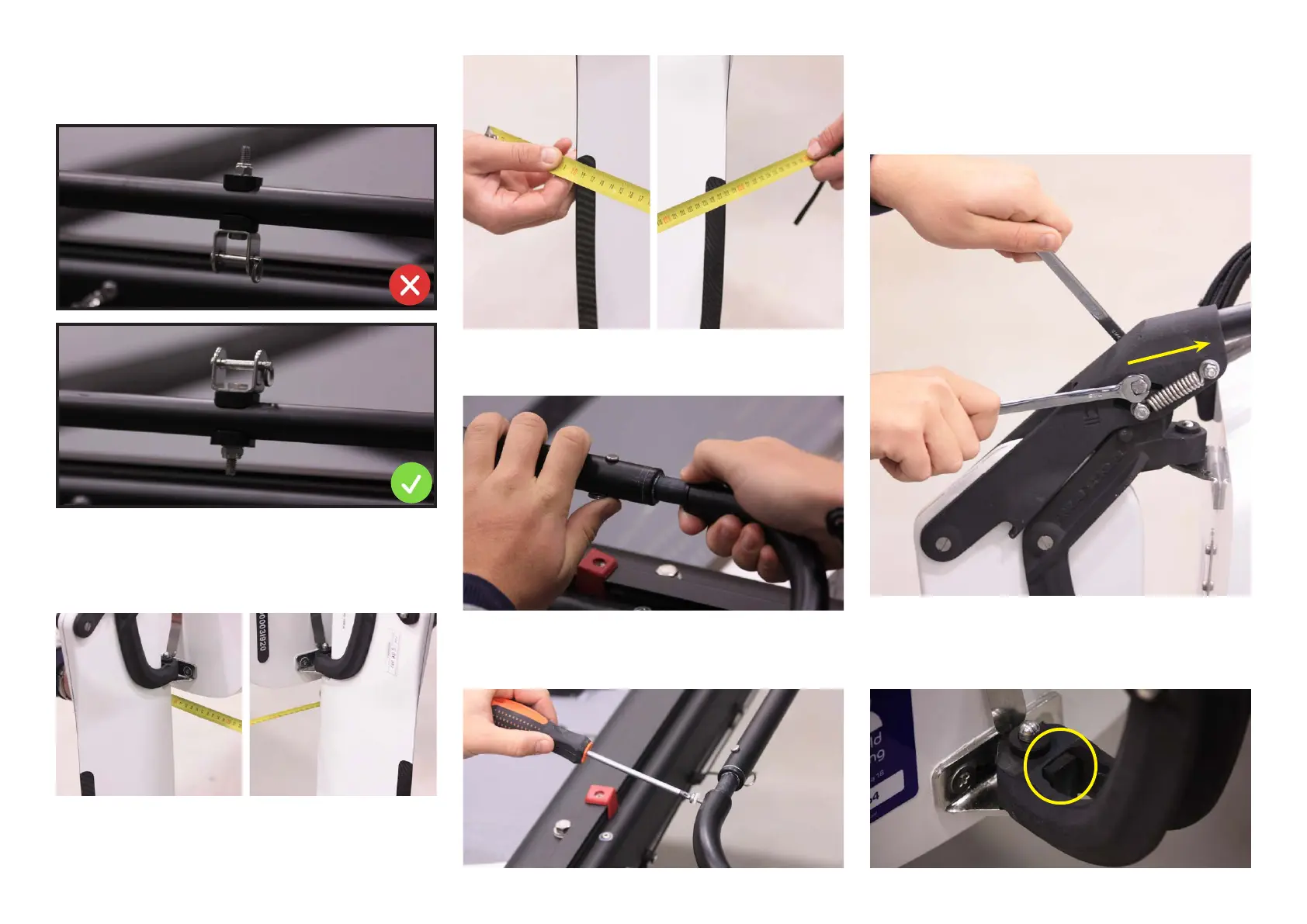

10. Measure the length between the middle of the
rudder at the back and front of the rudders.
• Measure at the same horizontal level and
start at 10 cm to measure more precisely.
9. Place the tiller crossbar in between the arms.
• Check if the connector for the tiller extension
is on top.
11. The rudders must face 2 mm inwards, this is
adjustable by changing the rod length.
Port Stbd
Port Stbd
12. Check if the rod length is the same at both sides
and pre-drill with the 3mm drill before you
screw the philips screw.
25
14. If you want to change the rudder rake, change
the rubber for a smaller or bigger rubber.
• Parts are available at www.webshop.
nacrasailing.com
13. Fix the sliding bolt for the kick up tension. Push
the bolt forward and x the bolt while you’re still
pushing forward. The sliding bolt needs to be
tightend rmly.
• Use the two 7/16 wrenches.
