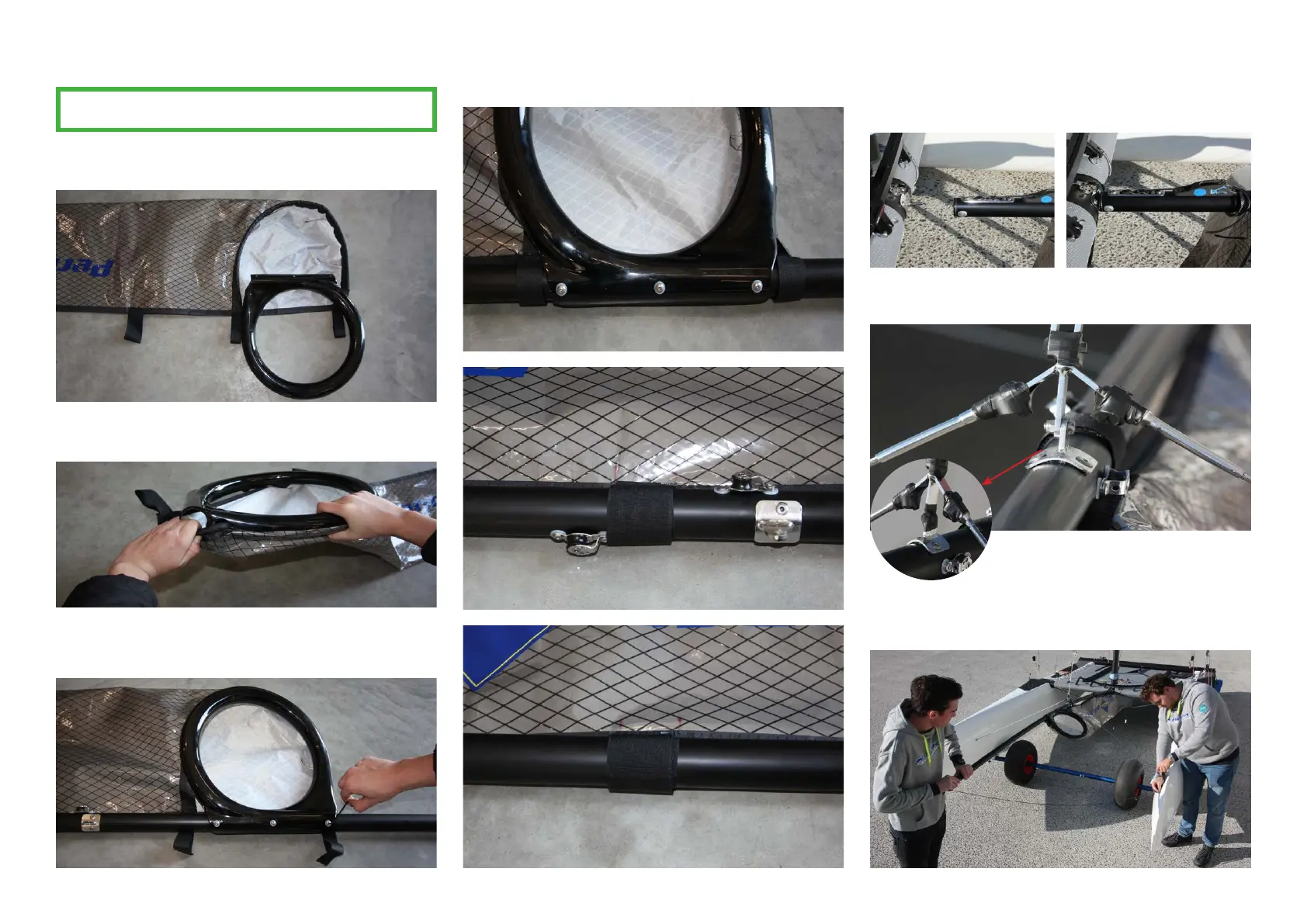

Nacra F18 Evolution - Bowsprit

4.4 Snuerbag
1. Use the bowsprit, snuffer ring and snufferbag
and the allen tool size 3.
2. Slide the snuerbag into the slot of the snuer
ring.
3. Unscrew the 3 hexscrews out of the bowsprit.
4. Install the snuerring handtight on the bowsprit.
4.5 Bowsprit
1. Slide the spipole over the bowsprit pin on the
front crossbar.
2. Install the bowsprit to the bridle connector, with
the bolt and the nut.
3. Push the bowsprit gently down in order to install
the bowsprit bridle line on the bridle pin with
the shackle narrow.
5. Install the snuerbag on the spipole using the
velcro band.
30
Tools needed:
- Allen tool size 3
