NAD 512 - Mechanism Parts List Continuation; Mechanism Component Details

note ented at th en et mle aR tabaci aaa ne ac enone nee ne

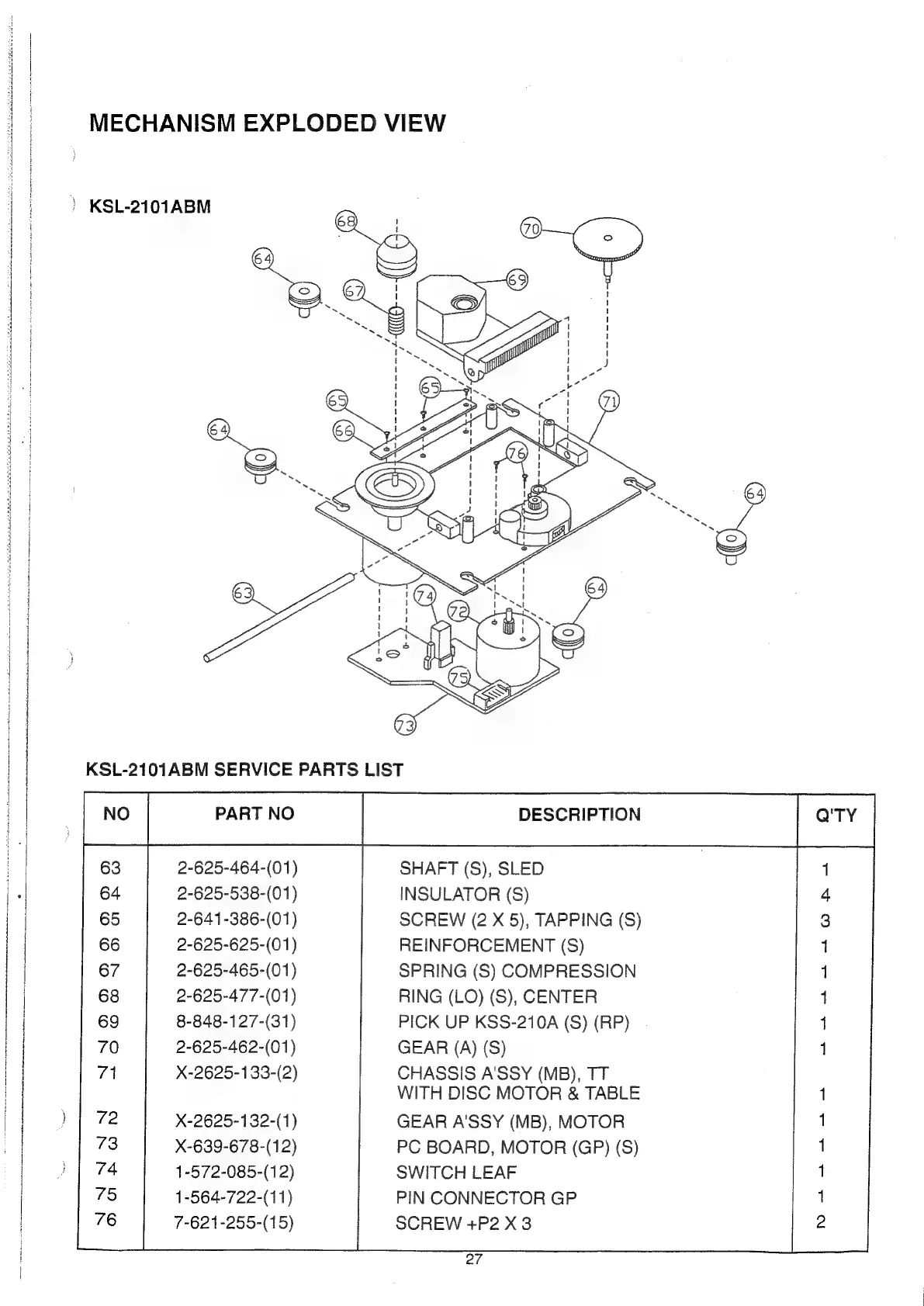

MECHANISM EXPLODED VIEW
)
63
KSL-2101ABM
/
4
op aig Se ewe Sae es as
Dew Ae) e/
/
KSL-2101ABM SERVICE PARTS LIST
64
2-625-464-(0
2-625-538-(0
2-641-386-(0
2-625-625-(0
2-625-465-(
2-625-477-(0
8-848-127-(3
2-625-462-(0
X-2625-133-(2)
X-2625-132-(1)
X-639-678-(12)
1-572-085-(
1-564-722-(
7-621-255-(
0
PART NO DESCRIPTION
SHAFT (S), SLED
INSULATOR (8)
SCREW (2 X 5), TAPPING (S)
REINFORCEMENT (S)
SPRING (S) COMPRESSION
RING (LO) (S), CENTER
PICK UP KSS-210A (S) (RP)
GEAR (A) (S)
CHASSIS A'SSY (MB), TT
WITH DISC MOTOR & TABLE
GEAR A'SSY (MB), MOTOR
PC BOARD, MOTOR (GP) (S)
SWITCH LEAF
PIN CONNECTOR GP
SCREW +P2 X 3
27
