NAD 512 - Electrical Parts List; Capacitors

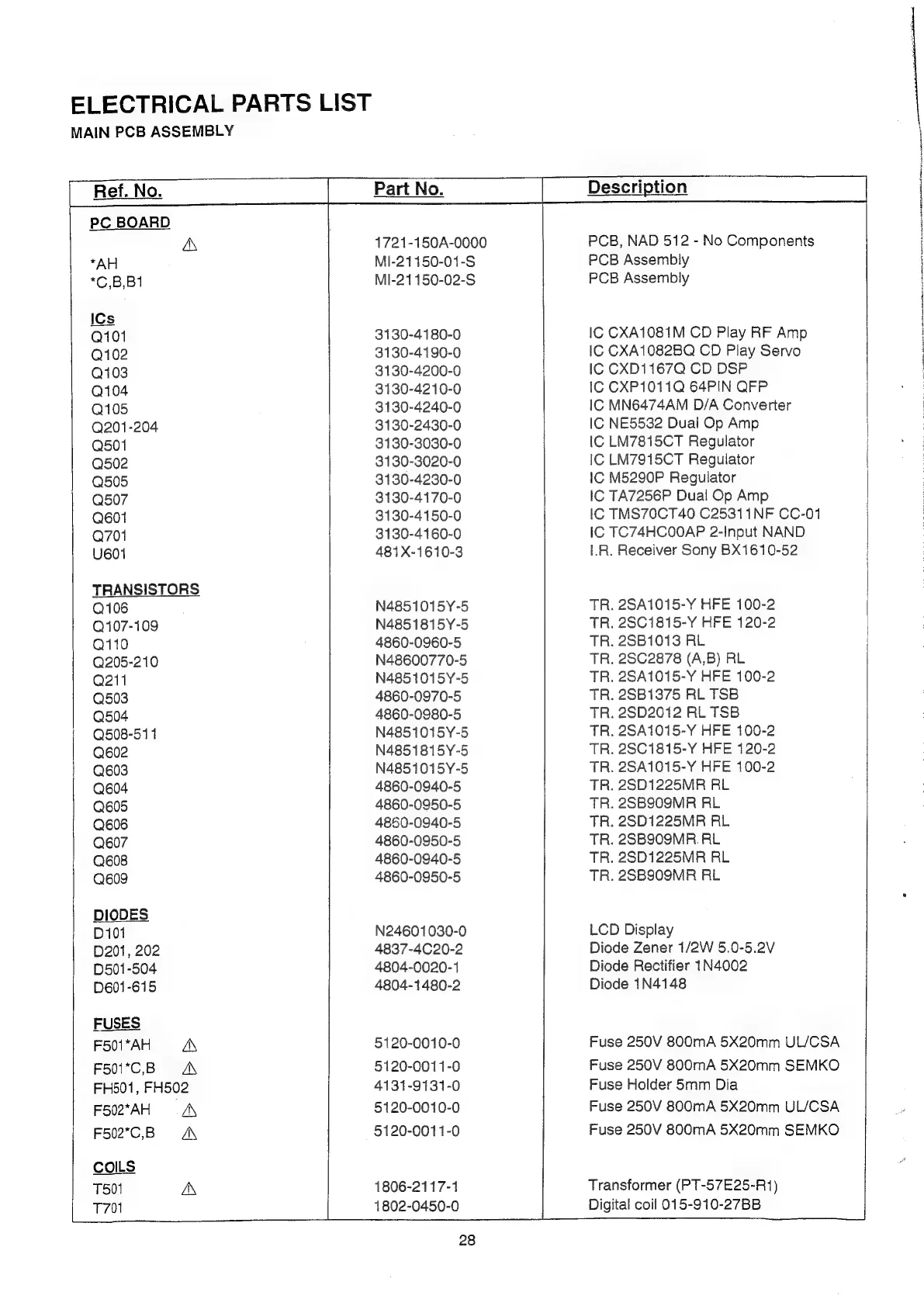

ELECTRICAL
PARTS
LIST
MAIN PCB ASSEMBLY
Ref. No.
PC BOARD
AN
“AH
*C,B,B1
ICs
Q101
Q102
Q103
Q104
Q105
Q201-204
Q501
Q502
Q505
Q507
Q601
Q701
U601
TRANSISTORS
Q106
Q107-109
Q110
Q205-210
Q2i1
Q503
Q504
Q508-51 1
Q602
Q603
Q604
Q605
Q606
Q607
Q608
Q609
DIODES
D101
D201, 202
D501-504
D601-615
FUSES
F501*AH A
F5o1*C,.B AN
FH501, FH502
F502*AH = AV
F502°C,B AM
COILS
7501 AN
a a oot Be ee ee
Part No.
1721-150A-0000
MI-21150-01-S
MI-21150-02-S
3130-4180-0
3130-4190-0
3130-4200-0
3130-4210-0
3130-4240-0
3130-2430-0
3130-3030-0
3130-3020-0
3130-4230-0
3130-4170-0
3130-4150-0
3130-4160-0
481X-1610-3
N4851015Y-5
N4851815Y-5
4860-0960-5
N48600770-5
N4851015Y-5
4860-0970-5
4860-0980-5
N4851015Y-5
N4851815Y-5
N4851015Y-5
4860-0940-5
4860-0950-5
4860-0940-5
4860-0950-5
4860-0940-5
4860-0950-5
N24601030-0
4837-4C20-2
4804-0020-1
4804-1480-2
5120-0010-0
5120-0011-0
4131-9131-0
5120-0010-0
5120-0011-0
1806-2117-1
1802-0450-0
28
Description
PCB, NAD 512 - No Components
PCB Assembly
PCB Assembly
IC CXA1081M CD Play RF Amp
IC CXA1082BQ CD Play Servo
IC CXD1167Q CD DSP
IC CXP1011Q 64PIN QFP
IC MN6474AM D/A Converter
IC NE5532 Dual Op Amp
IC LM7815CT Regulator
IC LM7915CT Regulator
iC M5290P Regulator
IC TA7256P Dual Op Amp
IC TMS70CT40 C25311NF CC-01
IC TC74HCOOAP 2-Input NAND
|.R. Receiver Sony BX1610-52
TR. 2SA1015-Y HFE 100-2
TR. 28C1815-Y HFE 120-2
TR. 28B1013 RL
TR. 2802878 (A,B) RL
TR. 2SA1015-Y HFE 100-2
TR. 28B1375 RL TSB
TR. 28D2012 RL TSB
TR. 2SA1015-Y HFE 100-2
TR. 28C1815-Y HFE 120-2
TR. 2SA1015-Y HFE 100-2
TR. 2SD1225MR RL
TR. 2SB909MR RL
TR. 2SD1225MR RL
TR. 2SB909MR RL
TR. 2$D1225MR RL
TR. 2SB909MR RL
LCD Display
Diode Zener 1/2W 5.0-5.2V
Diode Rectifier 1N4002
Diode 1N4148
Fuse 250V 800mA 5X20mm UL/CSA
Fuse 250V 800mA 5X20mm SEMKO
Fuse Holder 5mm Dia
Fuse 250V 800mA 5X20mm UL/CSA
Fuse 250V 800mA 5X20mm SEMKO
Transformer (PT-57E25-R1)
Digital coil 015-910-27BB
