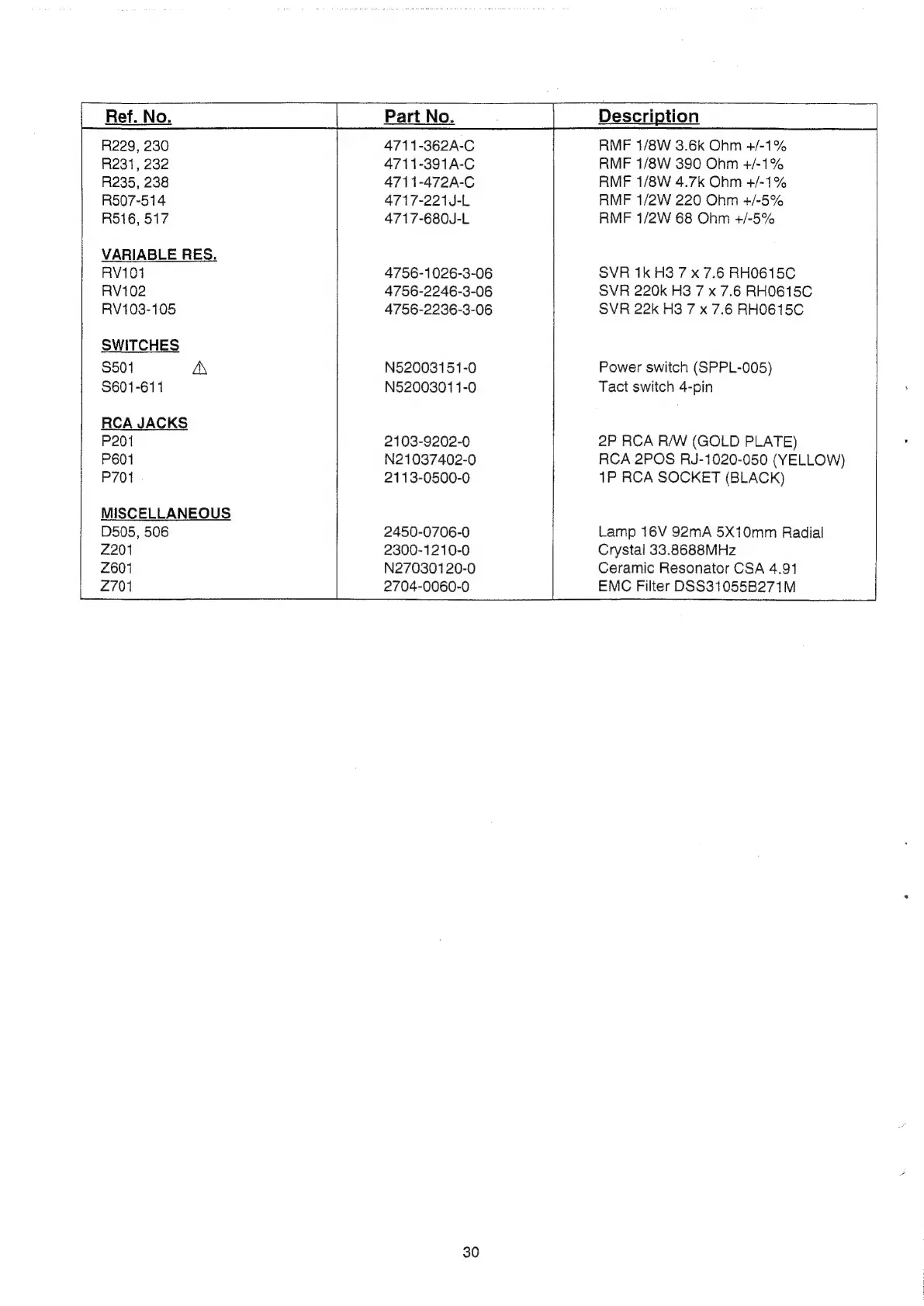

NAD 512 - Resistors and Variable Components; Switches, Jacks, and Miscellaneous

Se ee See
Ref. No. Part No. Description
R229, 230 4711-362A-C RMF 1/8W 3.6k Ohm 4/-1%
R231, 232 4711-391A-C RMF 1/8W 390 Ohm +/-1%
R235, 238 4711-472A-C RMF 1/8W 4.7k Ohm +4+/-1%
R507-514 4717-221J5-L RMF 1/2W 220 Ohm +/-5%
R516, 517 4717-680J-L RMF 1/2W 68 Ohm +/-5%
VARIABLE RES.
RV101 4756-1026-3-06 SVR 1K H3 7 x 7.6 RHO615C
RV102 4756-2246-3-06 SVR 220k H3 7 x 7.6 RHO615C
RV103-105 4756-2236-3-06 SVR 22k H3 7 x 7.6 RHO615C
SWITCHES
$501 A N52003151-0 Power switch (SPPL-005)
$601-611 N52003011-0 Tact switch 4-pin
RCA JACKS
P201 2103-9202-0 2P RCA R/W (GOLD PLATE)
P601 N21037402-0 RCA 2POS RJ-1020-050 (YELLOW)
P701 2113-0500-0 1P RCA SOCKET (BLACK)
MISCELLANEOUS
D505, 506 2450-0706-0 Lamp 16V 92mA 5X10mm Radial
Z201 2300-1210-0 Crystal 33.8688MHz
zZ601 N27030120-0 Ceramic Resonator CSA 4.91
Z701 2704-0060-0 EMC Filter DSS31055B271M
30
