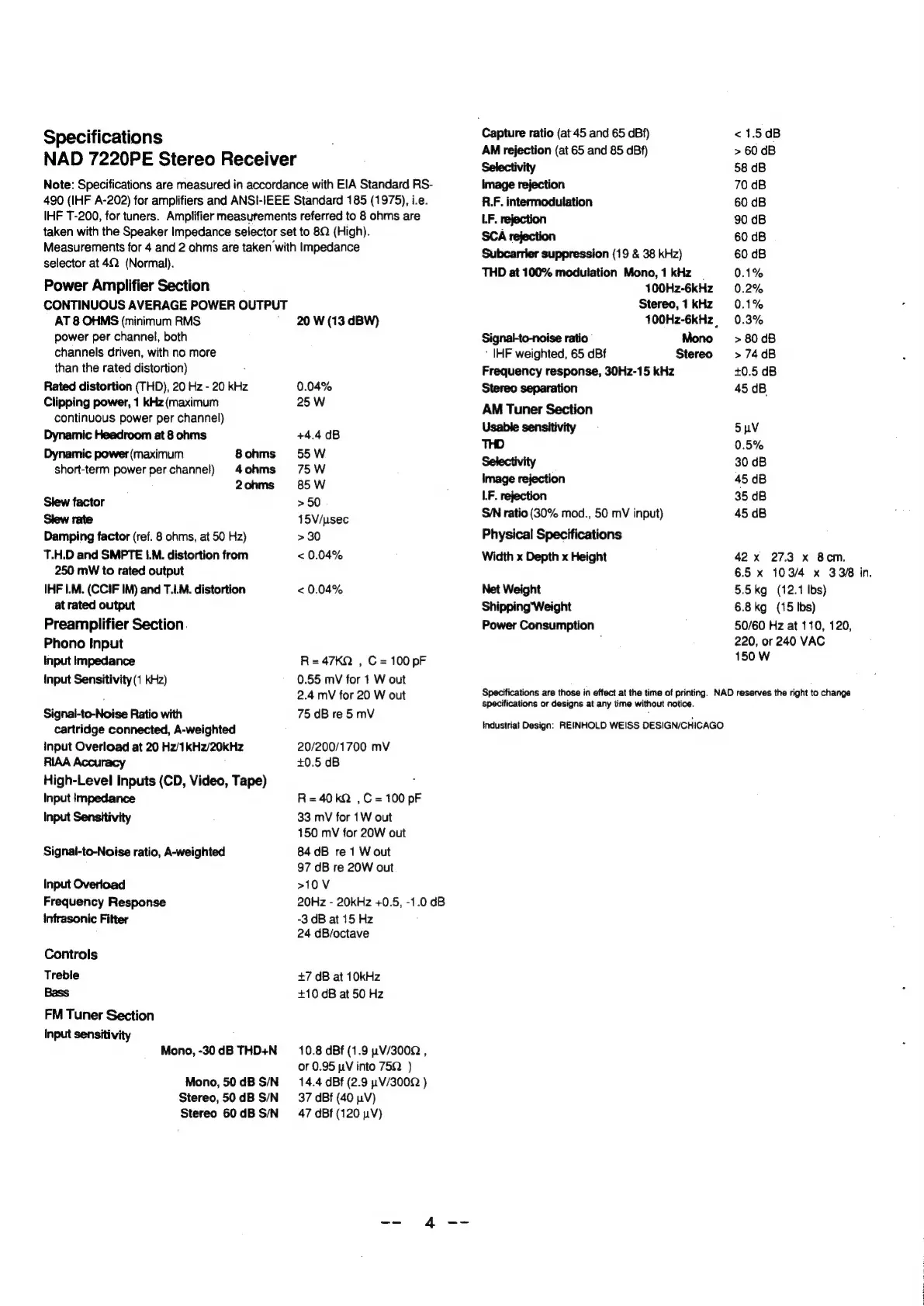

Specifications
NAD 7220PE Stereo Receiver
Note: Specifications are measured in accordance with EIA Standard RS-
490 (IHF A-202) for amplifiers and ANSI-IEEE Standard 185 (1975), i.e.
IHF T-200, for tuners. Amplifier measurements referred to 8 ohms are
taken with the Speaker Impedance selector set to 8Q (High).
Measurements for 4 and 2 ohms are taken’with Impedance
selector at 4Q (Normal).
Power Amplifier Section
CONTINUOUS AVERAGE POWER OUTPUT
AT 8 OHMS (minimum RMS
power per channel, both
channels driven, with no more
than the rated distortion) :
Rated distortion (THD), 20 Hz - 20 kHz
Clipping power, 1 kHz (maximum
continuous power per channel)
Dynamic Headroom at 8 ohms
Dynamic power (maximum 8 ohms
short-term power per channel) 4ohms
2 ohms
Slew factor
Slew rate
Damping factor (ref. 8 ohms, at 50 Hz)
T.H.D and SMPTE I.M. distortion from
250 mW to rated output
IHF |.M. (CCIF IM) and T.I.M. distortion
at rated output
Preamplifier Section.
Phono Input
Input Impedance
Input Sensitivity (1 kHz)
Signal-to-Noise Ratio with
cartridge connected, A-weighted
Input Overload at 20 H2z/1kHz/20kHz
RIAA Accuracy
High-Level Inputs (CD, Video, Tape)
Input impedance
Input Sensitivity
Signal-to-Noise ratio, A-weighted
Input Overload
Frequency Response
infrasonic Fitter
Controls
Treble
Bass
FM Tuner Section
Input sensitivity
Mono, -30 dB THD+N
Mono, 50 dB S/N
Stereo, 50 dB S/N
Stereo 60 dB S/N
20 W (13 dBW)
0.04%
25 W
+4.4dB
55W
75W
85 W
> 50
15V/usec
> 30
< 0.04%
< 0.04%
R=47KQ , C= 100 pF
0.55 mV for 1 W out
2.4 mV for 20 W out
75 dB re 5 mV
20/200/1700 mV
+0.5 dB
R=40kQ ,C = 100 pF
33 mV for 1W out
150 mV for 20W out
84 dB re 1 Wout
97 dB re 20W out
>10V
20Hz - 20kHz +0.5, -1.0 dB
-3 dB at 15 Hz
24 dB/octave
+7 dB at 10kHz
+10 dB at 50 Hz
10.8 dBf (1.9 nV/3002 ,
or 0.95 pV into 75Q )
14.4 dBf (2.9 pn V/3002 )
37 Bf (40 pV)
47 dBf (120 pV)
Capture ratio (at 45 and 65 dBf)
AM rejection (at 65 and 85 dBf)
Selectivity
Image rejection
R.F. intermodulation
LF. rejection
SCA rejection
Subcarrier suppression (19 & 38 kHz)
THD at 100% modulation Mono, 1kHz |
100Hz-6kHz
Stereo, 1 kHz
100Hz-6kHz,
Signal-to-noise ratio Mono
‘ IHF weighted, 65 dBf Stereo
Frequency response, 30Hz-15 kHz
Stereo separation
AM Tuner Section
Usable sensitivity
THD
Selectivity
Image rejection
LF. rejection
SIN ratio (30% mod., 50 mV input)
Physical Specifications
Width x Depth x Height
Net Weight
ShippingWeight
Power Consumption
< 1.5 dB
> 60 dB
58 dB
70 dB
60 dB
90 dB
60 dB
60 dB
0.1%
0.2%
0.1%
0.3%
> 80 dB
> 74dB
+0.5 dB
45 dB
5yVv
0.5%
30 dB
45 dB
35 dB
45 dB
42 x 27.3 x 8cm.
6.5 x 103/4 x 334 in.
5.5kg (12.1 lbs)
6.8 kg (15 Ibs)
50/60 Hz at 110, 120,
220, or 240 VAC
150 W
Specifications are those in effect at the time of printing. NAD reserves the right to change
Specifications or designs at any time without notice.
Industrial Design: REINHOLD WEISS DESIGN/CHICAGO
