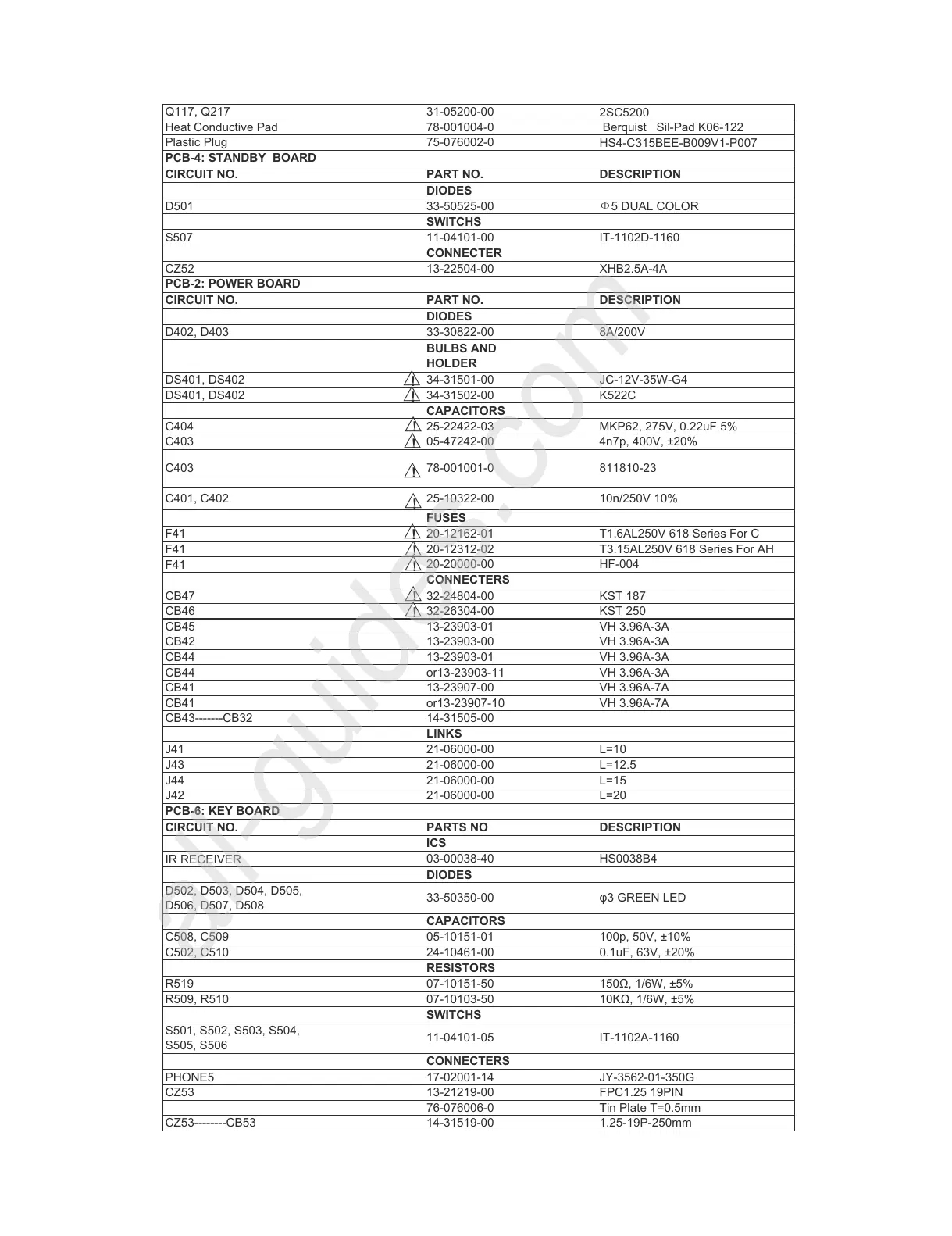

NAD C 315BEE - Other Board Components: Diodes, Capacitors, Switches

Q117, Q217 31-05200-00
2SC5200
Heat Conductive Pad 78-001004-0
Berquist Sil-Pad K06-122
Plastic Plug 75-076002-0
HS4-C315BEE-B009V1-P007
CIRCUIT NO. PART NO. DESCRIPTION
DIODES
D501 33-50525-00
5 DUAL COLOR
SWITCHS
S507 11-04101-00 IT-1102D-1160
CONNECTER
CZ52 13-22504-00 XHB2.5A-4A
CIRCUIT NO. PART NO. DESCRIPTION
DIODES
D402, D403 33-30822-00 8A/200V
BULBS AND
HOLDER
DS401, DS402 34-31501-00 JC-12V-35W-G4
DS401, DS402 34-31502-00 K522C
CAPACITORS
C404 25-22422-03 MKP62, 275V, 0.22uF 5%
C403 05-47242-00 4n7p, 400V, ±20%
C403 78-001001-0 811810-23
C401, C402 25-10322-00 10n/250V 10%
FUSES
F41 20-12162-01 T1.6AL250V 618 Series For C
F41 20-12312-02 T3.15AL250V 618 Series For AH
F41
20-20000-00 HF-004
CONNECTERS
CB47 32-24804-00 KST 187
CB46 32-26304-00 KST 250
CB45 13-23903-01 VH 3.96A-3A
CB42 13-23903-00 VH 3.96A-3A
CB44 13-23903-01 VH 3.96A-3A
CB44 or13-23903-11 VH 3.96A-3A
CB41 13-23907-00 VH 3.96A-7A
CB41 or13-23907-10 VH 3.96A-7A
CB43-------CB32 14-31505-00
LINKS
J41 21-06000-00 L=10
J43 21-06000-00 L=12.5
J44 21-06000-00 L=15
J42 21-06000-00 L=20
CIRCUIT NO. PARTS NO DESCRIPTION
ICS
IR RECEIVER
03-00038-40 HS0038B4
DIODES
D502, D503, D504, D505,
D506, D507, D508
33-50350-00 φ3 GREEN LED
CAPACITORS
C508, C509 05-10151-01 100p, 50V, ±10%
C502, C510 24-10461-00 0.1uF, 63V, ±20%
RESISTORS
R519 07-10151-50 150Ω, 1/6W, ±5%
R509, R510 07-10103-50 10KΩ, 1/6W, ±5%
SWITCHS
S501, S502, S503, S504,
S505, S506
11-04101-05 IT-1102A-1160
CONNECTERS
PHONE5 17-02001-14 JY-3562-01-350G
CZ53 13-21219-00 FPC1.25 19PIN
76-076006-0 Tin Plate T=0.5mm
CZ53--------CB53 14-31519-00 1.25-19P-250mm
PCB-6: KEY BOARD
PCB-4: STANDBY BOARD
PCB-2: POWER BOARD
