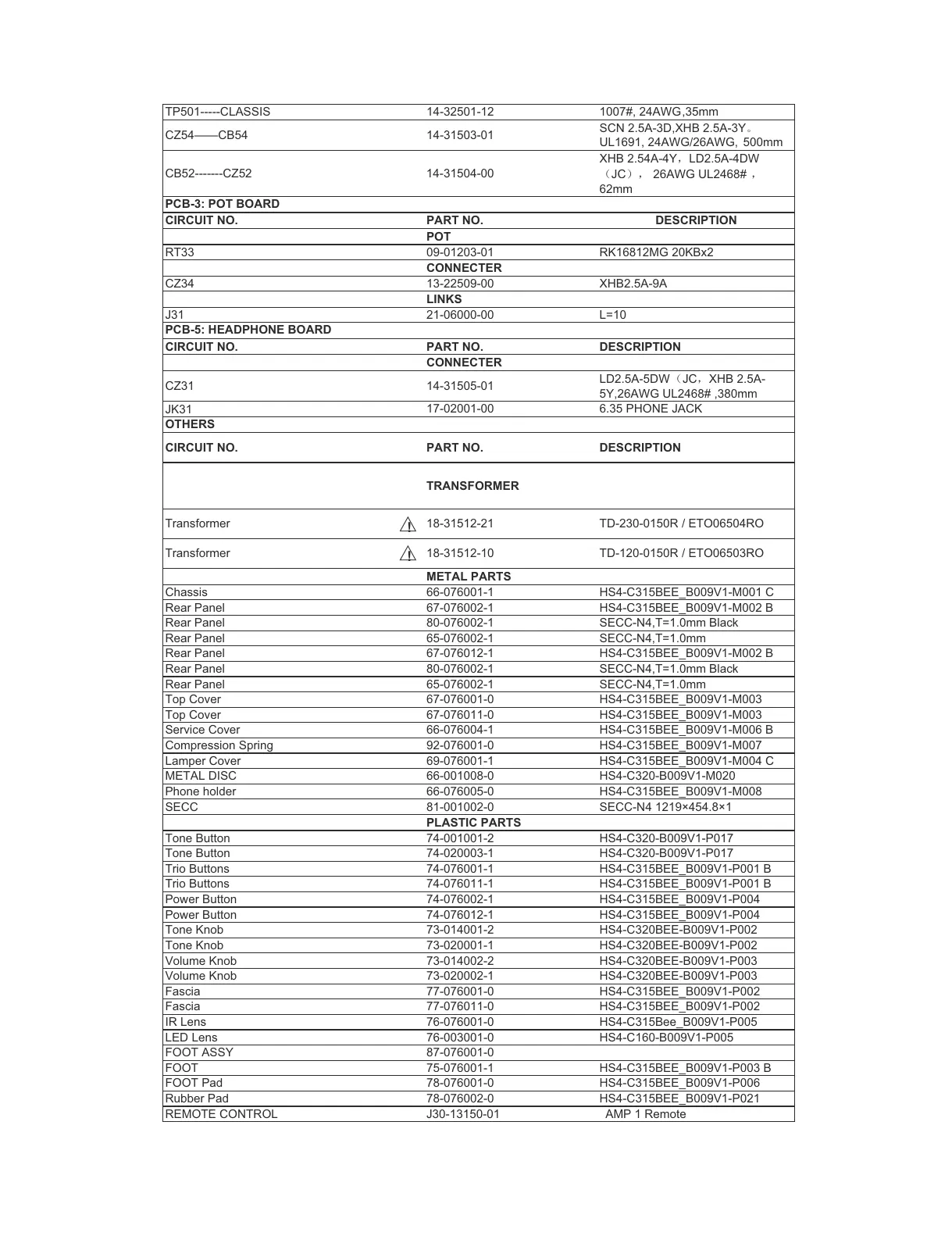

NAD C 315BEE - Transformer, Metal, and Plastic Parts

TP501-----CLASSIS 14-32501-12 1007#, 24AWG,35mm
CZ54——CB54 14-31503-01
SCN 2.5A-3D,XHB 2.5A-3YDŽ
UL1691, 24AWG/26AWG, 500mm
CB52-------CZ52 14-31504-00
XHB 2.54A-4YˈLD2.5A-4DW
˄JC˅ˈ 26AWG UL2468# ˈ
62mm
CIRCUIT NO. PART NO. DESCRIPTION
POT
RT33 09-01203-01 RK16812MG 20KBx2
CONNECTER
CZ34 13-22509-00 XHB2.5A-9A
LINKS
J31 21-06000-00 L=10
CIRCUIT NO. PART NO. DESCRIPTION
CONNECTER
CZ31 14-31505-01
LD2.5A-5DW˄JCˈXHB 2.5A-
5Y,26AWG UL2468# ,380mm
JK31
17-02001-00 6.35 PHONE JACK
CIRCUIT NO. PART NO. DESCRIPTION
TRANSFORMER
Transformer 18-31512-21 TD-230-0150R / ETO06504RO
Transformer 18-31512-10 TD-120-0150R / ETO06503RO
METAL PARTS
Chassis 66-076001-1 HS4-C315BEE_B009V1-M001 C
Rear Panel 67-076002-1 HS4-C315BEE_B009V1-M002 B
Rear Panel 80-076002-1 SECC-N4,T=1.0mm Black
Rear Panel 65-076002-1 SECC-N4,T=1.0mm
Rear Panel 67-076012-1 HS4-C315BEE_B009V1-M002 B
Rear Panel 80-076002-1 SECC-N4,T=1.0mm Black
Rear Panel 65-076002-1 SECC-N4,T=1.0mm
Top Cover 67-076001-0 HS4-C315BEE_B009V1-M003
Top Cover 67-076011-0 HS4-C315BEE_B009V1-M003
Service Cover 66-076004-1 HS4-C315BEE_B009V1-M006 B
Compression Spring 92-076001-0 HS4-C315BEE_B009V1-M007
Lamper Cover 69-076001-1 HS4-C315BEE_B009V1-M004 C
METAL DISC 66-001008-0 HS4-C320-B009V1-M020
Phone holder 66-076005-0 HS4-C315BEE_B009V1-M008
SECC 81-001002-0 SECC-N4 1219×454.8×1
PLASTIC PARTS
Tone Button 74-001001-2 HS4-C320-B009V1-P017
Tone Button 74-020003-1 HS4-C320-B009V1-P017
Trio Buttons 74-076001-1 HS4-C315BEE_B009V1-P001 B
Trio Buttons 74-076011-1 HS4-C315BEE_B009V1-P001 B
Power Button 74-076002-1 HS4-C315BEE_B009V1-P004
Power Button 74-076012-1 HS4-C315BEE_B009V1-P004
Tone Knob 73-014001-2 HS4-C320BEE-B009V1-P002
Tone Knob 73-020001-1 HS4-C320BEE-B009V1-P002
Volume Knob 73-014002-2 HS4-C320BEE-B009V1-P003
Volume Knob 73-020002-1 HS4-C320BEE-B009V1-P003
Fascia 77-076001-0 HS4-C315BEE_B009V1-P002
Fascia 77-076011-0 HS4-C315BEE_B009V1-P002
IR Lens 76-076001-0 HS4-C315Bee_B009V1-P005
LED Lens 76-003001-0 HS4-C160-B009V1-P005
FOOT ASSY 87-076001-0
FOOT 75-076001-1 HS4-C315BEE_B009V1-P003 B
FOOT Pad 78-076001-0 HS4-C315BEE_B009V1-P006
Rubber Pad 78-076002-0 HS4-C315BEE_B009V1-P021
REMOTE CONTROL J30-13150-01 AMP 1 Remote
PCB-3: POT BOARD
PCB-5: HEADPHONE BOARD
OTHERS
Ƹ
!
Ƹ
!
